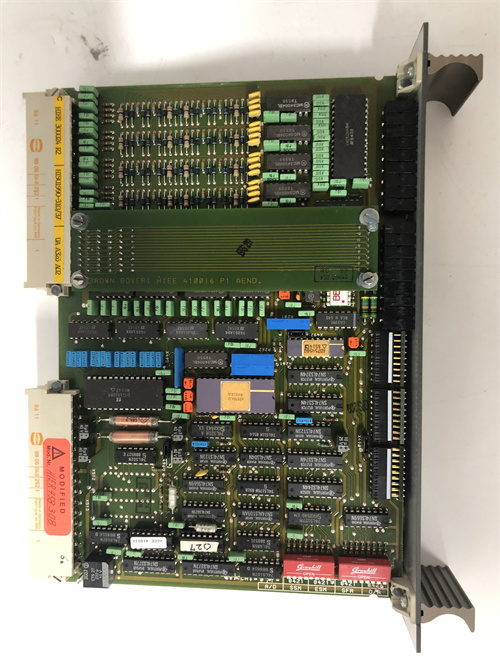

ABB UAA326A04

Description

Product Overview

The ABB UAA326A04 is a specialized Relay Unit or Signal Interface Module designed for use within ABB’s industrial control and protection systems. This module serves as an interface between low-voltage logic-level control signals and external high-power circuits or other systems, providing electrical isolation, signal conversion, and multiple relay outputs. The primary function of the ABB UAA326A04 is to accept control commands from a PLC, DCS, or protection relay and use internal electromechanical or solid-state relays to switch auxiliary AC/DC voltages, activate alarms, or provide status feedback. For detailed technical data sheets, wiring diagrams, and application notes, please visit the official product resource: ABB UAA326A04. This module is a key component for building reliable interposing and interface circuits in motor control centers (MCCs), protection panels, and automation systems, ensuring safe and robust signal translation.

Product Parameters and Specifications

• Function: Multi-Channel Relay / Interface Module.
• Relay Configuration: Typically contains multiple Form C (SPDT – Single Pole Double Throw) relay contacts, often in a configuration such as 2, 4, or 6 changeover contacts. The “A04” suffix may indicate the specific contact arrangement.
• Coil Voltage: The internal relay coils are designed for a standard control voltage, commonly 24V DC, 48V DC, 110V AC, or 230V AC, which must be specified when ordering.
• Contact Rating: The relay contacts are rated for switching specific loads. Common ratings are for 5A or 10A at 250V AC (resistive), suitable for controlling contactor coils, solenoid valves, indicators, and alarm horns.
• Isolation: Provides galvanic isolation between the control circuit (coil) and the switched load circuit (contacts), a critical safety feature.
• Status Indication: Often includes LED indicators for each relay to show the energized/de-energized state.
• Mounting: Designed for DIN rail mounting (TS35) for easy installation in control cabinets.
• Termination: Uses screw terminals for both control voltage input and load connections.
• Housing: Encased in a transparent or opaque plastic housing for safety and visibility.

Advantages and Key Features

The ABB UAA326A04 offers several key advantages for system design. Its primary benefit is providing safe and reliable signal isolation and amplification, allowing a low-power controller to safely command higher-power field devices without electrical interference. The use of multiple Form C contacts provides great flexibility; each channel can be used as a normally open (NO), normally closed (NC), or break-before-make switching element. The module’s robust electromechanical relay design ensures long life and reliable switching of inductive loads common in industrial environments (e.g., contactor and solenoid coils). Its DIN rail mounting and clear terminal labeling simplify installation, maintenance, and troubleshooting. As a standardized ABB component, the UAA326A04 ensures high quality, compatibility with ABB systems, and global availability of spares.

Application Cases in Industry

This interface relay is used across all industries for general-purpose interposing and signaling. In a Motor Control Center (MCC), the UAA326A04 might be used to convert a 24V DC PLC output into a 230V AC signal to energize a motor contactor’s coil, or to provide auxiliary contacts for remote status indication. Within a Process Plant, it could be used to activate alarm annunciators or to provide isolated dry contacts from a safety relay to the plant DCS. For Building Automation, it might control lighting or fan circuits based on commands from a building management system. It is a universal solution for any application requiring voltage level shifting, isolation, or contact multiplication.

Comparison with Competing Products

• vs. PLC Digital Output Modules: A PLC’s built-in relay output module offers similar functionality but is integrated into the PLC. The UAA326A04 is a decentralized, dedicated interface that can be located closer to the load, reducing long control wire runs. It also provides an extra layer of isolation and can be easily replaced without affecting the PLC.
• vs. Generic Relay Banks: A panel builder could assemble individual relays and terminals. The ABB UAA326A04 provides a pre-assembled, compact, and tested unit with standardized mounting and labeling, saving engineering and assembly time while improving reliability and appearance.
• vs. Solid-State Relays (SSRs): SSRs offer faster switching and longer life for high-cycle applications. The UAA326A04 electromechanical relay is better suited for applications with high inrush currents (like contactor coils) and provides a physically visible indication of state. It also has a lower off-state leakage current.

Selection Suggestions and Precautions

• Selection Advice:
  1. Coil Voltage Match: Critically important. Specify the ABB UAA326A04 with the coil voltage that matches your control system’s voltage (e.g., 24V DC from the PLC power supply). Applying the wrong voltage will prevent operation or destroy the coil.
  2. Load Analysis: Check the inrush and steady-state current of the device you are controlling (e.g., a contactor coil). Ensure the relay’s contact rating exceeds these values with a safety margin. For inductive loads, derate the contact current or use an RC snubber.
  3. Number of Contacts Needed: Verify that the number of Form C contacts in the module meets your application requirements for both control and status feedback.
  4. Environmental Conditions: For high-vibration environments, ensure the relay’s mechanical construction is suitable or consider an SSR alternative.
• Important Precautions:
  1. Flyback Protection for Inductive Loads: Always use a flyback diode (for DC coils) or an RC snubber/Varistor (for AC coils) across the terminals of the inductive load (e.g., the contactor coil) to suppress voltage spikes generated when the UAA326A04 relay de-energizes. These spikes can greatly shorten the relay’s contact life.
  2. Fusing: Protect each output circuit with an appropriately rated fuse to protect the relay contacts from a short-circuit fault in the field wiring or load.
  3. Torque on Terminals: Use the specified torque when tightening screw terminals to ensure a good connection without damaging the terminal.
  4. Mechanical Life vs. Electrical Life: Be aware of the relay’s rated mechanical life (number of operations) and electrical life (number of operations at rated load). Exceeding the electrical load significantly reduces the usable life.
