Description

Product Name

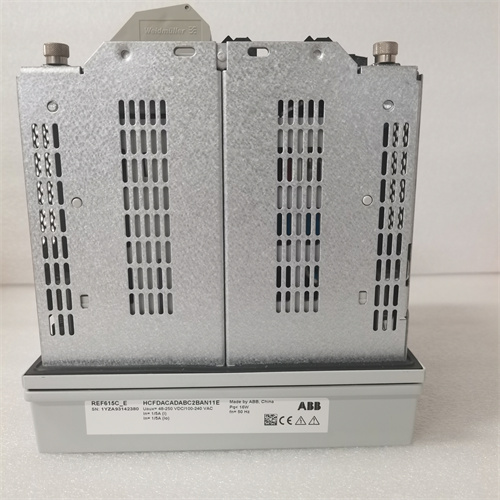

ABB REF615C E HCFDACADABC2BAN11E

Product Description

The ABB REF615C E HCFDACADABC2BAN11E is an advanced protection relay designed for the protection and control of medium voltage electrical equipment. This relay provides comprehensive protection for generators, transformers, and lines. It is ideal for applications requiring reliability and high accuracy in fault detection and operational monitoring. The REF615C series integrates various functionalities that enhance the efficiency of electrical systems while ensuring safety and compliance with international standards.

Product Specifications

• ABB+REF615C_E HCFDACADABC2BAN11E
• Voltage Rating: Up to 1000 V
• Current Rating: 5A, 1A
• Protection Functions: Overcurrent, earth fault, distance protection, etc.
• Communication Protocols: IEC 61850, Modbus
• Dimensions: 300 mm x 400 mm x 200 mm
• Operating Temperature: -40°C to +70°C
• Mounting Type: Panel mount

Advantages and Features

The ABB REF615C E HCFDACADABC2BAN11E offers several advantages that set it apart from other protection relays. Key features include:

• Advanced Protection Functions: Multiple protection functions ensure comprehensive monitoring of electrical systems.
• User-Friendly Interface: An intuitive interface enables easy operation and configuration.
• Integrated Communication Capabilities: Support for modern communication protocols like IEC 61850 facilitates integration into smart grid applications.
• Modular Design: The modular architecture allows for easy upgrades and maintenance without major system disruptions.
• High Reliability: Designed to withstand harsh environmental conditions and deliver consistent performance over a long lifespan.

Application Fields

The ABB REF615C E HCFDACADABC2BAN11E finds applications in various sectors, including:

• Energy and Utilities
• Industrial Automation
• Renewable Energy (Wind and Solar Farms)
• Transportation (Railway and Metro Systems)
• Infrastructure (Water Treatment Plants, Data Centers)

Application Cases

In a recent case study, a utility company implemented the ABB REF615C E HCFDACADABC2BAN11E for its substations. This resulted in a significant reduction in fault detection times and improved overall system reliability. Additionally, the effective communication capabilities of this relay allowed for seamless integration with the existing control systems, enhancing operational efficiency.

Competitor Comparison

When comparing the ABB REF615C E HCFDACADABC2BAN11E with competitors like Schneider Electric’s Micom P40 and Siemens’ 7SJ800 series, the REF615C stands out due to its comprehensive protection features and user-friendly design. The integrated communication capabilities of the ABB REF615C also provide an advantage in modern smart grid environments, where seamless data sharing and network integration are crucial.

Selection Advice

When choosing a protection relay, consider the following factors:

• System Requirements: Assess the specific protection and monitoring needs of your electrical system.
• Scalability: Opt for a relay that can grow with your system, like the ABB REF615C E HCFDACADABC2BAN11E.
• Environmental Conditions: Ensure the relay can withstand the conditions in which it will operate, taking into account temperature, humidity, and potential exposure to contaminants.
• Support and Service: Choose a manufacturer known for strong customer support, such as ABB.

Precautions

When using the ABB REF615C E HCFDACADABC2BAN11E, ensure the following precautions are taken:

• Regularly update software and firmware to enhance performance and security.
• Conduct routine maintenance checks to verify the relay’s functioning and accuracy.
• Follow installation guidelines meticulously to prevent operational issues.

We are your trusted partner. We provide the ABB REF615C E HCFDACADABC2BAN11E and other automation spare parts with sales and technical support. Enjoy special discounted prices by contacting us; we are dedicated to serving you.
