ABB+REF615C-D REF615C_C

Description

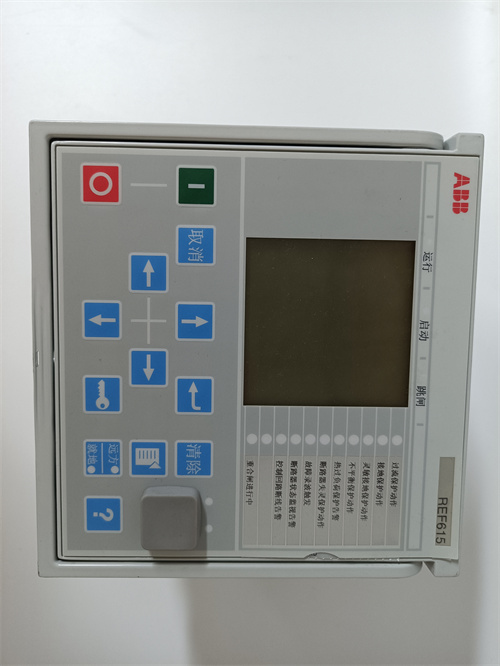

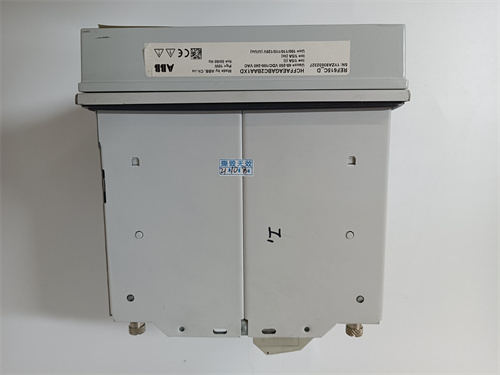

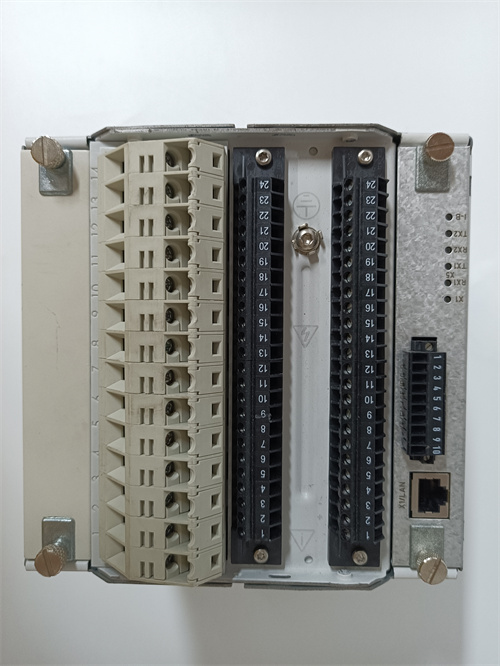

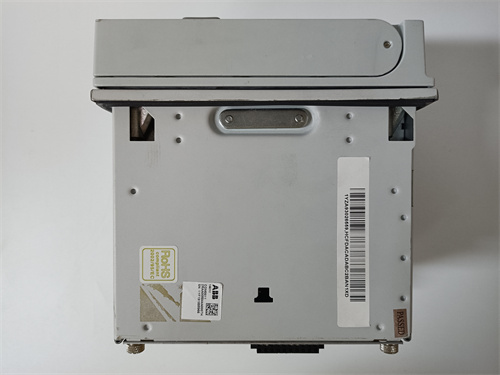

Product Name: REF615C-D

Product Description

The REF615C-D is a state-of-the-art protection relay designed for medium voltage applications. Manufactured by ABB, the REF615C-D offers comprehensive protection, control, and monitoring capabilities for electrical networks. This device is equipped with advanced features such as adaptive protection, comprehensive communication options, and user-friendly interfaces, making it an ideal choice for modern electrical systems.

Product Parameters

• Voltage Range: 100-240 V AC/DC
• Frequency: 50/60 Hz
• Measured Current: Up to 7 A
• Protection Functions: Overcurrent, Earth Fault, Voltage, Frequency, and more
• Communication Protocols: IEC 61850, Modbus, DNP3
• Dimensions: 144 x 144 x 140 mm
• Weight: 1.2 kg

Advantages and Features

The REF615C-D stands out due to its multitude of features:

• Comprehensive Protection: Offers multiple protection functions to enhance electrical system reliability.
• User-Friendly Interface: The intuitive HMI allows easy access to settings and diagnostics.
• Flexible Communication: Supports various protocols, ensuring seamless integration with existing systems.
• Compact Design: The small footprint makes it suitable for tight installations.
• Adaptive Protection Settings: The ability to adjust settings based on real-time conditions enhances system resilience.

Application Areas and Case Studies

The REF615C-D is widely used in:

• Power Distribution Systems: Ensuring reliability in transformers and substations.
• Renewable Energy: Protecting solar and wind installations against faults.
• Industrial Automation: Safeguarding critical machinery and processes in manufacturing.

A notable case study involved a utility company using the REF615C-D to upgrade their aging infrastructure, which resulted in a significant reduction in downtime and maintenance costs.

Competitive Product Comparison

Compared to similar products like Siemens’ 7SJ63 and Schneider Electric’s Sepam series, the REF615C-D offers:

• More extensive protection functions.
• Better communication features, particularly with IEC 61850 compliance.
• Enhanced user interface for simplified operational management.

Selection Recommendations

When selecting the REF615C-D, consider the following:

• Ensure compatibility with existing communication protocols in your system.
• Evaluate the specific protection functions required for your application.
• Assess the installation space to confirm the compact dimensions suit your needs.

Notes

When using the REF615C-D, it’s crucial to follow installation guidelines and regularly update firmware to maintain optimal functionality. Regular testing and maintenance contribute to long-term reliability.

We are your trusted partner, providing the REF615C-D and other automation spare parts sales and technical support. Enjoy special discounted prices. Please contact us, and we will serve you wholeheartedly.
