ABB+REF542PLUS REF542

Description

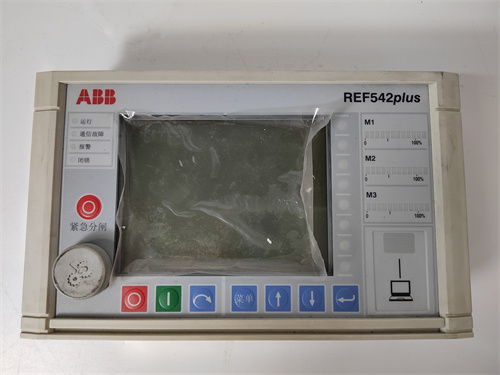

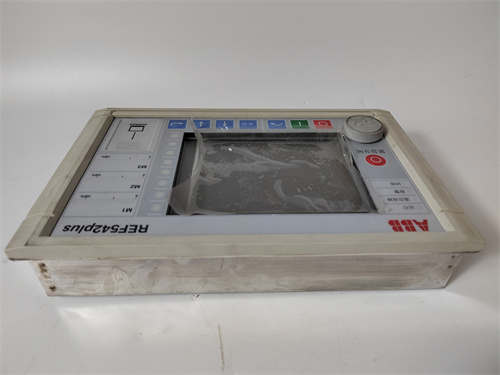

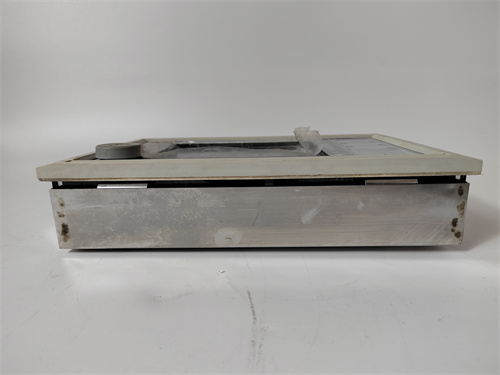

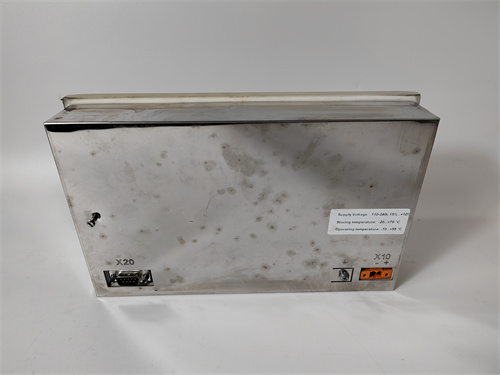

Product Name: ABB REF542PLUS

Product Description

The ABB REF542PLUS is a state-of-the-art protection and control relay designed for medium voltage applications. Integrated with advanced technology, the REF542PLUS relay offers robust features for reliable performance in protecting transformers, feeders, and other critical equipment. It seamlessly provides comprehensive protection, control, measurement, and monitoring capabilities. Users can benefit from its high-level communication capabilities, ensuring that the ABB REF542PLUS can easily be integrated into various automation systems.

Product Parameters

• Power Supply Voltage: 48-250 V DC, 40-230 V AC
• Measurements: Voltage, current, power, energy, frequency
• Communication Ports: Ethernet, IEC 61850, and legacy protocols
• Protection Functions: Overcurrent, earth fault, transformer protection and control
• User Interface: LCD display, LEDs for status indication
• Dimensions: Suitable for standard panel mount

Advantages and Features

• Versatile Protection: The ABB REF542PLUS supports a comprehensive range of protection functions that can be tailored to specific applications.
• User-Friendly Interface: The relay features an intuitive user interface that simplifies configuration and operation.
• Robust Communication Options: Equipped with modern communication protocols, it allows for seamless integration into utility automation systems.
• High Reliability and Performance: Designed for harsh environments, the REF542PLUS delivers exceptional reliability and long-term performance.
• Scalability: The modular design supports future upgrades and expansions.

Application Areas

The ABB REF542PLUS is ideal for various applications, including:

• Distribution Networks: Provides reliable protection for medium voltage distribution networks.
• Substation Automation: Integrates into smart substations for remote monitoring and control.
• Industrial Facilities: Protects critical equipment in manufacturing plants and other industrial settings.

Application Cases

1. Utility Substations: Implemented in substations to enhance operational efficiency and reliability through smart monitoring and protection solutions.
2. Renewable Energy: Used in wind and solar farms for real-time monitoring and protection of energy conversion systems.

Competitive Comparison

When comparing the ABB REF542PLUS to similar products in the market, such as Schneider Electric’s Sepam Series, ABB’s offering provides more advanced communication features and a broader range of protection functions. Additionally, the intuitive user interface of the REF542PLUS simplifies the configuration process compared to other products.

Selection Recommendations

When choosing a protection relay like the ABB REF542PLUS, consider the following:

• Application Demands: Evaluate the specific protection needs of your system.
• Communication Requirements: Ensure compatibility with existing automation systems.
• Future Scalability: Choose a product that can accommodate future expansion or technology upgrades.

Precautions

• Conduct thorough testing after installation to ensure proper functionality.
• Be familiar with the user manual for safe and effective operation.
• Regularly update software to leverage the latest features and security measures.

We are your trusted partner. We provide sales and technical support for products like ABB REF542PLUS and other automation spare parts. Contact us for special discount prices, and we will be dedicated to serving you.
