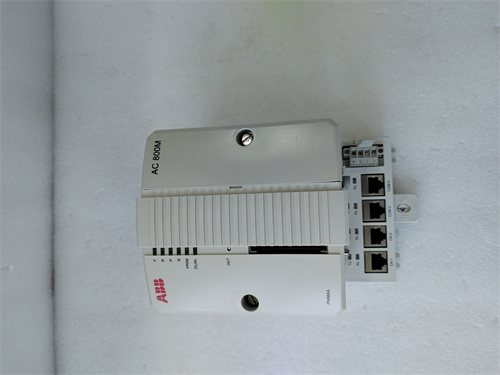

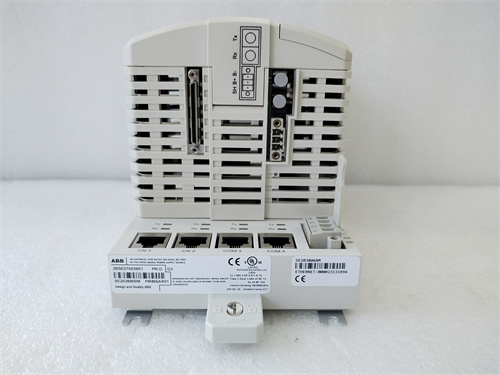

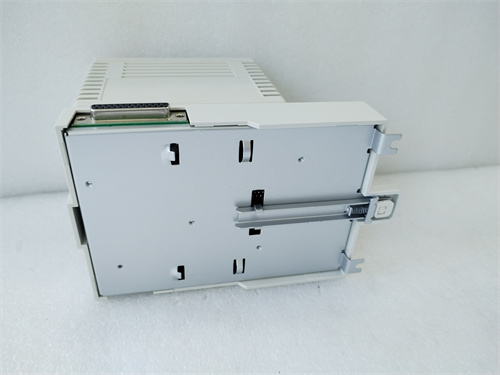

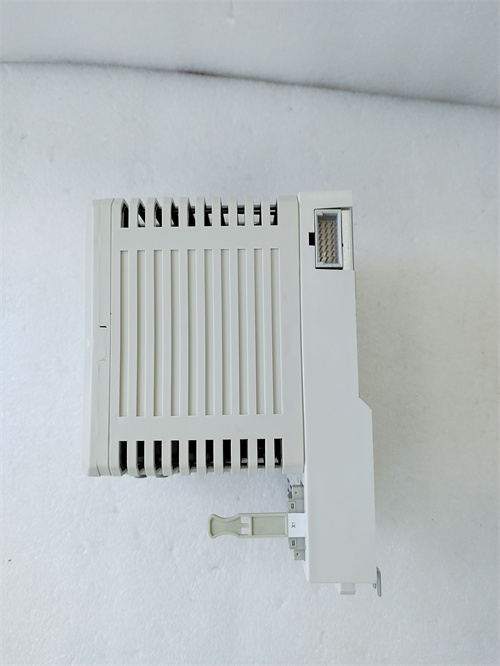

ABB+PM866AK01 PM866AK02 PM861AK01

Description

The ABB PM866AK01, PM866AK02, and PM861AK01 are part of ABB’s range of automation and control products, primarily used in their S800 and AC500 control systems.

Product Names

• ABB PM866AK01
• ABB PM866AK02
• ABB PM861AK01

Product Description

• PM866AK01: This is a high-performance, dedicated CPU module designed for process automation and control applications. It supports advanced communication capabilities and is optimized for high speed and performance.
• PM866AK02: Similar to the PM866AK01, this module offers additional features or an upgraded configuration, providing enhanced processing capabilities and communication options.
• PM861AK01: This is a more standard version of a process control CPU module that provides reliable performance for a variety of control applications without some of the advanced features found in the PM866 series.

Product Parameters and Specifications

• General Parameters:
  • Supply Voltage: Typically 24V DC
  • Current Consumption: Varies by module but typically in a range suitable for standard control systems.
  • Operating Temperature: Generally from -20°C to +60°C, designed for industrial environments.
• Communication Interfaces:
  • Support for various fieldbuses (e.g., Modbus, Profibus, etc.)
  • Ethernet interfaces for integration into enterprise networks.
• Memory:
  • Sufficient onboard memory to store programs, configurations, and data logs.
• Performance:
  • Processor speed designed for real-time control applications, typically measured in MHz.

Product Use

These modules are used in various industrial automation applications, including but not limited to:

• Process Control: Managing and controlling processes in manufacturing, oil and gas, pharmaceuticals, and other heavy industries.
• Data Acquisition: Collecting data from sensors and other devices to monitor system performance and health.
• Communication Management: Facilitating communication between different parts of a control system or between systems (e.g., HMI, SCADA).
• PID Control: Implementing control algorithms for temperature, pressure, speed, and other process variables.
