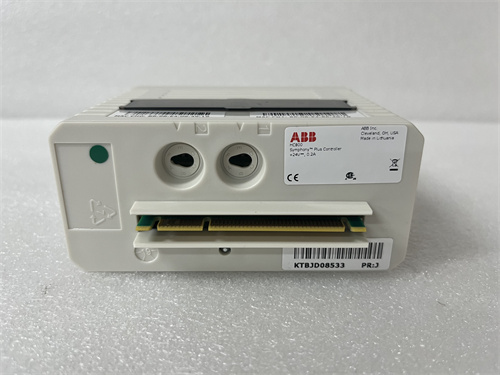

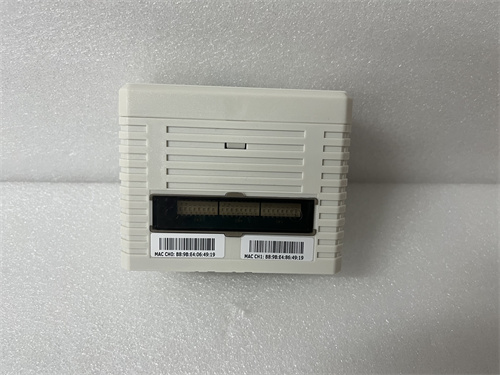

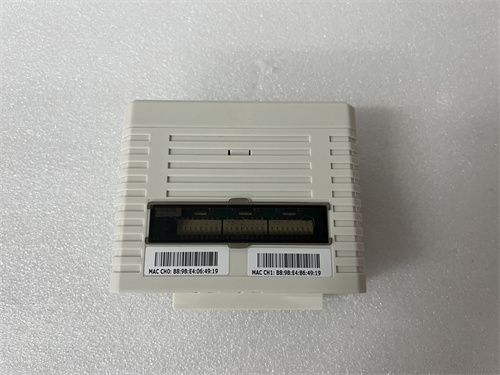

ABB HC800

Description

Product Description

Product Parameters

Advantages and Features

1. Dual-Core Processing Power for High-Speed Control

   The ABB HC800’s dual-core industrial processor delivers fast instruction execution and parallel processing capabilities, enabling real-time regulation of multi-variable processes (e.g., chemical batch reactions, continuous manufacturing lines) with minimal latency—improving process stability by up to 30%.

2. Native Hot Standby Redundancy for Maximum Uptime

   Equipped with 1:1 hot standby redundancy support, the ABB HC800 achieves seamless switchover between active and standby units in under 10 ms, ensuring zero process disruption during hardware faults, firmware upgrades, or routine maintenance—critical for mission-critical applications like power plant boiler control and oil pipeline monitoring.

3. Multi-Protocol Connectivity for Interoperability

   Supporting Profibus DP, Modbus TCP/RTU, Ethernet/IP, and OPC UA, the ABB HC800 integrates seamlessly with third-party devices and upper-level SCADA systems, eliminating the need for additional protocol converters and reducing system complexity by 25%.

4. Scalable Memory for Flexible System Expansion

   With scalable RAM (1 GB to 2 GB) and 4 GB flash memory, the ABB HC800 accommodates growing process control requirements, supporting the addition of new I/O points, control loops, and advanced algorithms without hardware replacement.

5. User-Friendly Configuration & Diagnostics

   Compatible with ABB’s Freelance Engineering software, the ABB HC800 enables drag-and-drop programming, remote diagnostics, and real-time performance monitoring—reducing commissioning time by 40% and simplifying maintenance workflows for on-site teams.

Application Cases in Application Fields

1. Chemical Plant Batch Reaction Control

   A specialty chemical manufacturer deploys the ABB HC800 to manage 128 PID control loops across 10 batch reactors, regulating temperature, pressure, and raw material dosing. Its dual-core processing ensures synchronized execution of reaction sequences, while redundancy prevents costly production shutdowns during module maintenance—improving batch consistency by 22%.

2. Municipal Water Treatment Plant Automation

   A large municipal water treatment facility uses the ABB HC800 to control coagulation, sedimentation, filtration, and disinfection processes. Its multi-protocol connectivity integrates with flow meters, pH sensors, and chlorine dosing systems, enabling real-time data transmission to the city’s SCADA platform—reducing water treatment costs by 15% and ensuring compliance with drinking water standards.

3. Automotive Assembly Line Control

   An automotive plant leverages the ABB HC800 to synchronize robotic welding cells, conveyor systems, and quality inspection stations. Its high-speed processing minimizes line cycle time, while redundancy ensures uninterrupted production during peak demand periods—increasing daily vehicle output by 18%.

4. Solar Power Plant Inverter Control

   A utility-scale solar power plant deploys the ABB HC800 to monitor and control 500+ solar inverters, optimizing power output based on sunlight intensity and grid demand. Its rugged design withstands outdoor temperature fluctuations, while OPC UA connectivity enables seamless integration with the grid management system—improving plant energy efficiency by 10%.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Prioritize for ABB Freelance DCS Integration

   Choose the ABB HC800 if your facility operates an ABB Freelance DCS; its native compatibility eliminates adapter costs and ensures seamless communication with Freelance I/O modules and engineering tools.

2. Opt for Mission-Critical High-Redundancy Applications

   Select the ABB HC800 for processes where downtime incurs significant financial losses (e.g., chemical batch production, automotive assembly), leveraging its fast hot standby switchover to maximize system uptime.

3. Match with Scalable Automation Projects

   Verify that your application requires future expansion of I/O points or control loops; the ABB HC800’s scalable memory supports system growth without full hardware replacement.

Precautions

1. Redundancy Configuration Best Practices

   When setting up ABB HC800 hot standby redundancy, ensure both active and standby units run identical firmware versions and program configurations to enable seamless switchover without process disruption.

2. Wiring and Grounding Requirements

   Use shielded twisted-pair cables for all communication ports of the ABB HC800 to minimize EMI interference; implement a dedicated low-resistance grounding system to prevent ground loops and signal distortion.

3. Software Compatibility Check

   Use only ABB-approved Freelance Engineering software versions (v9.0 or higher) to program the ABB HC800; outdated software may disable advanced features such as OPC UA connectivity or redundancy.

4. Storage Conditions

   Store spare ABB HC800 modules in a dry, temperature-controlled environment (0°C to +30°C) with relative humidity below 85% to prevent component corrosion and extend shelf life.
