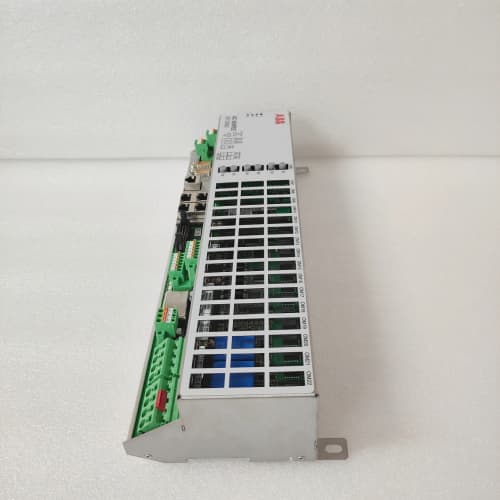

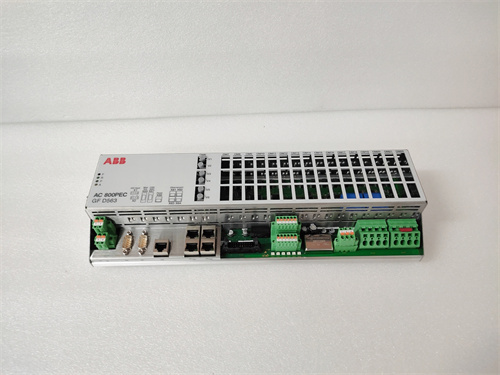

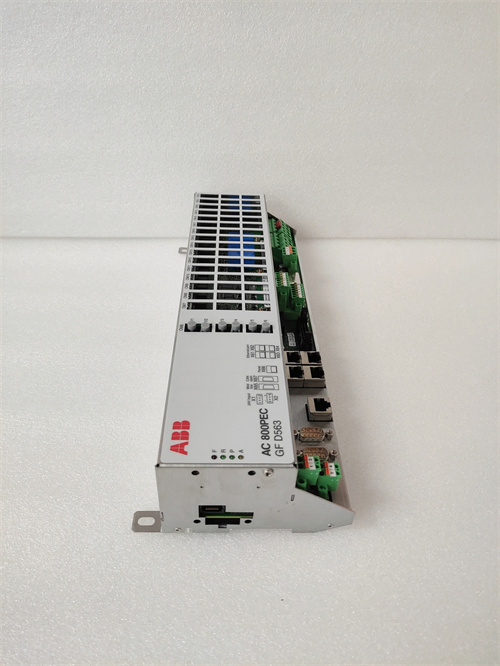

ABB GFD563 3BHE046836R0101

Description

Product Description

Product Parameters

Advantages and Features

1. High-Density 32-Channel Isolated Input Design

   The ABB GFD563 3BHE046836R0101 packs 32 fully isolated digital input channels into a single module, maximizing control cabinet space utilization and reducing the number of modules required for large-scale DCS configurations—lowering hardware and installation costs by up to 35%.

2. Native Redundancy for Uninterrupted High-Availability Operation

   Equipped with 1:1 hot standby redundancy support, the ABB GFD563 3BHE046836R0101 enables seamless switchover between active and standby units in less than 3 ms, ensuring zero process disruption during hardware faults or maintenance—critical for power plant turbine control and refinery emergency shutdown (ESD) systems.

3. Enhanced Surge & EMI Protection for Harsh Environments

   The ABB GFD563 3BHE046836R0101 provides 8 kV ESD surge protection and reinforced EMI shielding, withstanding electrical transients and noise from high-voltage equipment in power generation and petrochemical facilities, and reducing signal interference-related downtime by 40%.

4. Advanced Predictive Diagnostic Capabilities

   The ABB GFD563 3BHE046836R0101 offers real-time channel-level diagnostics, including signal drift monitoring and open-circuit detection, enabling maintenance teams to identify potential sensor failures before they escalate into system faults—cutting unplanned maintenance time by 50%.

5. Extreme Environmental Durability

   Rated for operation in -40°C to +70°C temperatures and resistant to salt spray, humidity, and mechanical vibration, the ABB GFD563 3BHE046836R0101 delivers a mean time between failures (MTBF) exceeding 300,000 hours, making it ideal for offshore platforms and desert power generation sites.

Application Cases in Application Fields

1. Combined-Cycle Gas Turbine Control System

   In a 900 MW combined-cycle power plant, the ABB GFD563 3BHE046836R0101 acquires discrete signals from turbine blade position sensors, fuel valve limit switches, and flame detectors. Its high-speed response time (≤0.5 ms) enables precise turbine speed regulation, while redundancy ensures uninterrupted operation during a module fault, preventing a potential 15-hour production shutdown and $3 million in revenue losses.

2. Nuclear Power Plant Auxiliary System Monitoring

   A nuclear power plant deploys the ABB GFD563 3BHE046836R0101 to monitor safety interlocks, coolant pump status sensors, and emergency shutdown triggers in auxiliary systems. Its robust surge protection withstands electrical transients from reactor equipment, and diagnostic capabilities detect sensor degradation early, ensuring compliance with strict nuclear safety regulations.

3. Petrochemical Refinery ESD System

   A major oil refinery uses the ABB GFD563 3BHE046836R0101 to connect pressure relief valve sensors, fire detection devices, and pipeline isolation switch status inputs to the Symphony Plus DCS. Its redundancy feature prevents false ESD triggers caused by module failures, avoiding costly production halts and ensuring worker safety.

4. Offshore Wind Farm Substation Automation

   A 600 MW offshore wind farm integrates the ABB GFD563 3BHE046836R0101 to monitor circuit breaker status, transformer temperature sensors, and tower vibration switches. Its rugged design withstands salt spray and extreme temperature fluctuations, while high-density channels reduce control cabinet footprint on compact offshore platforms.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Prioritize for ABB Symphony Plus DCS Integration

   Choose the ABB GFD563 3BHE046836R0101 if your facility operates an ABB Symphony Plus DCS; its native compatibility eliminates adapter costs and ensures seamless communication with the system’s core controllers.

2. Opt for Mission-Critical High-Redundancy Applications

   Select the ABB GFD563 3BHE046836R0101 for processes where downtime incurs significant financial or safety risks (e.g., gas turbines, nuclear plant auxiliaries), leveraging its hot standby redundancy to maximize system uptime.

3. Match with High-Speed Signal Detection Needs

   Verify that your application requires fast input response times (≤0.5 ms); the ABB GFD563 3BHE046836R0101’s high-speed detection capability is ideal for precision control and safety interlock systems.

Precautions

1. Redundancy Configuration Best Practices

   When setting up ABB GFD563 3BHE046836R0101 hot standby redundancy, ensure both active and standby modules run identical firmware versions and input configuration files to enable seamless switchover without process disruption.

2. Wiring and Grounding Requirements

   Use shielded twisted-pair cables for all input connections to the ABB GFD563 3BHE046836R0101 to minimize EMI interference; implement a dedicated low-resistance grounding system to prevent ground loops in high-voltage industrial environments.

3. Software Compatibility Guidelines

   Use only ABB-approved Symphony Plus SPECTRUM software versions (v5.3 or higher) to configure the ABB GFD563 3BHE046836R0101; outdated software may disable redundancy or advanced diagnostic features.

4. Storage Conditions

   Store spare ABB GFD563 3BHE046836R0101 modules in a dry, temperature-controlled environment (0°C to +30°C) with relative humidity below 85% to prevent component corrosion and extend shelf life.
