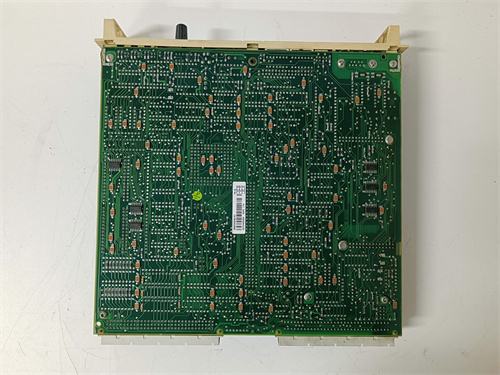

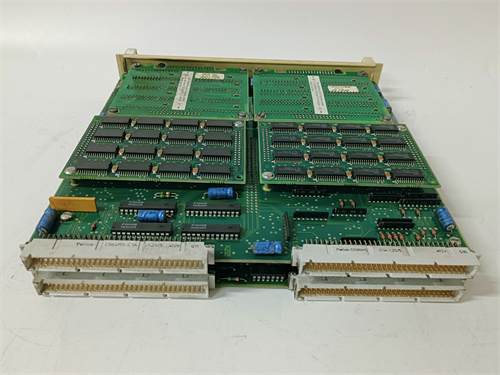

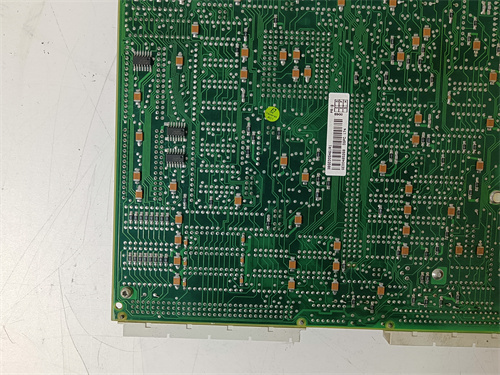

ABB DSPC174 3BSE005461R1

Description

Product Description

Product Parameters

Advantages and Features

1. Expanded High-Density PID Control Capability

   The ABB DSPC174 3BSE005461R1 supports up to 192 PID control loops—50% more than standard controllers—enabling centralized regulation of multi-stage processes like petrochemical distillation columns and water treatment plant cascaded systems, eliminating the need for multiple discrete controllers.

2. Zero-Downtime Hot Standby Redundancy

   Equipped with native 1:1 hot standby redundancy, the ABB DSPC174 3BSE005461R1 achieves seamless switchover in under 50 ms, ensuring continuous process operation during hardware faults, firmware updates, or routine maintenance—critical for applications where downtime incurs six-figure hourly losses.

3. Enhanced Processing Power & Memory

   With 128 MB RAM and 32 MB flash memory, the ABB DSPC174 3BSE005461R1 executes complex control algorithms and stores large volumes of historical process data locally, supporting advanced trend analysis and predictive maintenance without relying on external servers.

4. Native Compatibility with Advant OCS Ecosystem

   Designed exclusively for ABB’s Advant OCS system, the ABB DSPC174 3BSE005461R1 integrates seamlessly with Advant I/O modules, HMIs, and communication gateways, reducing retrofit project timelines by up to 35% and eliminating compatibility risks associated with third-party controllers.

5. Advanced Diagnostic & Monitoring Tools

   The ABB DSPC174 3BSE005461R1 features a dedicated diagnostic Ethernet port that provides real-time visibility into processor load, memory usage, and network health, enabling maintenance teams to identify potential issues before they escalate into system failures.

Application Cases in Application Fields

1. Large-Scale Petrochemical Refinery Control

   A 200,000 barrels-per-day oil refinery deploys the ABB DSPC174 3BSE005461R1 to control 120 PID loops across 8 distillation columns. Its hot standby redundancy ensures uninterrupted operation during a critical active unit hardware fault, preventing a potential 3-day production shutdown and $12 million in revenue losses.

2. Specialty Chemical Batch Production

   A GMP-compliant specialty chemical plant uses the ABB DSPC174 3BSE005461R1 to manage sequential batch reactions, regulating temperature ramps, pressure holds, and raw material dosing. Its expanded memory stores batch data for 6 months locally, simplifying compliance with FDA and EMA regulatory reporting requirements.

3. Coal-Fired Power Plant Boiler Control

   In a 600 MW coal-fired power plant, the ABB DSPC174 3BSE005461R1 regulates boiler combustion efficiency, air-fuel ratios, and emissions control systems. Its EMI resistance ensures stable operation amid high-voltage equipment noise, while redundancy prevents grid supply disruptions during peak demand periods.

4. Municipal Water Treatment Plant Automation

   A large municipal water treatment facility deploys the ABB DSPC174 3BSE005461R1 to control coagulation, sedimentation, filtration, and disinfection processes. Its high I/O capacity reduces the number of required controllers by 40%, optimizing control cabinet space and lowering overall system costs.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Prioritize for ABB Advant OCS Retrofit Projects

   Choose the ABB DSPC174 3BSE005461R1 if your facility operates an ABB Advant OCS control system; its native compatibility eliminates the need for costly system reconfiguration and preserves existing I/O investments.

2. Opt for Mission-Critical High-Redundancy Applications

   Select the ABB DSPC174 3BSE005461R1 for processes where downtime incurs significant financial or safety risks (e.g., oil refineries, chemical plants), leveraging its fast hot standby switchover to ensure continuous operation.

3. Match with High-Density PID Control Needs

   Verify that your application requires 128+ PID control loops; the ABB DSPC174 3BSE005461R1’s expanded capacity reduces hardware count and system complexity compared to standard controllers.

Precautions

1. Redundancy Configuration Best Practices

   When setting up ABB DSPC174 3BSE005461R1 hot standby redundancy, ensure both active and standby units run identical firmware versions and program configurations to enable seamless switchover without process disruption.

2. Wiring and Grounding Requirements

   Use shielded twisted-pair cables for all communication ports of the ABB DSPC174 3BSE005461R1 to minimize EMI interference; implement a dedicated, low-resistance grounding system to prevent ground loops and signal distortion.

3. Software Compatibility Check

   Use only ABB-approved Control Builder software versions (v5.1 or higher) to program the ABB DSPC174 3BSE005461R1; outdated or third-party software may cause program errors or disable redundancy features.

4. Storage Conditions

   Store spare ABB DSPC174 3BSE005461R1 modules in a dry, temperature-controlled environment (0°C to 30°C) with relative humidity below 85% to prevent component corrosion and extend shelf life.
