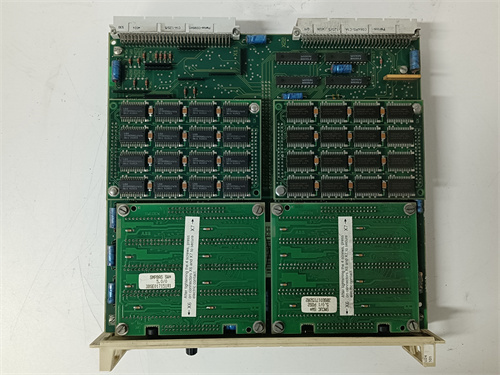

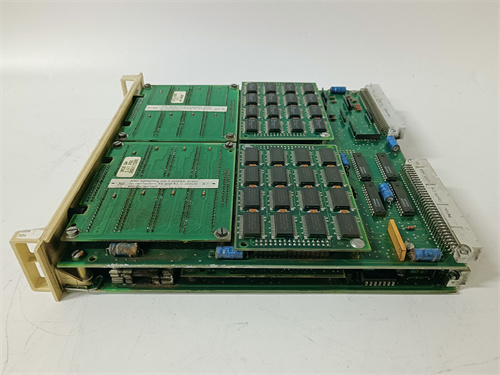

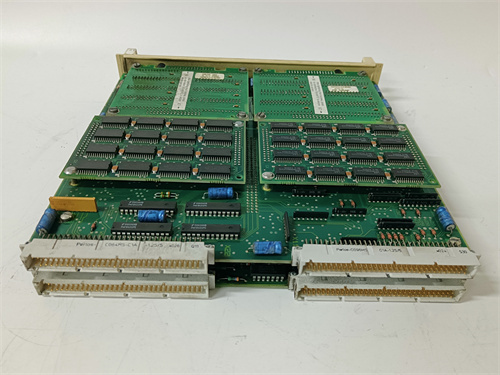

ABB DSPC174

Description

Product Description

Product Parameters

Advantages and Features

1. High-Density PID Control Capability

   The ABB DSPC174 supports up to 128 independent PID control loops, enabling centralized regulation of multi-variable processes such as chemical batch reactions and oil refinery distillation columns—eliminating the need for multiple discrete controllers and reducing system complexity.

2. Hot Standby Redundancy for Maximum Uptime

   Equipped with native 1:1 hot standby redundancy, the ABB DSPC174 enables seamless switchover between active and standby units in less than 50 ms, ensuring zero process disruption during hardware faults or maintenance—critical for applications like nuclear power plant auxiliary systems and offshore platform control.

3. Powerful Processing & Data Storage

   With a 32-bit RISC processor and 64 MB RAM, the ABB DSPC174 executes complex control algorithms and sequential logic at high speed, while its 16 MB flash memory stores process data and program backups for offline diagnostics and system recovery.

4. Native Compatibility with Advant OCS System

   Designed exclusively for ABB’s Advant OCS control architecture, the ABB DSPC174 integrates seamlessly with Advant I/O modules and HMIs, eliminating compatibility issues and reducing retrofit project timelines by up to 30%.

5. Robust EMI Resistance & Industrial Durability

   The ABB DSPC174 features enhanced electromagnetic shielding, ensuring stable operation in high-noise industrial environments such as steel mills and power generation plants, with a mean time between failures (MTBF) exceeding 200,000 hours.

Application Cases in Application Fields

1. Petrochemical Refinery Distillation Control

   In a large-scale oil refinery, the ABB DSPC174 serves as the primary controller for 8 distillation columns, regulating temperature, pressure, and reflux rates via 96 PID loops. Its hot standby redundancy ensures uninterrupted operation during maintenance, preventing costly production shutdowns and improving product yield consistency by 15%.

2. Chemical Batch Reaction Process Control

   A specialty chemical plant deploys the ABB DSPC174 to control sequential batch reactions, managing raw material dosing, temperature ramps, and pressure hold cycles. The module’s high-speed processing enables precise synchronization of multiple process steps, reducing batch cycle time by 20% and ensuring compliance with strict product quality standards.

3. Power Plant Boiler Combustion Control

   In a 400 MW coal-fired power plant, the ABB DSPC174 regulates boiler combustion efficiency by adjusting air-fuel ratios and monitoring flue gas emissions. Its redundancy feature ensures continuous operation during peak power demand periods, minimizing the risk of grid supply disruptions and reducing fuel consumption by 8%.

4. Water Treatment Plant Process Automation

   A municipal water treatment facility uses the ABB DSPC174 to control coagulation, sedimentation, and filtration processes, managing 32 analog I/O points for sensor data acquisition and actuator control. The module’s reliable operation in harsh plant environments ensures consistent water quality and compliance with regulatory standards.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Prioritize for ABB Advant OCS Retrofit Projects

   Choose the ABB DSPC174 if your facility operates an ABB Advant OCS control system and requires enhanced process control capability or redundancy; its native compatibility eliminates the need for costly system reconfiguration.

2. Opt for Mission-Critical High-Redundancy Applications

   Select the ABB DSPC174 for processes where downtime poses safety or financial risks (e.g., oil refineries, chemical plants), leveraging its hot standby redundancy to maximize system uptime.

3. Match with Multi-Loop Process Control Needs

   Verify that your application requires 32+ PID control loops; the ABB DSPC174’s high-density loop support provides a cost-effective alternative to deploying multiple smaller controllers.

Precautions

1. Redundancy Configuration Best Practices

   When setting up ABB DSPC174 hot standby redundancy, ensure both active and standby units use identical firmware versions and program configurations to enable seamless switchover without process disruption.

2. Wiring and Grounding Requirements

   Use shielded cables for communication ports of the ABB DSPC174 to minimize EMI interference; implement a dedicated grounding system to prevent ground loops and ensure stable data transmission.

3. Firmware and Software Compatibility

   Use only ABB-approved Control Builder software versions to program the ABB DSPC174; third-party software may cause program errors or compatibility issues that impact process control reliability.

4. Storage Conditions

   Store spare ABB DSPC174 modules in a dry, temperature-controlled environment (0°C to 30°C) with relative humidity below 85% to prevent component corrosion and extend shelf life.
