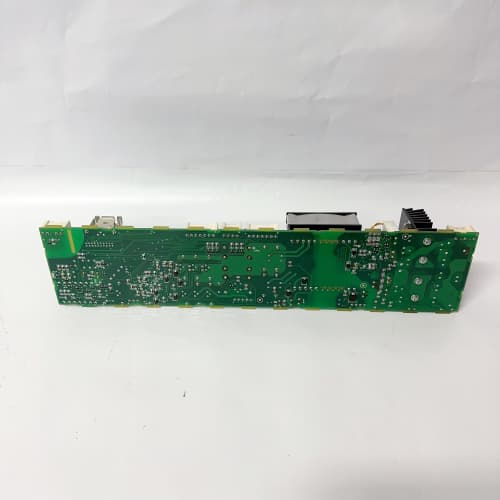

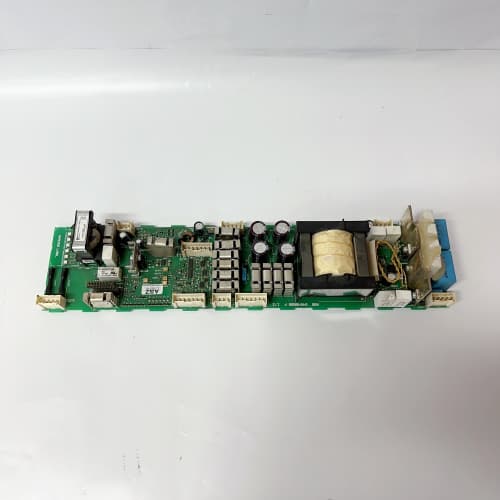

ABB DSMB-1C

Description

Product Description

Product Parameters

Advantages and Features

1. Ultra-Precise Multi-Drive Synchronization

   The ABB DSMB-1C delivers ±0.01% speed matching accuracy, ensuring that linked drives operate in perfect harmony for applications such as automotive body assembly lines, paper machine roller systems, and high-speed packaging conveyors. This precision eliminates product defects caused by speed mismatches and improves overall production efficiency.

2. High-Speed DriveBus Communication

   Leveraging ABB’s proprietary DriveBus protocol, the ABB DSMB-1C enables low-latency data transmission between drives, supporting real-time torque sharing and master-slave control configurations. This high-speed communication is critical for dynamic load changes, such as those encountered in heavy-duty material handling systems.

3. Plug-and-Play Integration with ABB Drives

   The ABB DSMB-1C installs directly into the dedicated slot of ABB ACS880/ACS580 drives, requiring no external power supplies or complex programming. This plug-and-play design reduces installation time by up to 60% compared to standalone synchronization modules, minimizing production downtime during system upgrades.

4. Robust Environmental Resilience

   Equipped with advanced EMI shielding and a wide operating temperature range, the ABB DSMB-1C operates reliably in harsh industrial settings, including high-vibration manufacturing floors and high-electromagnetic-interference metalworking facilities. Its corrosion-resistant housing also makes it suitable for use in food processing and chemical plants with washdown requirements.

Application Cases in Application Fields

1. Automotive Paint Shop Conveyor Control

   In an automotive OEM paint shop, the ABB DSMB-1C synchronizes 12 ACS880 drives powering overhead conveyor systems that transport vehicle bodies through cleaning, priming, and painting stages. Its ±0.01% speed accuracy ensures consistent paint application and eliminates streaking or uneven coating defects, reducing rework rates by 28%.

2. Beverage Bottling Line Roller Coordination

   A large-scale beverage bottling plant uses the ABB DSMB-1C to link 8 ACS580 drives controlling bottle handling rollers and filling station conveyors. The module’s DriveBus communication enables seamless speed adjustments during production line changeovers, allowing the plant to switch between bottle sizes in under 5 minutes without manual recalibration.

3. Textile Manufacturing Tension Control

   In a textile mill, the ABB DSMB-1C synchronizes drives powering yarn winding machines and fabric stretching rollers. Its torque sharing capability maintains consistent tension across the production line, preventing yarn breakage and fabric tearing, and improving product quality consistency by 35%.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Choose the ABB DSMB-1C for multi-drive automation applications requiring high-precision speed/torque synchronization, especially in automotive, packaging, and textile industries.
2. Prioritize this module for projects using ABB ACS880/ACS580 drives to leverage native compatibility and minimize integration complexity.
3. Select the ABB DSMB-1C for harsh industrial environments where wide temperature tolerance and EMI resistance are critical performance factors.

Precautions

1. Ensure the host ABB drive firmware is updated to the latest version before installing the ABB DSMB-1C to ensure full synchronization functionality and protocol compatibility.
2. Use shielded cables for DriveBus and Ethernet connections to minimize electromagnetic interference and maintain synchronization accuracy.
3. Follow ABB’s official configuration guidelines for master-slave and torque-sharing setups to avoid drive conflicts or performance degradation.
4. Do not disconnect the ABB DSMB-1C while the host drive is in operation, as this may cause synchronization loss and production disruptions.
