Description

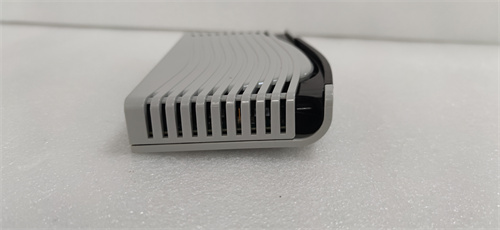

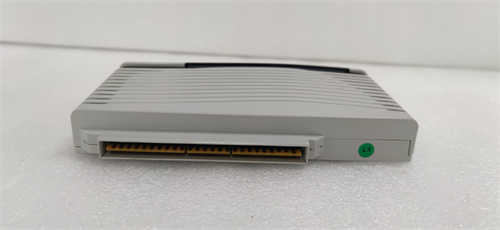

General Information About the Product ABB DI01

1. Technical Parameters of the ABB DI01

• Device Type: Digital input module for integration with ABB AC500 PLCs, ABB 800xA DCS, or compatible third-party controllers;
• Power Supply Parameters:
  • Rated supply voltage: 24 V DC (direct current);
  • Allowable voltage fluctuation: 19.2 V DC – 28.8 V DC (compatible with standard industrial system power supplies);
  • Current consumption: ≤30 mA (no load on inputs) — low power draw, avoiding overload on the controller network;
• Digital Input (DI) Characteristics:
  • Number of channels: 8 independent channels — for connecting multiple devices (position sensors, buttons, relays);
  • Signal type: “Dry contact” (NO — normally open / NC — normally closed) or 24 V DC energized signal;
  • Trigger threshold:
    • Minimum voltage for “OFF” signal: ≤5 V DC;
    • Minimum voltage for “ON” signal: ≥15 V DC;
  • Maximum input current per channel: ≤10 mA (overload protection against short circuits);
  • Response time: ≤1 ms — instant detection of status changes (critical for fault signals);
• Protection and Interference Immunity:
  • Electrostatic Discharge (ESD) protection: IEC 61000-4-2 Class (±8 kV contact, ±15 kV air) — prevents module damage from static contact;
  • Surge interference protection: IEC 61000-4-4 Class (±2 kV, 5/50 ns) — stable operation against short-term voltage fluctuations in industrial networks;
  • Signal rejection: >60 dB — no signal distortion when operating near electric motors or transformers;
• Communication Interfaces (Integration with Controllers):
  • Built-in interface: Backplane (rack-mounted connection) for ABB AC500 controllers — fast communication without additional cables;
  • Optional interface: RS-485 (Modbus RTU) — for integration with third-party PLCs (e.g., Siemens S7-1200, Schneider M340);
• Operating Conditions:
  • Temperature range: -25 °C to +60 °C — suitable for installation in enclosed control cabinets and moderately harsh industrial environments;
  • Humidity: 5% – 95% (non-condensing) — stable performance under humidity fluctuations;
  • Dimensions: 80 mm × 120 mm × 60 mm (height × width × depth), DIN rail mounting (EN 50022 standard) — compact design for densely packed control cabinets;
  • Enclosure protection class: IP20 — protection against fingers and large dust particles;
  • Certifications: CE (compliance with European standards), UL 61010-1 (safety for measuring equipment), IEC 61131-2 (industrial controller standards) — meets international safety norms.

2. Advantages and Features of the ABB DI01

• 8 Independent Channels and Wide Supply Voltage Range: The large number of channels allows simultaneous connection of multiple sensors (e.g., 8 position sensors for a conveyor), reducing the need for additional modules. The 19.2–28.8 V DC voltage tolerance makes the ABB DI01 resistant to power fluctuations in older production facilities;
• High Interference Immunity (IEC 61000-4-2/4): ESD and surge protection ensures reliable operation of the ABB DI01 in high-electromagnetic-interference environments (e.g., metallurgical plants, facilities with high-power motors) — no false signals caused by interference;
• Fast Response Time (≤1 ms): Instant status change detection is critical for emergency scenarios. For example, if a conveyor’s safety guard is removed, the ABB DI01 transmits a signal to the PLC in ≤1 ms, which immediately stops the equipment to prevent operator injury;
• Compatibility with ABB and Third-Party Systems: The built-in backplane interface is ideal for ABB AC500 controllers, while the optional RS-485 (Modbus RTU) enables integration of the ABB DI01 with Siemens, Schneider, and other systems — no need to replace existing equipment, reducing modernization costs;
• Easy Installation and Diagnostics: DIN rail mounting takes minutes, and LED indicators for each channel (green = “ON” signal, red = “OFF” signal) enable quick input status checks — no additional tools are required for diagnostics;
• Durability and Low Operating Costs: Certifications and a rugged design ensure the ABB DI01 has a service life of up to 10 years in 24/7 operation, while low power consumption (≤30 mA) reduces overall automation system operating costs.

3. Application Cases of the ABB DI01 Across Industries

• Production Facility (Conveyor Line Control): Monitoring 8 sections of a conveyor in an automotive factory — the ABB DI01 is connected to position sensors (NO contacts) on each section: an “ON” signal indicates “conveyor running,” and “OFF” indicates “stopped.” Data is transmitted via the backplane to an ABB AC500 controller. If one section stops (OFF signal), the PLC detects the issue via the ABB DI01 in ≤1 ms and stops preceding sections to prevent part accumulation. LED indicators help operators quickly identify the faulty section;
• Power Plant (Protective Device Monitoring): Monitoring 8 protective relays in a substation — the ABB DI01 receives signals from the relays (NC contacts): an “OFF” signal indicates “fault (relay tripped),” and “ON” indicates “normal.” In the event of a fault (e.g., short circuit), the ABB DI01 sends a signal to the ABB 800xA DCS via RS-485 (Modbus RTU), and the system automatically activates an alarm and isolates the faulty section. Surge protection prevents false alarms from voltage fluctuations;
• Distribution Center (Warehouse Door Lock Monitoring): Monitoring 8 door locks in a goods warehouse — the ABB DI01 is connected to door open sensors (24 V DC signal): “ON” = door open, “OFF” = door closed. Data is transmitted to a Siemens S7-1200 PLC via RS-485. If a door is opened unauthorizedly (ON signal during non-operating hours), the PLC activates an audible alarm via the ABB DI01 and notifies the administrator. A ≤1 ms response time ensures quick action against breaches;
• Food Industry (Tank Level Monitoring): Monitoring the high-level limit of sugar in 8 tanks — the ABB DI01 is connected to level sensors (NO dry contacts): when a tank is filled to the high limit, the sensor closes (ON signal). The ABB DI01 transmits a signal to the ABB AC500 controller, which stops the sugar feed pump. ESD protection prevents module damage from static generated by dry sugar.

4. Comparison of the ABB DI01 with Competitors

5. Selection Advice and Precautions for Using the ABB DI01

Selection Advice

• Assess Sensor Quantity and Operating Conditions: If you need to connect 4–8 discrete sensors and operate in environments below 0 °C (e.g., cold storage, outdoor facilities), the ABB DI01 (with a -25 °C to +60 °C range) is ideal. For fewer than 4 sensors, consider the ABB DI004 (4-channel model), but the ABB DI01 provides room for future expansion;
• Verify Controller Compatibility: For ABB AC500 or 800xA DCS, choose the ABB DI01 with a backplane interface (for fast, cable-free integration). For third-party PLCs (Siemens, Schneider), add the optional RS-485 module — ensure the controller supports Modbus RTU;
• Consider Factory Interference Levels: For facilities with high electromagnetic interference (metallurgy, heavy industry), the ABB DI01 (with IEC 61000-4-2/4 protection) is the only viable choice, as it prevents false signals and module damage.

Precautions

• Installation and Wiring: Mount the ABB DI01 on a DIN rail only in enclosed control cabinets — avoid direct dust, water, or mechanical damage. When wiring sensors, check the signal polarity (for 24 V DC energized inputs): incorrect polarity will not damage the module but will prevent correct signal detection;
• Channel Testing: Before system startup, test each ABB DI01 channel — connect a test contact to each input and verify the LED indicators (green should light up for “ON” signals). If an indicator fails to light, check the cable or sensor — do not use the module with non-functional channels;
• Overload Protection: Do not connect loads with current exceeding 10 mA per channel (e.g., high-power relays) to the ABB DI01 — this may damage the input circuit. For high-current loads, use additional booster relays (e.g., ABB CR-M series): connect the relay to the ABB DI01 and the load to the relay.
