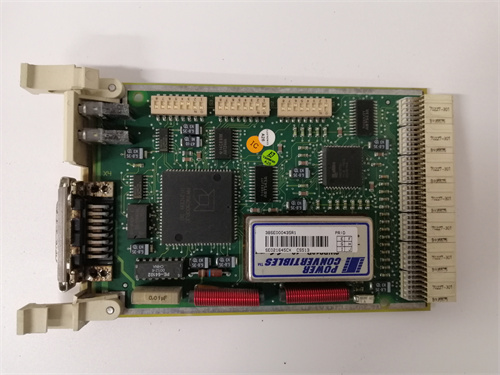

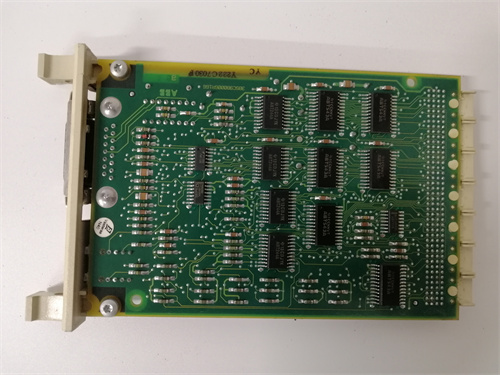

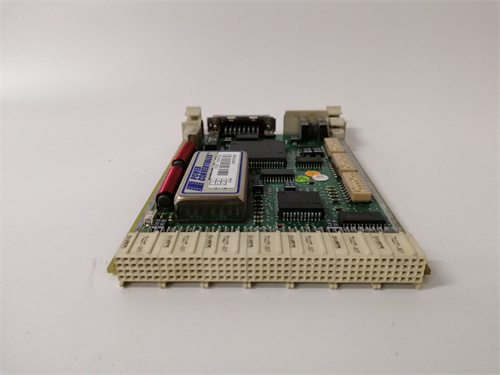

ABB CS513

Description

Product Description

Product Parameters

Advantages and Features

1. Native Compatibility with ABB S5 PLCs

   The ABB CS513 is specifically designed for ABB S5 series PLC systems, ensuring plug-and-play integration with the PLC backplane—eliminating compatibility issues and reducing the need for additional adapters in legacy system upgrades.

2. High-Speed Profibus DP Connectivity

   With support for data transfer speeds up to 12 Mbps, the ABB CS513 enables real-time communication between the S5 PLC and field devices such as sensors, actuators, and variable frequency drives—critical for time-sensitive applications like assembly line control.

3. Compact Rack-Mount Design

   The ABB CS513’s slim form factor fits directly into ABB S5 PLC racks, optimizing control cabinet space and simplifying installation in retrofitting projects where space is limited.

4. EMI Resistance for Stable Operation

   Equipped with enhanced EMI shielding, the ABB CS513 maintains reliable data transmission even in high-noise industrial environments, such as metalworking factories and heavy machinery plants.

5. Low-Power, Backplane-Powered Operation

   Drawing power directly from the S5 PLC backplane, the ABB CS513 eliminates the need for external power supplies, reducing wiring complexity and lowering overall system costs.

Application Cases in Application Fields

1. Legacy Automotive Component Assembly

   In a long-running automotive component factory using ABB S5 PLCs, the ABB CS513 connects the PLC to a network of robotic welding arms and conveyor belt sensors via Profibus DP. The module enables real-time adjustment of welding parameters, improving product quality consistency and reducing production defects.

2. Packaging Line Retrofit Projects

   A food packaging plant retrofits its existing ABB S5 PLC-based line with the ABB CS513 to integrate new smart sensors for package weight detection. The module’s Profibus DP connectivity allows the legacy PLC to process sensor data, enabling automated rejection of underweight packages without a full PLC replacement.

3. Material Handling System Upgrades

   A warehouse material handling system uses the ABB CS513 to link its ABB S5 PLC to a fleet of automated guided vehicles (AGVs). The module’s high-speed communication ensures precise AGV positioning and route optimization, increasing warehouse throughput by 15%.

4. Industrial Pump Control for Water Utilities

   A municipal water utility deploys the ABB CS513 in its ABB S5 PLC-based pump control system, connecting the PLC to pressure and flow sensors via Profibus DP. The module enables remote monitoring of pump status, reducing on-site maintenance visits and improving system uptime.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Prioritize for ABB S5 PLC Retrofit & Upgrade Projects

   Choose the ABB CS513 if your system uses ABB S5 series PLCs and requires Profibus DP connectivity; its native integration eliminates compatibility risks and simplifies installation.

2. Opt for Space-Constrained Control Cabinets

   Select the ABB CS513 for retrofitting projects with limited cabinet space, as its compact rack-mount design fits directly into S5 PLC racks without additional mounting hardware.

3. Match with Profibus DP-Based Field Devices

   Verify that your field devices (sensors, drives, actuators) support Profibus DP V0/V1 protocol to leverage the ABB CS513’s full communication capabilities.

Precautions

1. Installation Safety

   Power off the ABB S5 PLC completely before installing or removing the ABB CS513 to avoid electrical hazards and prevent damage to the module or PLC backplane.

2. Cable Selection Best Practices

   Use shielded Profibus DP cables for the ABB CS513 to minimize EMI interference; ensure cable lengths do not exceed the protocol’s maximum distance (100 m at 12 Mbps) to maintain stable data transmission.

3. Configuration Notes

   Use ABB’s official programming software for the S5 PLC to configure the ABB CS513; avoid third-party software tools, as they may cause communication errors or function limitations.

4. Storage Conditions

   Store spare ABB CS513 modules in a dry, temperature-controlled environment (0°C to 30°C) with relative humidity below 85% to prevent component degradation and extend shelf life.
