ABB+CP405 CP450-T-ETH

Description

The ABB CP405 and CP450-T-ETH are part of ABB’s range of Human Machine Interfaces (HMIs) designed for industrial automation.

Product Name:

• ABB CP405
• ABB CP450-T-ETH

Product Description:

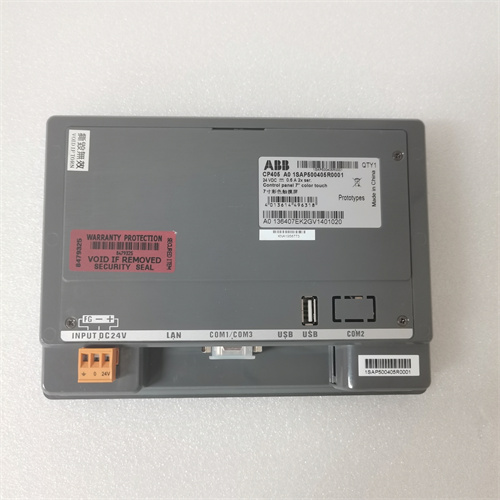

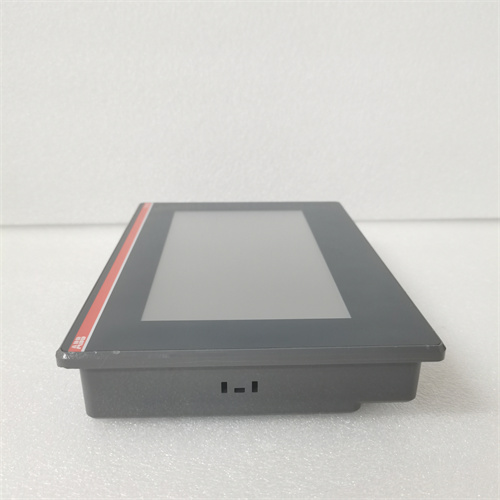

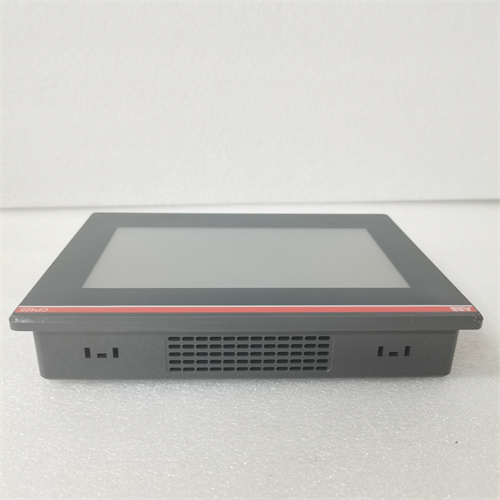

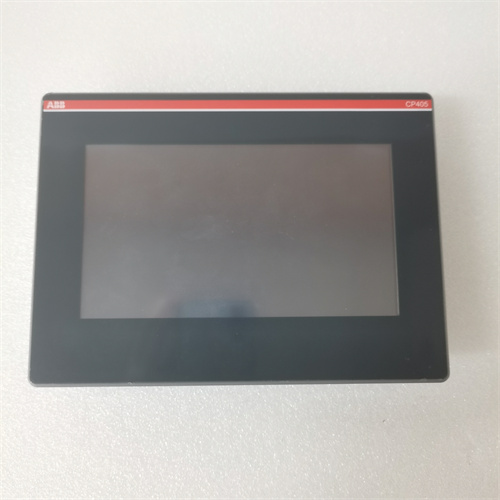

• ABB CP405: The CP405 is a compact, versatile touch panel designed for industrial applications. It provides a user-friendly interface to monitor and control various processes.
• ABB CP450-T-ETH: The CP450-T-ETH is a more advanced touch panel that includes Ethernet connectivity, providing enhanced communication capabilities and more extensive integration features. It has a larger display, increased processing power, and supports more complex applications.

Product Parameters (General):

• Display Size:
  • CP405: 4.3 inches
  • CP450-T-ETH: 5.7 inches or larger, depending on the version.
• Resolution:
  • Typically supports resolutions like 480×272 pixels (CP405) and higher for CP450.
• Touch Screen Type:
  • Both models use a durable capacitive or resistive touch screen.
• Processor:
  • Equipped with a powerful processor to ensure smooth operation and multitasking capabilities.
• Memory:
  • Varies by model but generally includes RAM and Flash memory sufficient for most applications.
• Networking:
  • CP405: Basic connectivity options.
  • CP450-T-ETH: Ethernet, USB, and often optional communication protocols like Modbus, Profibus, etc.

Specifications:

1. Power Supply: Typically operates on 24V DC.
2. Operating Temperature: Usually rated for -10°C to +60°C, suitable for industrial environments.
3. IP Rating: IP65, indicating dust-tight and water-resistant capabilities.
4. Mounting Options: Panel mount or desktop options available.
5. Software Compatibility: Compatible with ABB’s programming environments and software suites for designing user interfaces and HMI applications.

Product Use:

• The CP405 and CP450-T-ETH touch screens are used in various industrial applications, including:
  • Monitoring and Control: Operators can visualize process data, monitor conditions, and control machinery.
  • Data Logging: Collect and log process data for performance analysis.
  • User Interface Design: Customizable interfaces allow for tailored solutions to specific operational needs.
  • Communication: Integrate with PLCs, sensors, and other devices for coordinated operation.
  • Remote Access: Especially with Ethernet connectivity, users can access and manage processes remotely.
