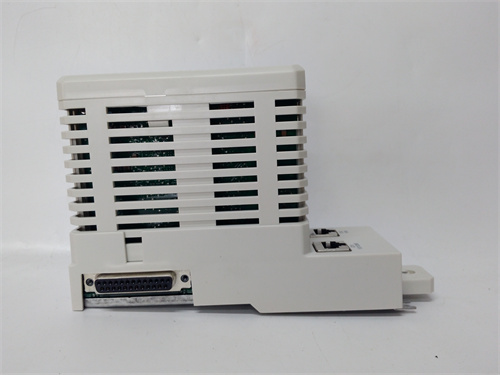

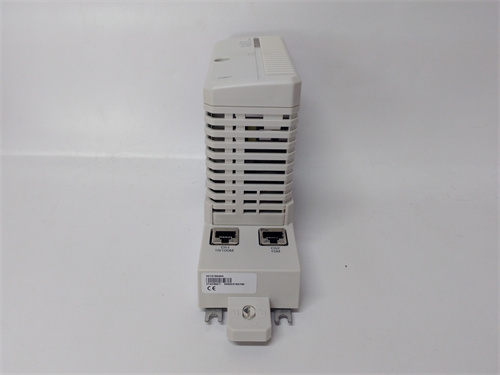

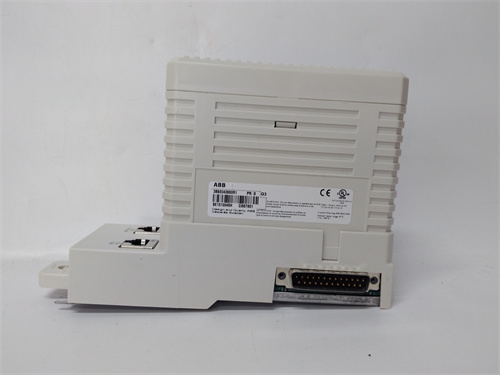

ABB CI867

Description

Product Description

Product Parameters

Advantages and Features

1. PROFINET IRT for Deterministic Real-Time Control

   The ABB CI867 supports PROFINET IRT, enabling sub-millisecond data synchronization for applications requiring precise motion control and process coordination—such as robotic assembly lines and high-speed packaging systems.

2. Dual-Port Redundancy for Uninterrupted Operation

   Equipped with redundant PROFINET ports, the ABB CI867 ensures automatic switchover in case of network failure, eliminating single points of failure and maximizing system uptime for critical processes like chemical batch production and power generation.

3. Enhanced Cybersecurity Protection

   Compliant with ISA/IEC 62443 standards, the ABB CI867 includes IP address filtering, access control lists (ACLs), and TLS encryption to safeguard critical process data from unauthorized access and cyber threats, ensuring compliance with industry regulations.

4. Industrial-Grade Durability for Harsh Environments

   Rated for extreme temperatures, EMI resistance, and vibration tolerance, the ABB CI867 performs reliably in harsh settings such as steel mills, mining sites, and offshore platforms, minimizing maintenance frequency and downtime.

5. Simplified Configuration & Diagnostics

   Compatible with ABB Control Builder M software, the ABB CI867 allows for intuitive parameter setup, real-time network health monitoring, and remote firmware updates—cutting commissioning time by up to 35% and lowering operational costs.

Application Cases in Application Fields

1. Automotive Robotic Assembly Lines

   In a high-speed automotive assembly plant, the ABB CI867 serves as a PROFINET IRT gateway, linking the AC 800M DCS to robotic welding arms, conveyor systems, and precision positioning sensors. Its sub-millisecond synchronization ensures coordinated movement of all equipment, reducing production cycle time and improving product quality consistency.

2. High-Speed Packaging Industry

   A food and beverage packaging facility deploys the ABB CI867 to connect filling machines, labeling systems, and palletizing robots into a PROFINET IRT network. The module’s deterministic real-time control enables precise synchronization of packaging processes, minimizing product waste and maximizing throughput.

3. Industrial Robotics & Motion Control

   A precision machinery manufacturer uses the ABB CI867 to integrate multi-axis robotic arms with its central DCS. The module’s PROFINET IRT support ensures smooth, accurate motion control, critical for applications such as semiconductor wafer handling and electronic component assembly.

4. Power Generation Auxiliary Systems

   In a combined-cycle power plant, the ABB CI867 connects turbine control systems, cooling water pumps, and emission monitoring devices. Its redundant design ensures uninterrupted data transmission during peak power demand periods, supporting stable and efficient power generation.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Prioritize for PROFINET IRT Real-Time Control Applications

   Choose the ABB CI867 if your system requires sub-millisecond synchronization (e.g., robotic assembly, high-speed packaging); its native PROFINET IRT support eliminates the need for additional licensing or hardware.

2. Opt for Redundancy-Critical Processes

   Select the ABB CI867 for applications where downtime leads to significant financial or safety risks (e.g., power generation, chemical processing) due to its dual-port redundant design.

3. Match with ABB AC 800M DCS

   For optimal performance and compatibility, pair the ABB CI867 with ABB’s AC 800M distributed control system; verify third-party PLC compatibility via ABB’s official compatibility matrix.

Precautions

1. PROFINET IRT Network Configuration Best Practices

   When setting up the ABB CI867 in IRT mode, ensure all connected devices support PROFINET IRT to maintain deterministic synchronization; avoid mixing IRT and non-IRT devices on the same network segment.

2. Wiring Requirements

   Use shielded Gigabit Ethernet cables for the ABB CI867 to minimize EMI interference; ensure proper grounding of cable shields at one end only to prevent ground loops that could degrade signal quality.

3. Firmware Update Caution

   Perform firmware updates for the ABB CI867 during scheduled maintenance windows; ensure the updated firmware version is compatible with the host AC 800M DCS to avoid communication disruptions.

4. Storage Conditions

   Store spare ABB CI867 modules in a dry, temperature-controlled environment (0°C to +30°C) with relative humidity below 85% to prevent component degradation and extend shelf life.
