ABB+CI857K01 CI858K01

Description

Product Name

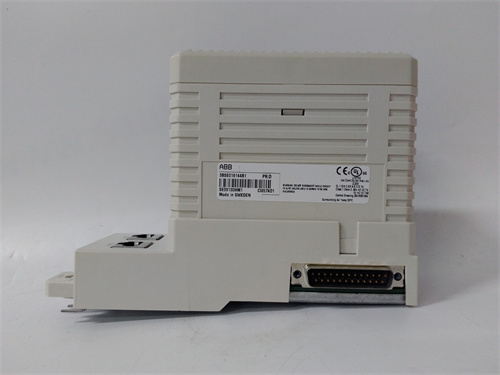

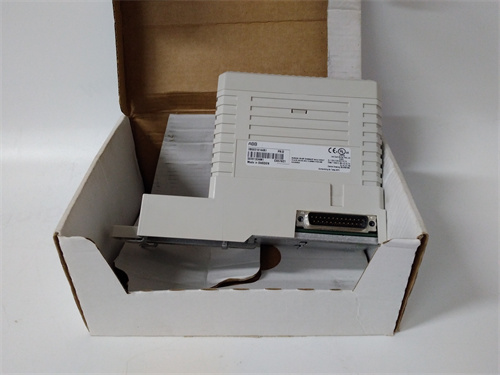

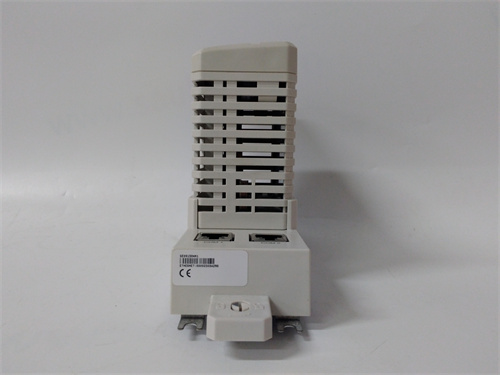

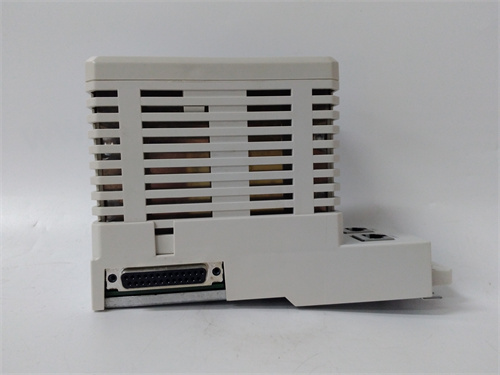

ABB CI857K01 Fieldbus Cluster Module Kit and ABB CI858K01 Fieldbus Cluster Module Kit

Product Description

The ABB CI857K01 and ABB CI858K01 are essential kits for integrating fieldbus devices into the ABB AC 800M controller. These kits contain the necessary components to establish a PROFIBUS DP or FOUNDATION Fieldbus HSE network, respectively, enabling seamless communication between intelligent field devices and the control system. The ABB CI857K01 is specifically designed for PROFIBUS DP, a widely used fieldbus for factory and process automation, known for its speed and deterministic behavior. Conversely, the ABB CI858K01 focuses on FOUNDATION Fieldbus HSE (High-Speed Ethernet), which offers high bandwidth for demanding process control applications and advanced device diagnostics. These modules act as a bridge, allowing the AC 800M controller to exchange data, control signals, and diagnostic information with fieldbus-enabled instruments, drives, and other smart devices. By utilizing the ABB CI857K01 and ABB CI858K01, users can simplify wiring, reduce installation costs, and enhance the overall reliability and flexibility of their automation systems. They are integral to leveraging the benefits of digital fieldbus technology within the ABB System 800xA architecture.

Product Parameters

ABB CI857K01 (PROFIBUS DP Cluster Module Kit)

• Module Type: Fieldbus Cluster Module (FCM) Kit
• Fieldbus Protocol: PROFIBUS DP (Decentralized Peripherals)
• Communication Interface: RS-485 (for PROFIBUS DP)
• Data Rate: Up to 12 Mbit/s
• Number of Devices: Supports connection of up to 125 PROFIBUS DP slaves per master
• Controller Compatibility: Designed for use with ABB AC 800M controllers
• Typical Components in Kit: CI857 (FCM module), TB857 (Terminal Block), and necessary documentation.
• Power Supply: Typically powered by the controller’s power supply.
• Isolation: Electrical isolation between fieldbus and controller backplane.

ABB CI858K01 (FOUNDATION Fieldbus HSE Cluster Module Kit)

• Module Type: Fieldbus Cluster Module (FCM) Kit
• Fieldbus Protocol: FOUNDATION Fieldbus HSE (High-Speed Ethernet)
• Communication Interface: Ethernet (100 Mbit/s)
• Redundancy Support: Often supports media redundancy (MRP) for increased availability.
• Controller Compatibility: Designed for use with ABB AC 800M controllers
• Typical Components in Kit: CI858 (FCM module), TB858 (Terminal Block), and necessary documentation.
• Power Supply: Typically powered by the controller’s power supply.
• Isolation: Electrical isolation for reliable communication.

Advantages and Features

• Seamless Integration: Both ABB CI857K01 and ABB CI858K01 provide native integration of their respective fieldbus protocols into the ABB System 800xA, simplifying configuration and management.
• Reduced Wiring: Fieldbus technology significantly reduces the amount of discrete wiring required compared to traditional analog I/O, leading to lower installation costs and less troubleshooting.
• Enhanced Diagnostics: These modules enable advanced diagnostics from field devices to be accessed directly within the control system, allowing for proactive maintenance and faster fault identification.
• Improved Data Access: Provides access to a wealth of data from intelligent field devices, including process variables, device status, and calibration information.
• Scalability and Flexibility: Allows for easy expansion and modification of the fieldbus network without extensive re-wiring.
• High Performance: ABB CI857K01 offers high-speed PROFIBUS DP communication, while ABB CI858K01 leverages the high bandwidth of Industrial Ethernet for FOUNDATION Fieldbus HSE.
• Robustness: Designed for industrial environments, ensuring reliable operation in harsh conditions.

Application Areas and Use Cases

• Process Automation: Widely used in chemical plants, oil & gas refineries, power generation, and pharmaceutical manufacturing for integrating intelligent sensors, actuators, and control valves. For example, a ABB CI857K01 might control a pump station in a water treatment plant, while an ABB CI858K01 handles complex control loops in a distillation column in a refinery.
• Factory Automation: Employed in manufacturing facilities for connecting PLCs, HMIs, motor drives, and robotic systems to a central control system.
• Building Automation: Integration of HVAC systems, lighting controls, and security systems in large commercial or industrial buildings.
• Infrastructure: Used in transportation systems, tunnels, and utility distribution networks for monitoring and controlling geographically dispersed assets.
• Mining and Metals: Control of heavy machinery, conveyor belts, and process equipment in mining operations.

Competitor Comparison

In the realm of fieldbus integration for industrial automation, key competitors for ABB’s solutions include:

• Siemens: Offers various communication modules for their SIMATIC controllers (e.g., CP modules for PROFIBUS DP and PROFINET) that provide similar fieldbus integration capabilities.
• Rockwell Automation (Allen-Bradley): Provides communication modules for their Logix platforms (e.g., ControlNet, DeviceNet, EtherNet/IP) for connecting to various field devices.
• Schneider Electric: Features communication modules for their Modicon PLCs, supporting protocols like Modbus, Modbus TCP/IP, and Profibus DP.
• Emerson (DeltaV): Specializes in process automation with strong FOUNDATION Fieldbus integration, offering comparable capabilities to ABB CI858K01.

While competitors offer similar functionality, ABB’s CI857K01 and CI858K01 are specifically designed for optimal performance and seamless integration within the ABB System 800xA environment, leveraging its engineering tools and diagnostic capabilities.

Selection Advice

When choosing between the ABB CI857K01 and ABB CI858K01, or considering other fieldbus options, evaluate the following:

• Existing Field Devices: If your existing or planned field devices primarily use PROFIBUS DP, the ABB CI857K01 is the logical choice. If your process requires high-speed Ethernet-based communication with advanced diagnostics and device integration, and your devices support FOUNDATION Fieldbus HSE, then the ABB CI858K01 is more suitable.
• Application Requirements: For high-speed discrete control and moderate process control, PROFIBUS DP (via ABB CI857K01) is often sufficient. For complex process control, advanced diagnostics, and extensive data exchange, FOUNDATION Fieldbus HSE (via ABB CI858K01) might be preferred.
• System Architecture: Ensure compatibility with your existing or planned ABB AC 800M controller and System 800xA version.
• Future Expansion: Consider potential future needs for network speed, device count, and advanced diagnostic features.
• Budget: Evaluate the cost of the module kits, field devices, and installation against your project budget.

Considerations

• Firmware Compatibility: Always verify the firmware versions of the ABB CI857K01 or ABB CI858K01 module and the AC 800M controller for compatibility to ensure proper operation.
• Network Design: Proper fieldbus network design, including termination, segment lengths, and addressing, is critical for reliable communication.
• Installation Environment: Ensure the installation environment meets the specified temperature, humidity, and vibration ratings for the modules.
• Cable Type: Use the correct cable types for PROFIBUS DP (shielded twisted pair) and FOUNDATION Fieldbus HSE (Ethernet cables as per industrial standards) to prevent communication issues.
• Redundancy: For critical applications, consider implementing redundancy for the fieldbus modules themselves if supported by the specific ABB CI857K01 or ABB CI858K01 variant and controller.

We are your trusted partner, providing ABB CI857K01 CI858K01 and other automation spare parts sales and technical support. We offer you special discount prices. Please contact us, and we will serve you wholeheartedly.
