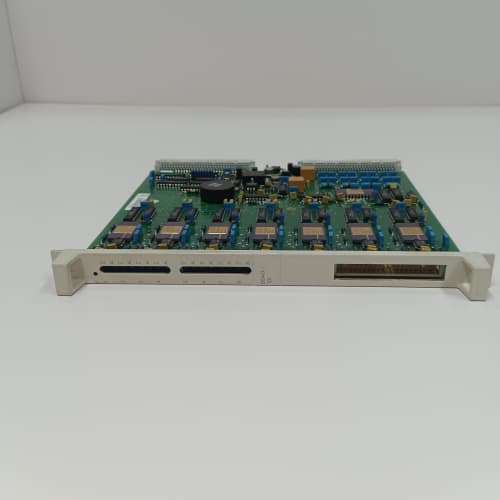

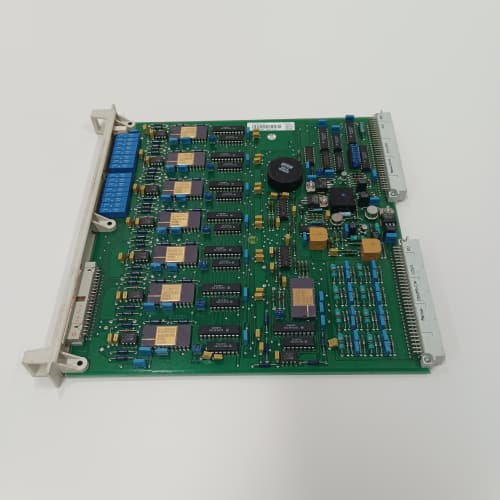

ABB BRC410

Description

Product Description

Product Parameters

Advantages and Features

1. Multi-Protocol Interoperability

   The ABB BRC410 supports a wide range of industrial communication protocols, enabling seamless connectivity between heterogeneous devices (PLCs, sensors, drives, HMIs) and breaking down data silos in complex automation systems.

2. Redundant Design for High Availability

   With 1:1 hot standby redundancy and sub-50 ms switchover time, the ABB BRC410 ensures zero data loss and uninterrupted operation, making it suitable for applications such as oil refineries, chemical plants, and power generation facilities.

3. High-Speed Data Processing

   Boasting a 1 ms data refresh rate and support for 10,000+ data points, the ABB BRC410 delivers real-time data transmission and processing, critical for dynamic process control and rapid decision-making.

4. Rugged Industrial Durability

   Rated for extreme temperatures, EMI resistance, and vibration tolerance, the ABB BRC410 maintains stable performance in harsh environments where standard controllers would fail, reducing maintenance frequency and downtime.

5. Simplified Configuration & Maintenance

   Compatible with ABB’s Control Builder M software, the ABB BRC410 allows for intuitive parameter setup, firmware updates, and diagnostic monitoring—cutting commissioning time by up to 40% and lowering operational costs.

Application Cases in Application Fields

1. Oil & Gas Refining

   In a large-scale oil refinery, the ABB BRC410 acts as a communication bridge between field-level flow meters, temperature sensors, and the central AC 800M DCS. Its redundant design ensures continuous operation during critical distillation processes, preventing costly production shutdowns.

2. Thermal Power Generation

   A coal-fired power plant deploys the ABB BRC410 to synchronize data from boiler control systems, turbine monitors, and emission analyzers. Its high-speed data processing enables real-time adjustments to fuel supply and steam pressure, optimizing power output and reducing emissions.

3. Chemical Manufacturing

   In a specialty chemical plant, the ABB BRC410 connects batch reactors, mixing tanks, and packaging lines, ensuring consistent data exchange across different protocols. Its redundancy feature eliminates risks of data loss during hazardous chemical reactions, enhancing operational safety.

4. Water & Wastewater Treatment

   A municipal wastewater treatment plant uses the ABB BRC410 to integrate data from pumping stations, filtration systems, and quality analyzers. Its multi-protocol support allows the plant to connect legacy sensors with modern SCADA systems, extending the lifespan of existing equipment while improving monitoring efficiency.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Prioritize for Redundancy-Critical Applications

   Choose the ABB BRC410 if your project requires uninterrupted operation (e.g., oil refineries, power plants); it delivers native redundancy without the need for additional hardware.

2. Validate Protocol Compatibility

   Select the ABB BRC410 for systems with mixed industrial protocols, as its broad protocol support eliminates the need for multiple gateway devices and reduces system complexity.

3. Match with AC 800M DCS

   For optimal performance, pair the ABB BRC410 with ABB’s AC 800M distributed control system; compatibility with third-party DCS/PLC systems should be verified through ABB’s compatibility matrix.

Precautions

1. Redundancy Configuration Best Practices

   When setting up 1:1 redundancy for the ABB BRC410, ensure both primary and standby units use identical firmware versions to avoid switchover failures.

2. Wiring & Grounding Requirements

   Use shielded Ethernet and Profibus cables for the ABB BRC410 to minimize EMI interference; implement proper grounding to prevent signal distortion and equipment damage.

3. Firmware Update Caution

   Perform firmware updates during scheduled maintenance windows; avoid updating the ABB BRC410 during critical process operations to prevent system disruptions.

4. Storage Conditions

   Store spare ABB BRC410 units in a dry, temperature-controlled environment (0°C to +30°C) with relative humidity below 85% to prevent component degradation.
