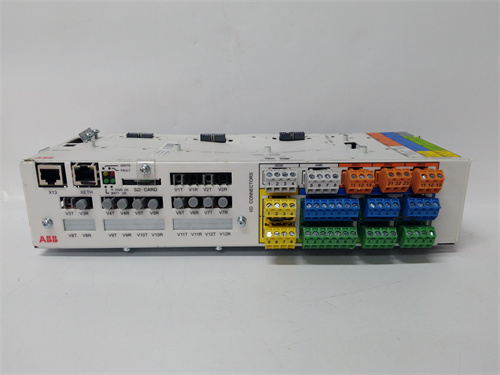

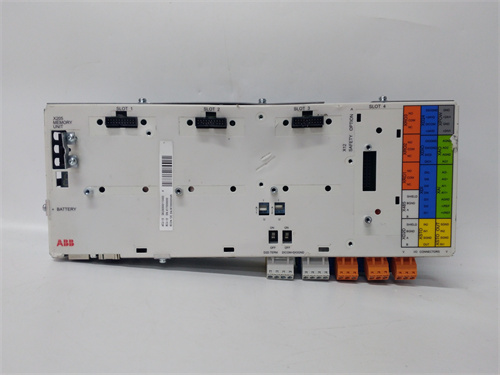

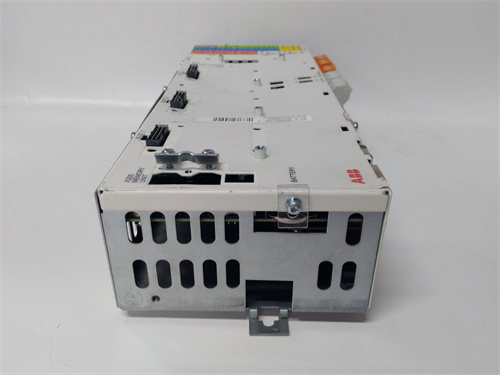

ABB BCU-12 3AUA000110430

Description

Product Description

Product Parameters

Advantages and Features

1. Multi-Mode Control Flexibility

   The ABB BCU-12 3AUA000110430 supports a full range of control modes, from basic V/f regulation for simple pumps and fans to high-precision vector control for heavy-duty machinery like cranes and extruders. This versatility eliminates the need for separate control units for different load types, reducing system complexity.

2. Seamless System Integration

   Equipped with standard industrial communication protocols, the ABB BCU-12 3AUA000110430 enables real-time data exchange with PLCs, DCS, and HMI systems. It also supports parameter backup and restoration, simplifying drive configuration and maintenance workflows.

3. Comprehensive Protection Mechanisms

   Built-in protection functions safeguard both the drive and connected motors against electrical faults and operational anomalies. The ABB BCU-12 3AUA000110430 detects overcurrent, overvoltage, and overload conditions in milliseconds, triggering protective actions to minimize equipment damage and downtime.

4. Modular and Space-Saving Design

   The compact, modular structure of the ABB BCU-12 3AUA000110430 allows easy integration into ABB ACS880 drives, saving valuable cabinet space. Its plug-and-play design enables quick replacement during maintenance, reducing service time and operational disruptions.

Application Cases in Application Fields

1. Mining and Material Handling

   In a coal mine conveyor system, the ABB BCU-12 3AUA000110430 controls ACS880 drives to regulate conveyor belt speed based on material load. Its vector control mode ensures stable torque output even under varying load conditions, preventing belt slippage and reducing energy consumption by 15–20% compared to conventional drives.

2. Industrial Pumping Systems

   A water treatment plant uses the ABB BCU-12 3AUA000110430 to manage a network of centrifugal pumps. The unit’s V/f control mode optimizes pump speed according to water demand, lowering energy costs and extending pump service life by reducing mechanical wear.

3. Metal Processing

   In a steel rolling mill, the ABB BCU-12 3AUA000110430 enables precise torque control of rolling motors, ensuring consistent thickness of steel sheets. Its robust anti-interference design withstands the high electromagnetic noise generated by welding equipment and heavy machinery on the production floor.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Choose the ABB BCU-12 3AUA000110430 if you are deploying ABB ACS880 drives for applications requiring multi-mode control and comprehensive protection.
2. Select optional communication expansion modules based on your existing control system protocol (e.g., PROFINET for Siemens PLCs, Ethernet/IP for Allen-Bradley systems).
3. Verify the operating temperature range of your application environment; opt for additional cooling if operating above +60°C.

Precautions

1. Ensure the ABB BCU-12 3AUA000110430 is powered off during installation and wiring to prevent electrical short circuits.
2. Do not modify the unit’s firmware without ABB’s official authorization, as this may cause control failures and void the warranty.
3. Use only ABB-certified accessories and cables to maintain communication stability and protection performance.
4. Perform regular firmware updates (via ABB Drive composer software) to ensure compatibility with the latest drive features and security patches.
