ABB AO820

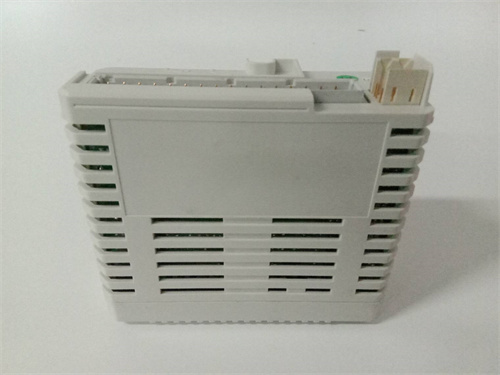

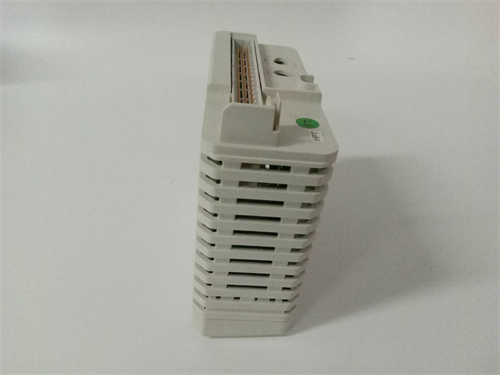

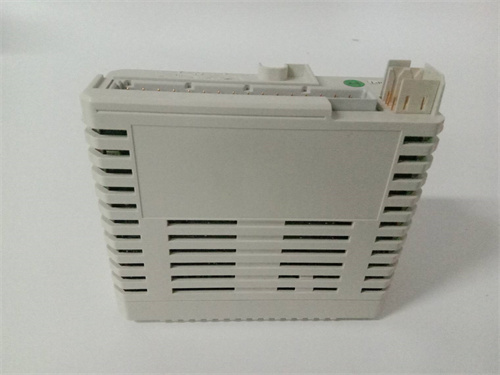

The ABB AO820 is a versatile analog output module designed for seamless integration with ABB’s AC 800M and AC 800XA distributed control systems, enabling precise signal conversion and control command execution for industrial field devices. Equipped with 8 independent output channels, the ABB AO820 supports a wide range of standard analog signals, making it ideal for regulating valves, variable frequency drives (VFDs), and other actuators in process automation. Engineered with industrial-grade durability, the ABB AO820 operates reliably in harsh environments with extreme temperatures, high vibration, and strong electromagnetic interference, ensuring uninterrupted performance in critical production processes. This module serves as a key link between the control system and field equipment, translating digital control signals into accurate analog outputs to maintain optimal process parameters and boost production efficiency.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

The ABB AO820 is a versatile analog output module designed for seamless integration with ABB’s AC 800M and AC 800XA distributed control systems, enabling precise signal conversion and control command execution for industrial field devices. Equipped with 8 independent output channels, the ABB AO820 supports a wide range of standard analog signals, making it ideal for regulating valves, variable frequency drives (VFDs), and other actuators in process automation. Engineered with industrial-grade durability, the ABB AO820 operates reliably in harsh environments with extreme temperatures, high vibration, and strong electromagnetic interference, ensuring uninterrupted performance in critical production processes. This module serves as a key link between the control system and field equipment, translating digital control signals into accurate analog outputs to maintain optimal process parameters and boost production efficiency.

Product Parameters

Parameter Category Specifications
Output Channels 8 independent analog outputs
Supported Signal Ranges 4–20 mA, 0–20 mA, 0–10 V, ±5 V, ±10 V (configurable per channel)
Output Accuracy ±0.1% of full scale (at 25°C); ±0.3% over operating temperature range
Resolution 16 bits
Isolation Rating Channel-to-system: 1500 V AC; Channel-to-channel: 500 V AC
Operating Temperature -40°C to +70°C
Power Supply 24 V DC (18–32 V DC)
Communication Protocol PROFIBUS DP, MODBUS TCP (via host controller)
Dimensions (W×H×D) 25 mm × 210 mm × 120 mm
Certifications CE, UL, ATEX, IECEx, CSA

Advantages and Features

  1. Precision Output Control

    The ABB AO820 delivers 16-bit resolution and ±0.1% full-scale accuracy, ensuring that control signals sent to field actuators are highly consistent and reliable. This precision is critical for applications such as flow rate regulation and pressure control, where even minor signal deviations can impact product quality.

  2. Flexible Channel Configuration

    Each channel of the ABB AO820 can be independently programmed for different signal types, eliminating the need for multiple specialized modules and reducing system complexity. The module supports both current and voltage outputs, making it compatible with a broad range of industrial actuators.

  3. Rugged Design for Harsh Environments

    Built with a corrosion-resistant housing and wide operating temperature range, the ABB AO820 thrives in demanding industries like oil and gas, chemical processing, and power generation. Its high isolation ratings protect the module and host controller from voltage surges and ground loops.

  4. Hot-Swap Capability for Minimized Downtime

    The ABB AO820 supports hot swapping, allowing maintenance personnel to replace or upgrade the module without shutting down the entire control system. This feature significantly reduces production downtime and improves overall plant availability.

Application Cases in Application Fields

  1. Chemical Processing Industry

    In a large-scale chemical plant, the ABB AO820 is used to control the opening degree of control valves in reactor feed lines. Its precise output signals ensure accurate dosing of raw materials, maintaining consistent reaction conditions and reducing waste. The module’s anti-interference design withstands the high EMI generated by nearby pumps and motors.

  2. HVAC and Building Automation

    A commercial building automation system deploys the ABB AO820 to regulate variable air volume (VAV) boxes and chilled water valves. The module’s flexible channel configuration allows it to output both 4–20 mA signals for valve control and 0–10 V signals for fan speed adjustment, simplifying system design.

  3. Water and Wastewater Treatment

    A municipal wastewater treatment plant uses the ABB AO820 to control sludge pumps and aeration blowers. The module’s rugged construction resists the humid and corrosive environment of the treatment facility, while its high accuracy ensures optimal aeration levels for efficient biological treatment processes.

Comparisons with Competing Products

Feature ABB AO820 Siemens SM 332 (8-channel) Allen-Bradley 1756-OF8
Output Signal Range 4–20 mA, 0–10 V, ±5 V, ±10 V 4–20 mA, 0–10 V 4–20 mA, 0–10 V
Channel-to-Channel Isolation 500 V AC 250 V AC 500 V AC
Hot Swap Support Yes No Yes
Operating Temperature -40°C to +70°C -25°C to +60°C -40°C to +70°C
Cost per Channel Low Medium High
The ABB AO820 offers a more comprehensive range of output signals compared to competing modules, making it a more versatile choice for mixed-signal applications. Its higher channel-to-channel isolation rating also provides better protection against electrical interference, while its low cost per channel delivers superior value for large-scale installations.

Selection Suggestions and Precautions

Selection Suggestions

  1. Choose the ABB AO820 for projects requiring 8-channel analog output with mixed signal types (current + voltage), especially in harsh industrial environments.
  2. Verify compatibility with your existing ABB AC 800M/800XA control system; for third-party controllers, confirm support for PROFIBUS DP or MODBUS TCP protocols.
  3. Calculate the number of modules needed based on the total number of actuators, leveraging the module’s high channel density to minimize equipment and installation costs.

Precautions

  1. Ensure proper wiring and grounding during installation to maximize the ABB AO820’s performance and prevent signal distortion.
  2. Do not exceed the module’s specified output current and voltage limits, as this may damage the module or connected field devices.
  3. Follow ABB’s official guidelines when performing hot swapping to avoid communication disruptions or system errors.
  4. Conduct regular calibration (every 6–12 months) to maintain the module’s output accuracy, especially in high-precision control applications.
