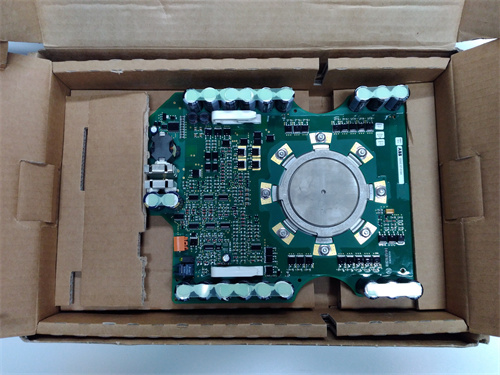

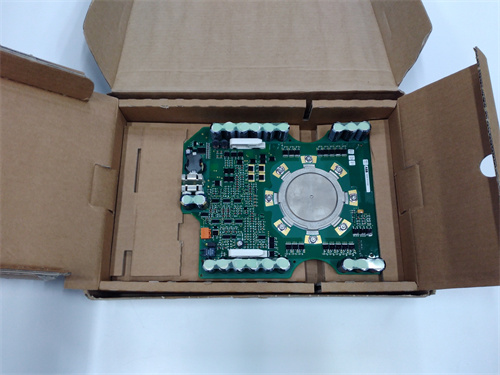

ABB 5SHX1060H003

Description

Product Description

Product Parameters

Advantages and Features

1. Extreme High-Current Handling: ABB 5SHX1060H003 supports 600A continuous current and 1500A peak current, making it capable of powering heavy-load industrial equipment such as steel rolling mill motors, large generators, and mining conveyor drives, outperforming standard IGBT modules in high-demand scenarios.
2. Superior Thermal Management: With an ultra-low thermal resistance of 0.015°C/W and a hermetically sealed package, ABB 5SHX1060H003 efficiently dissipates massive heat generated under full load, preventing thermal degradation and ensuring stable operation even in high-temperature industrial environments without complex cooling systems.
3. Seamless PLC Ecosystem Integration: Natively compatible with ABB’s AC 800M/AC 500 PLCs and industrial drive control units, ABB 5SHX1060H003 synchronizes power switching with PLC logic commands in real time, enabling precise adjustment of power output based on dynamic production demands.
4. Reliable Fast Switching Performance: Operating at a maximum switching frequency of 12kHz, the module minimizes switching losses while maintaining high power conversion efficiency, ensuring responsive control for PLC-driven systems that require millisecond-level power regulation.
5. Industrial-Grade Durability: Built with aluminum nitride substrate and reinforced electromagnetic shielding, ABB 5SHX1060H003 resists voltage spikes, mechanical vibration, and environmental contaminants, extending service life and reducing downtime in harsh industrial settings.

Application Cases in Application Fields

1. Steel Mill Rolling Drives: A large integrated steel mill in Asia integrated ABB 5SHX1060H003 into its hot rolling mill drive systems. The module’s 600A continuous current capacity handled the heavy load of the mill’s main motors, while its superior thermal management prevented overheating during 24/7 operation, increasing production uptime by 16% and reducing energy consumption by 11%.
2. Thermal Power Plant Generators: A European thermal power plant deployed ABB 5SHX1060H003 in its generator excitation systems, regulating the power output of turbine generators. The module’s high-voltage tolerance and stable switching ensured compliance with grid frequency standards, and its PLC integration enabled remote monitoring and adjustment, enhancing the plant’s operational reliability.
3. Mining Heavy Conveyor Systems: A global mining company adopted ABB 5SHX1060H003 to power its long-distance coal conveyor drives in underground mines. The module’s peak current handling (1500A) supported the high-startup load of the conveyors, and its rugged design withstood underground vibration and dust, reducing maintenance frequency by 23%.
4. Industrial Compressor & Pump Drives: A petrochemical plant in the Middle East used ABB 5SHX1060H003 in its high-pressure natural gas compressor drives. The module’s precise power regulation maintained consistent pressure in pipeline networks, and its overcurrent protection prevented damage from sudden load surges in the harsh desert environment.

Comparisons with Competing Products

Selection Suggestions

1. Heavy-Duty Industrial Power Systems: Prioritize ABB 5SHX1060H003 for applications requiring ultra-high current (600A continuous) and voltage (1700V DC) handling, such as steel mill drives, power plant generators, and mining conveyor systems.
2. ABB PLC & Drive Ecosystems: Choose this module if your facility uses ABB AC 800M/AC 500 PLCs or ACS880 industrial drives, as its native compatibility eliminates integration issues and leverages ABB’s Control Builder M software for full functionality.
3. 24/7 Continuous Operation Scenarios: Opt for ABB 5SHX1060H003 for mission-critical systems that demand non-stop operation, thanks to its high MTBF (≥340,000 hours) and robust thermal design that minimizes downtime.
4. Extreme Temperature Environments: Select this model for projects in high-temperature industrial settings, as its low thermal resistance and wide junction temperature range (-40°C to +150°C) ensure stable performance without additional cooling investments.

Precautions

1. Voltage & Current Compliance: Ensure the application’s operating voltage and current do not exceed the module’s rated 1700V DC and 600A continuous limits to avoid permanent damage to ABB 5SHX1060H003.
2. Thermal Management Setup: Install compatible liquid or forced-air cooling systems to maintain the IGBT junction temperature below 150°C, as overheating will trigger protection mechanisms and interrupt system operation.
3. Gate Drive Wiring: Use shielded cables for gate drive signals (15V/-5V) to minimize electromagnetic interference, which can cause false switching and compromise the module’s performance.
4. Static & Physical Protection: Handle ABB 5SHX1060H003 with anti-static wristbands and mats during installation, as electrostatic discharge can damage the IGBT chip and internal components.
5. Authorized Maintenance: Only ABB-certified engineers or qualified power electronics technicians should perform installation, calibration, or replacement to preserve the module’s performance, safety certifications, and warranty validity.
