ABB 3BSE042237R2 PP836A-P

Description

Product Description

Product Parameters

• Brand & Model: ABB, 3BSE042237R2 PP836A-P
• Device Type: Industrial HMI Panel for PLC Systems
• Power Supply: 24V DC, with ±10% voltage tolerance
• Display Screen: 10.4-inch resistive touchscreen, 1024×768 resolution, 500 nits brightness
• Processor: 32-bit ARM Cortex-A8, 800 MHz clock speed
• Memory: 512 MB DDR3 RAM, 4 GB embedded flash memory
• Supported Communication Protocols: Profinet, Ethernet/IP, Modbus TCP, OPC UA, RS-485

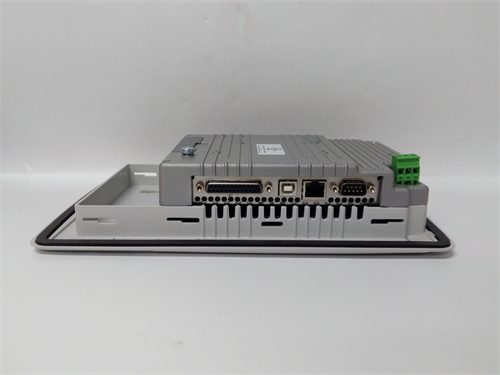

• Communication Ports: 2 x Ethernet ports (10/100 Mbps), 1 x RS-485 serial port, 1 x USB 2.0 port
• Operating Temperature: -20°C to +60°C
• Protection Rating: IP65 (front panel), IP20 (rear housing) (per IEC 60529 standard)
• Dimensions (W × D × H): 285 mm × 220 mm × 55 mm
• Weight: 1.8 kg
• Compatible PLC Systems: ABB AC 800M, ABB AC 800XA, ABB Freelance 4000, third-party PLCs (Siemens, Rockwell)
• Certifications: CE, UL, CSA, ATEX, IECEx

Advantages and Features

1. Clear Visual & Intuitive Operation: The 10.4-inch high-resolution touchscreen of ABB 3BSE042237R2 PP836A-P delivers sharp process visualization, while the resistive touch technology supports operation with gloves—ideal for industrial environments where operators wear protective gear.
2. Strong Cross-Platform Compatibility: Supporting multiple mainstream industrial protocols, ABB 3BSE042237R2 PP836A-P seamlessly connects with ABB’s own PLC systems and third-party controllers, eliminating communication barriers in mixed-equipment automation networks.
3. Rugged Industrial Design: With an IP65-rated front panel, the HMI panel is dustproof and waterproof, capable of withstanding harsh conditions in factories, power plants, and outdoor industrial sites. The durable housing also resists mechanical impacts and long-term wear.
4. Reliable Performance & Stable Operation: The 800 MHz ARM processor and optimized memory configuration ensure smooth running of complex HMI applications, while the wide operating temperature range guarantees consistent performance in extreme hot or cold environments.
5. Easy Customization & Maintenance: Compatible with ABB’s HMI configuration software, ABB 3BSE042237R2 PP836A-P allows flexible customization of process screens, alarms, and data logs. The modular rear housing and clear port labeling simplify wiring and on-site troubleshooting.

Application Cases in Industry

• Energy Sector: ABB 3BSE042237R2 PP836A-P is widely used in thermal power plants, hydropower stations, and solar farms as the on-site operation terminal. It displays real-time data of generators, transformers, and power distribution systems, enabling operators to monitor and adjust equipment parameters remotely.
• Oil & Gas Industry: In oil refineries and pipeline control stations, the HMI panel visualizes pressure, flow, and temperature data of oil and gas transmission lines. It also provides one-click operation for valve control and safety alarm feedback, ensuring safe and efficient production.
• Automotive Manufacturing: Integrated into automated assembly lines, ABB 3BSE042237R2 PP836A-P monitors the operation status of robotic arms, conveyor belts, and welding equipment. It displays production counts, fault alerts, and maintenance reminders, optimizing production line management.
• Chemical Industry: At chemical processing plants, the HMI panel controls reaction vessel parameters (temperature, pressure, mixing speed) and displays chemical inventory data. It supports interlocking operation with safety systems to prevent operational hazards.

Comparison with Competitors

Selection Suggestions

1. Match Project Visualization Needs: ABB 3BSE042237R2 PP836A-P is ideal for projects requiring a 10-inch class high-resolution HMI, such as medium-to-large industrial sites that need clear display of complex process data and multi-functional operation interfaces.
2. Verify System Compatibility: Confirm that your existing PLC system (whether ABB or third-party brands like Siemens, Rockwell) supports the communication protocols of the HMI panel to ensure seamless data transmission with ABB 3BSE042237R2 PP836A-P.
3. Evaluate Operating Environment: If the HMI will be installed in dusty, wet, or extreme-temperature areas (e.g., outdoor power stations, chemical plants), its IP65 protection rating and wide temperature range make it a more reliable choice than competitors with lower environmental adaptability.
4. Consider Long-Term Usability: For projects requiring frequent operator interaction and customized process screens, the intuitive configuration software and glove-friendly touchscreen of ABB 3BSE042237R2 PP836A-P reduce training costs and improve operational efficiency.

Precautions

1. Installation: When installing ABB 3BSE042237R2 PP836A-P, avoid direct exposure to sunlight and high-temperature heat sources to prevent screen damage. Ensure the installation surface is flat and use genuine ABB mounting brackets to enhance stability against vibration.
2. Wiring & Configuration: Use shielded cables for communication and power wiring to reduce electromagnetic interference. Configure the HMI panel via ABB’s official software to avoid compatibility issues and ensure full functionality of all features.
3. Daily Maintenance: Regularly clean the touchscreen with a soft, lint-free cloth and mild cleaning agents (avoid corrosive chemicals). Inspect the wiring terminals periodically for looseness or corrosion to maintain stable communication.
4. Storage: Prior to installation, store ABB 3BSE042237R2 PP836A-P in its original packaging in an environment with a temperature of 5°C to 35°C and relative humidity ≤ 60%. Protect it from moisture, dust, and mechanical impact.
5. Certification Compliance: For use in explosive environments (e.g., oil refineries, chemical plants), confirm that the HMI panel holds valid ATEX and IECEx certifications to meet on-site safety regulations.
