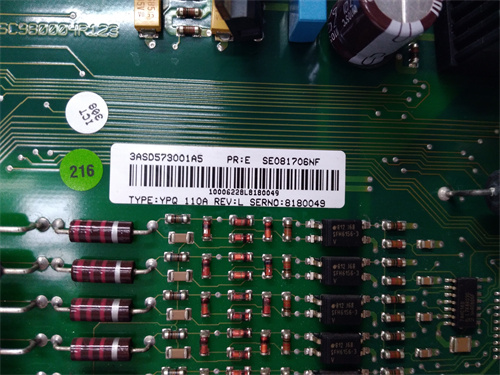

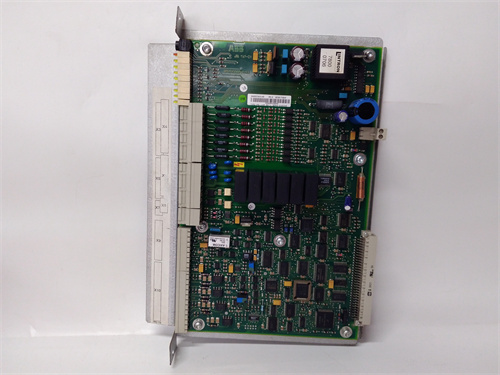

ABB YPQ110A 3ASD573001A5

Description

Product Overview

The ABB YPQ110A 3ASD573001A5 is a highly sophisticated modular motor management relay, specifically the ABB CM-MPS.11S module, designed for integration into the ABB Ability™ System 800xA and Advant OCS automation environments. This module serves as a critical component within a motor starter or protection cabinet, functioning as a decentralized “intelligence node” for medium-voltage motors or critical low-voltage motors. Its primary role is to provide comprehensive protection, control, and advanced condition monitoring for electric motors, communicating vital data directly to the central DCS. For in-depth technical manuals, application guides, and configuration software details, please refer to the official resource: ABB YPQ110A 3ASD573001A5. The deployment of the ABB YPQ110A 3ASD573001A5 represents a strategic move towards intelligent motor control, transforming a simple starter into a source of operational and diagnostic data for predictive maintenance and optimized plant performance.

Product Parameters and Specifications

• Function: Modular Motor Protection and Management Relay (CM-MPS.11S Module).
• Protection Functions: Comprehensive suite including overload (thermal replica), short-circuit, earth-fault (restricted and sensitive), phase unbalance, undercurrent, jam protection, and start-up supervision.
• Control Functions: Direct control of contactors or circuit breakers, offering start/stop commands, auto-reset, and customizable control sequences.
• Monitoring: Continuous monitoring of motor current, voltage, power, power factor, energy consumption, and thermal capacity used.
• Communications: Equipped with multiple communication protocol support, commonly PROFIBUS DP-V1 and Modbus RTU, enabling seamless integration with ABB AC 800M or other third-party PLCs/DCS.
• Inputs/Outputs: Includes digital inputs for status feedback (e.g., circuit breaker position, external trip) and digital outputs for alarms, trips, and control.
• Analog Output: Provides a configurable 4-20mA output for a key parameter like motor load or thermal capacity.
• Display: Features a local graphical or text-based display for on-site parameterization, status indication, and fault reading.

Advantages and Key Features

The ABB YPQ110A 3ASD573001A5 offers a significant leap over traditional thermal overload relays and basic protection devices. Its core advantage is advanced, microprocessor-based protection with high accuracy and flexibility, allowing precise tailoring of protection curves to the specific motor and process. It enables predictive maintenance by monitoring operational trends and thermal stress, helping to prevent unexpected failures. The module provides detailed diagnostic information, such as the cause of the last trip (e.g., phase-to-phase fault, locked rotor), stored in non-volatile memory for quick troubleshooting. The dual-channel communication capability ensures reliable integration into modern plant networks, making data from the ABB YPQ110A 3ASD573001A5 available for asset management systems. Its modular design allows for easy mounting on DIN rail and straightforward connection to current transformers (CTs) and voltage sources.

Application Cases in Industry

This motor management relay is essential for protecting and controlling high-value rotating assets. In Water and Wastewater Treatment, it safeguards and monitors critical raw water intake pumps, sludge centrifuges, and aeration blowers. Within Mining and Minerals Processing, it protects crusher motors, conveyor drives, and large slurry pumps from damaging electrical and mechanical faults. For Oil & Gas operations, the ABB YPQ110A 3ASD573001A5 is used on offshore platform seawater injection pumps, gas compressor motors, and pipeline booster pumps. In Power Generation, it manages coal handling plant motors, circulating water pumps, and important auxiliary drives. Any industry with medium-voltage motors or mission-critical low-voltage motors can leverage the intelligence of this module.

Comparison with Competing Products

Compared to basic thermal-magnetic circuit breakers or bimetal overload relays, the ABB YPQ110A 3ASD573001A5 provides vastly superior functionality, accuracy, and data integration. It competes directly with other intelligent motor protection relays such as the Siemens SIPROTEC Compact, the Schneider Electric Sepam, or the Eaton EPM series. Key differentiators for the ABB CM-MPS.11S module often lie in its native integration depth with ABB’s 800xA DCS, where it can be represented as a single, fully configurable object in the control strategy. The specific combination of protection algorithms, communication protocol options, and the physical form factor are primary points of comparison. Its modular nature within ABB’s motor starter family (e.g., combined with a contactor module) offers a cohesive system solution.

Selection Suggestions and Precautions

• Selection Advice:
  1. Motor Specifications: The selection is fundamentally based on the motor’s full load current (FLC), voltage, and starting characteristics (e.g., Direct-On-Line, Star-Delta). The ABB YPQ110A 3ASD573001A5 must be rated for the motor’s current range via appropriate Current Transformers (CTs).
  2. Protection Requirements: Identify all necessary protection functions (earth fault, phase loss, etc.) required by the application and ensure the module supports them.
  3. System Integration: Choose the communication protocol version (PROFIBUS DP address setting, Modbus address) that matches your plant network. Plan the integration into the DCS/PLC software.
  4. Accessories: Ensure you select the correct current transformer set, voltage connection modules, and communication cables required for a complete installation.
• Important Precautions:
  1. CT Installation and Wiring: Incorrect installation or shorting of Current Transformers (CTs) is extremely hazardous and can lead to explosive failure. Wiring must be performed by qualified electricians following all safety codes.
  2. Configuration and Testing: The module must be meticulously configured before being placed into service. This includes setting all protection thresholds, motor FLC, starting time, and communication parameters. Functional testing of trip commands and alarms is mandatory.
  3. Firmware Updates: Use only official ABB firmware and configuration tools (e.g., PCM600 or specific MPS software) for updates or configuration changes to ensure compatibility and safety.
  4. Environmental Conditions: Install the module in a suitable enclosure that protects it from excessive dust, moisture, and temperature, adhering to its specified IP rating and ambient temperature range.
