ABB YPP110A

Description

Product Description

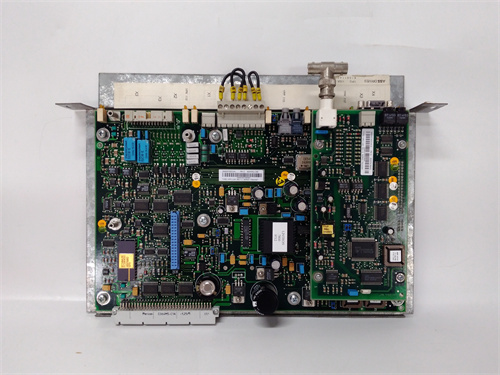

The ABB YPP110A is a specialized control module, specifically identified as a Thyristor Firing Board or Power Control Interface Module, within ABB’s portfolio of power electronics and industrial heating control components. This module serves as the intelligent interface and firing circuit for thyristor stacks (SCRs) used in phase-angle power control applications. The primary function of the YPP110A is to generate the precisely timed, high-current gate pulses required to trigger and control the conduction of thyristors, thereby regulating the AC voltage or current delivered to a load such as an electric heater, transformer, or motor starter. It typically handles synchronization with the mains voltage, accepts a standard analog control signal (e.g., 4-20 mA), and implements closed-loop control based on feedback from current transformers (CTs). The ABB YPP110A is engineered for reliable operation in the electrically noisy environments typical of power conversion equipment, making it a critical component for achieving efficient and stable power regulation.

Product Parameters

• Module Type: Thyristor Firing / Power Controller Board
• Typical Application: Phase-angle control for AC power regulation in industrial heating, soft starting, and lighting.
• Control Input: Standard analog signal (e.g., 0-10V DC, 4-20 mA) representing the demanded power level.
• Synchronization: Requires connection to the mains supply voltage (e.g., 110V AC or 230V AC) for phase-locked firing.
• Output: Generates isolated gate pulse trains to fire multiple thyristors in single or multi-phase configurations.
• Feedback Inputs: Includes inputs for current transformer (CT) signals for closed-loop current control and protection.
• Protection Features: Typically includes diagnostics for sync loss, pulse failure, overcurrent, and short-circuit detection.
• Configuration: Often configurable via potentiometers or DIP switches for parameters like current limit, control characteristic (linear/squared), and soft-start time.
• Power Supply: Has an internal power supply, typically powered from the control circuit or a separate auxiliary voltage.
• Mounting: Printed circuit board designed for mounting inside a power controller or drive cabinet.

Advantages and Features

• Precise and Stable Power Control: The ABB YPP110A enables accurate phase-angle firing, allowing for smooth, linear control of power to the load, which is essential for temperature stability in heating processes and smooth acceleration in motor starting.
• Robust Design for Harsh Environments: Built with high-noise immunity and isolation to function reliably in cabinets containing high-power switching devices, protecting the control logic from transients and interference.
• Integrated Protection and Diagnostics: Provides essential protection for the thyristors and load by monitoring sync, gate pulses, and load current. Diagnostic indicators aid in quick troubleshooting.
• Application Flexibility: Can be configured for various control modes (e.g., constant current, constant voltage) and load types, making it adaptable to different industrial processes.
• Proven Reliability: As part of ABB’s power control range, this module benefits from extensive field experience and is designed for continuous industrial duty.

Application Cases in Various Fields

• Industrial Process Heating: Controlling power to electric furnaces, ovens, and kilns in the glass, ceramic, and metal treatment industries.
• Motor Soft Starters: Serving as the firing control board in ABB soft starters (e.g., for pumps, fans, compressors) to provide smooth ramp-up and reduce mechanical stress.
• Lighting Control: Regulating the intensity of large incandescent or halogen lighting systems in studios, theaters, or public spaces.
• Laboratory and Test Equipment: Providing variable AC power for environmental test chambers or material testing rigs.
• Electrochemical Power Supplies: Controlling the output of DC power supplies used in plating or electrolysis processes.

Comparisons with Competing Products

1. Vs. Simple DIY Trigger Circuits: Basic RC or transistor-based trigger circuits lack the precision, closed-loop control, and comprehensive protection of the engineered ABB YPP110A. The ABB module ensures reliable and safe operation of expensive thyristors and the load.
2. Vs. Digital Power Controllers (with IGBTs/PWM): Modern controllers using IGBTs and PWM switching offer different performance (higher frequency, often lower harmonic distortion). The YPP110A based on thyristors is often favored for its simplicity, robustness, and cost-effectiveness in high-current, line-frequency applications like heating and soft starting.
3. Vs. Other OEM Thyristor Firing Boards (e.g., Eurotherm, Siemens): Competing manufacturers offer similar modules. The ABB YPP110A is optimized for ABB’s own thyristor power stacks and overall system design. Its advantage lies in guaranteed compatibility, performance, and support within the ABB ecosystem.
4. Key Differentiator: It is a dedicated, application-hardened interface board that translates a low-power control signal into robust, synchronized firing commands for high-power thyristors, with built-in safeguards.

Selection Suggestions and Precautions

1. Exact Replacement Verification: The YPP110A is commonly a spare part. Verify the exact module designation from the existing board or the controller manual. Ensure the replacement ABB YPP110A matches the voltage ratings (mains sync voltage, control voltage) and phase configuration (single/three-phase) of the original.
2. Synchronization Voltage is Critical: The sync connection must be taken from the same phase(s) as the power being controlled and must be stable. Incorrect or lost sync voltage will cause complete control failure and could damage the thyristors or load.
3. Matching Control Signal and Feedback: Confirm the control input type (e.g., 4-20 mA) matches your controller’s output. Ensure the current transformers (CTs) used for feedback have the correct ratio and are wired with proper polarity to the module.
4. High Voltage/Current Hazard: Installation and testing involve working near lethal voltages and high currents. Only qualified personnel should perform this work following strict lockout/tagout (LOTO) and electrical safety procedures.
5. Proper Configuration: After installation, configure the module’s settings (e.g., current limit, minimum/maximum output) according to the load specifications. Incorrect settings can lead to poor control or damage.
6. Thermal Management: Ensure the module is installed in a well-ventilated area of the cabinet. Verify that the thyristor heatsinks are clean, properly seated, and have adequate airflow or coolant flow.
7. Source from Authorized Channels: To guarantee authenticity and correct functionality, procure the ABB YPP110A module from ABB or an authorized industrial automation distributor. Non-genuine parts can lead to unpredictable performance and safety risks.
8. Consider System Age: For very old systems, evaluate the availability of this module and consider upgrading the entire power control system to a modern digital regulator for improved features, efficiency, and future support.
