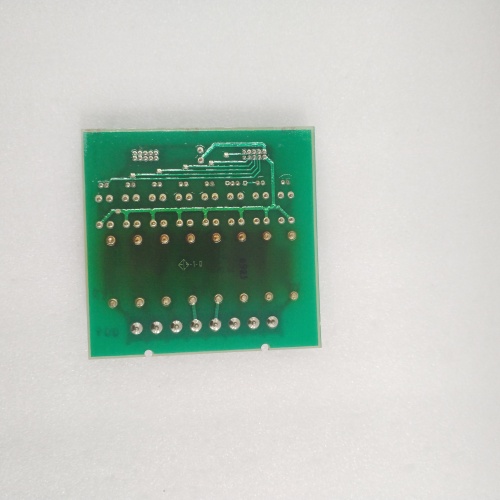

ABB YB560100-EA S3

Description

Product Description

The ABB YB560100-EA S3 is a high-performance Motor Protection Relay or Intelligent Motor Controller from ABB’s extensive range of protection and control devices. This device is designed to provide comprehensive protection, control, and monitoring for medium-voltage or high-power three-phase AC motors. The YB560100-EA S3 integrates advanced measurement, protective functions, and communication capabilities into a single unit, replacing multiple discrete components like overload relays, undercurrent monitors, and thermal models. It is engineered to prevent motor damage from faults such as overload, phase unbalance, locked rotor, earth faults, and short circuits, while also providing detailed information on motor health and performance. The inclusion of “S3” in the model indicates a specific performance level or feature set within the product series. The ABB YB560100-EA S3 is a critical component for ensuring the reliability, safety, and efficiency of motor-driven systems in demanding industrial environments.

Product Parameters

• Device Type: Numerical Motor Protection Relay / Intelligent Motor Controller
• Rated Current: Designed for a specific motor current range (e.g., up to several hundred Amperes). The exact range is defined by the model variant.
• Supply Voltage: Operates on a standard control voltage (e.g., 24-48V DC, 110-240V AC/DC).
• Protection Functions: Includes a comprehensive suite:
  • Thermal overload protection (with memory and time constants)
  • Short-circuit (instantaneous and time-delayed) protection
  • Earth fault protection (sensitive and instantaneous)
  • Phase unbalance and loss of phase protection
  • Undercurrent / load loss protection
  • Jam (stall) protection
  • Start-up supervision and excessive start time protection
  • Bearing temperature monitoring (via external sensors)
• Control Functions: Direct control of circuit breaker or contactor (trip and close outputs), programmable logic functions, auto-reclose.
• Measurement: Three-phase currents, earth fault current, voltage (if equipped), power, power factor, energy, motor thermal capacity used.
• Communication Interfaces: Multiple ports, typically including RS-485 for Modbus RTU and an Ethernet port for Modbus TCP/IP, PROFINET, or IEC 61850.
• Display: Large graphical LCD for local readout, configuration, and event logging.
• Standards: Compliant with IEC 60255, IEC 60947, and other relevant standards.

Advantages and Features

• Comprehensive Motor Protection: The ABB YB560100-EA S3 consolidates all essential protection functions into one integrated and coordinated device, simplifying panel design and improving motor safety.
• Advanced Thermal Modeling: Utilizes a sophisticated thermal model that accurately replicates motor heating and cooling, considering positive and negative sequence currents, providing optimal overload protection and enabling maximum motor utilization without risk of damage.
• Rich Diagnostic and Monitoring Data: Provides real-time operational data (current, power, thermal capacity) and detailed event logs with time stamps, enabling predictive maintenance and rapid root cause analysis after a trip.
• High Flexibility and Programmability: Protective setpoints, time delays, logic functions, and communication mapping are fully configurable via front panel or software, allowing precise adaptation to the specific motor and application.
• Seamless System Integration: With support for modern industrial protocols (Modbus TCP, PROFINET, IEC 61850), the YB560100-EA S3 easily integrates into DCS, SCADA, and plant asset management systems, enabling centralized monitoring and control.

Application Cases in Various Fields

• Water & Wastewater Treatment: Protecting critical raw water intake pumps, aeration blowers, and sludge centrifuges from overload and phase failure.
• Mining & Minerals Processing: Providing reliable protection for crusher motors, conveyor drives, and slurry pumps in harsh, remote environments.
• Oil & Gas: Safeguarding seawater lift pumps, compressor motors, and firewater pumps on offshore platforms and refineries.
• Power Generation: Protecting boiler feed pumps, induced draft (ID) fans, and cooling water pumps in thermal power stations.
• HVAC for Large Facilities: Monitoring and protecting large chiller and cooling tower fan motors in commercial buildings and data centers.

Comparisons with Competing Products

1. Vs. Traditional Thermal Overload Relays + Separate Protection Devices: The ABB YB560100-EA S3 offers vastly superior functionality, accuracy, diagnostics, and communication in a single package, reducing wiring, panel space, and engineering time compared to a component-based approach.
2. Vs. Other Brand Motor Protection Relays (e.g., Siemens, Schneider Electric, GE): Competitors offer similar devices (e.g., Siemens SIPROTEC, Schneider Electric Sepam). The YB560100-EA S3 competes on the depth of its motor-specific algorithms (thermal model), user interface intuitiveness, communication protocol support, and integration with ABB’s broader automation portfolio (e.g., drives, PLCs).
3. Vs. Basic Motor Starters: Simple combination starters offer only fundamental overload and short-circuit protection. The YB560100-EA S3 provides a complete protection and control solution for critical or expensive motors where downtime is costly.
4. Key Differentiator: Its strength lies in its advanced, application-specific motor thermal protection algorithm combined with modern connectivity, making it not just a protector but an intelligent motor management device.

Selection Suggestions and Precautions

1. Accurate Motor Data is Crucial: For correct setting, you need the motor’s full load current (FLC), service factor, locked rotor current, thermal time constants (if available), and starting method (DOL, soft starter, VFD).
2. Match Current Sensor (CT) Specifications: The relay requires external Current Transformers (CTs). Ensure the CT ratio, accuracy class (e.g., 5P10), and burden are correctly specified and matched to the relay’s input requirements.
3. Configure the Thermal Model Correctly: Proper configuration of the thermal overload protection, including the thermal time constant and cooling time constant, is the most critical setup step to ensure the motor is protected without nuisance tripping.
4. Plan Communication and Integration: Decide on the required communication protocol early. Configure the IP address, device ID, and data point mapping carefully to ensure successful integration with the control system.
5. Functional Testing Before Commissioning: Before energizing the motor, conduct primary injection testing to verify the CT wiring polarity and that the relay accurately measures current. Test each protection function by simulating faults (where possible) to ensure the relay trips as expected.
6. Use Configuration Software: Utilize ABB’s dedicated configuration and monitoring software (e.g., ABB Drive Composer or similar) for efficient setup, documentation, and future parameter adjustments.
7. Consider Redundancy for Critical Motors: For absolutely critical drives, consider implementing a redundant protection scheme, which may involve a second protection device or hardwired backup trips.
8. Regular Maintenance and Data Review: Periodically review the relay’s event log and thermal memory data. This practice can reveal developing issues like increasing bearing temperature or repetitive overloads before they cause a failure.
