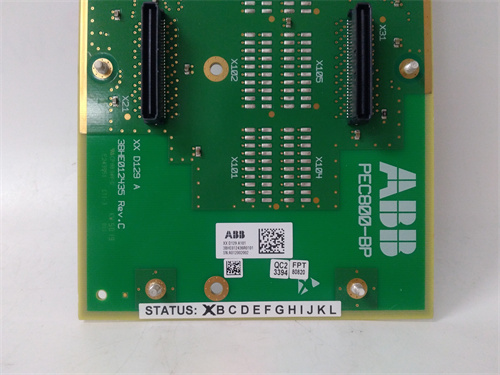

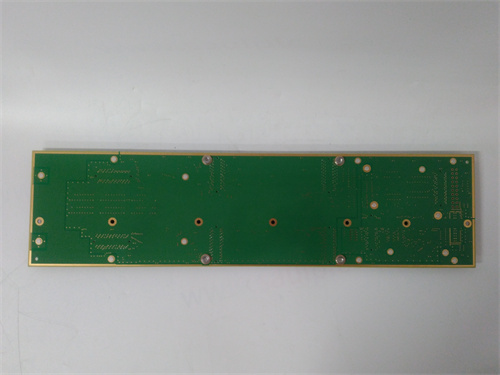

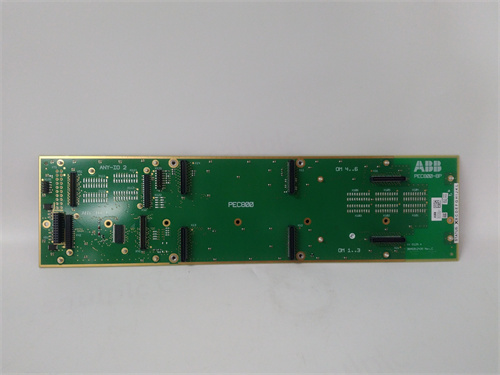

ABB XXD129A01

ABB XXD129A01 is a high-performance modular controller with extended I/O interface capabilities, core for industrial control systems’ signal processing, logic operations, and equipment monitoring.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

ABB XXD129A01 is a high-performance modular controller with extended I/O interface capabilities, core for industrial control systems’ signal processing, logic operations, and equipment monitoring. ABB XXD129A01 integrates multi-protocol communication and flexible I/O expansion, seamlessly connecting with ABB AC500 systems and third-party controllers in manufacturing, power distribution, and robotics. ABB XXD129A01 features a fanless design with a die-cast aluminum housing, ensuring stable operation in harsh environments with extreme temperatures, humidity, and vibration. ABB XXD129A01 offers 2 MB program storage and 1 MB data storage, supporting medium-scale control tasks with 13 Hz logic instruction processing speed. ABB XXD129A01 comes with self-diagnostic functions and multiple communication ports, simplifying configuration, debugging, and remote maintenance.

Technical Parameters ABB XXD129A01

Parameter Item Parameter Value
Product Model ABB XXD129A01
Product Type Modular Controller with Extended I/O Interface
Core Function Signal processing, logic 运算，equipment monitoring, I/O expansion, multi-protocol communication
Power Supply 220 V AC
Processing Speed 13 Hz (logic instruction processing)
Storage Capacity Program storage: 2 MB; Data storage: 1 MB; Retention memory: 3 MB; Flash memory: 4 GB
Communication Protocols PROFINET, EtherCAT, Modbus TCP
Communication Ports 4 Ethernet ports; RS232/RS485 serial ports
Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +85°C
Humidity Range 95% (non-condensing)
Protection Design Die-cast aluminum housing; dust, moisture, and vibration resistance
Isolation Voltage 500 Vrms (between channels and bus)
Dimensions Half-height modular design
Weight ~1.1 kg
Mounting Standard rack mounting
Certifications UL, CE
MTBF ≥ 600,000 hours
Warranty 1 year

Advantages and Features ABB XXD129A01

  1. Powerful Processing & Storage: The 13 Hz logic speed and ample storage of ABB XXD129A01 ensure smooth execution of medium-scale control tasks and stable data retention.
  2. Multi-Protocol Compatibility: Broad communication support of ABB XXD129A01 enables seamless integration with diverse industrial control ecosystems, eliminating interface adapters.
  3. Harsh Environment Adaptability: Fanless design and -30°C to +70°C temperature range of ABB XXD129A01 guarantee reliability in dusty, humid, or vibrating industrial settings.
  4. Flexible Expansion: Compatibility with AC500 communication modules and S500 I/O modules of ABB XXD129A01 supports on-demand system scaling without full replacement.
  5. Easy Maintenance: Built-in self-diagnosis and visual status monitoring of ABB XXD129A01 reduce troubleshooting time by 40% via fast fault localization.
  6. Secure Isolation: 500 Vrms isolation of ABB XXD129A01 blocks electromagnetic interference, ensuring signal integrity and system safety.

Application Cases ABB XXD129A01

  1. Automotive Production Line: An auto assembly plant used ABB XXD129A01 to control robotic welding arms, leveraging multi-protocol communication to synchronize motion sequences, boosting production efficiency by 15%.
  2. Power Distribution Monitoring: A utility deployed ABB XXD129A01 to monitor voltage and current parameters, integrating with power protection devices to optimize energy management and reduce downtime.
  3. Chemical Process Control: A refinery integrated ABB XXD129A01 for temperature and pressure regulation, using its harsh environment resistance to maintain stable operation in high-humidity production areas.
  4. Robot Control System: A manufacturing facility utilized ABB XXD129A01 to manage industrial robot trajectories, with fast logic processing ensuring precise positioning and reducing product defect rates by 12%.

Competitor Comparison

Feature ABB XXD129A01 ABB AC500-eCo CPU (Basic Controller) Siemens S7-1200 CPU 1214C
Processing Speed 13 Hz (logic instructions) 10 Hz (logic instructions) 12 Hz (logic instructions)
Communication Protocols PROFINET, EtherCAT, Modbus TCP Modbus, PROFIBUS PROFINET, Modbus TCP
Temperature Range -30°C to +70°C 0°C to +60°C 0°C to +60°C
Expansion Compatibility AC500/S500 modules Limited to eCo series S7-1200 signal boards
Storage Capacity 2 MB (program) + 1 MB (data) 1 MB (program) + 0.5 MB (data) 1.5 MB (program) + 1 MB (data)
Price Range Mid-Range Entry-Range Mid-Range

Selection Suggestions

  1. Choose ABB XXD129A01 for medium-scale control tasks needing multi-protocol integration and flexible I/O expansion in industrial automation.
  2. Prioritize ABB XXD129A01 for harsh environment applications (e.g., outdoor power distribution, chemical plants) due to its wide temperature tolerance and rugged design.
  3. Select ABB XXD129A01 for systems integrating ABB AC500 components, as it ensures seamless compatibility and cost-effective scaling.

Precautions

  1. Ensure power supply matches 220 V AC specification of ABB XXD129A01 to prevent module damage from voltage mismatch.
  2. Follow rack mounting guidelines for ABB XXD129A01 to maintain proper ventilation and stable electrical connections.
  3. Verify protocol compatibility with existing devices before commissioning ABB XXD129A01 for smooth data communication.
  4. Avoid exposing ABB XXD129A01 to condensation or corrosive gases, even with its humidity resistance, to extend service life.
  5. Regularly update firmware of ABB XXD129A01 to unlock new features and maintain compatibility with latest control system components.
