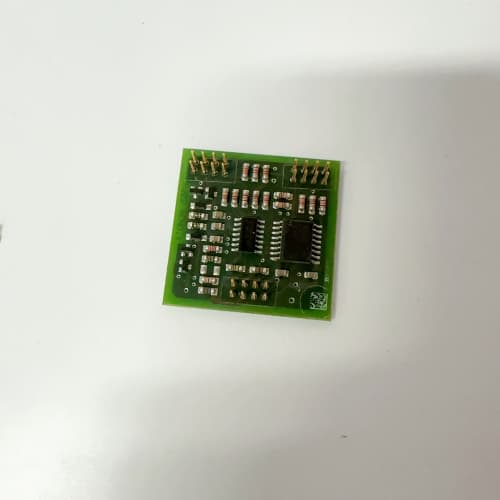

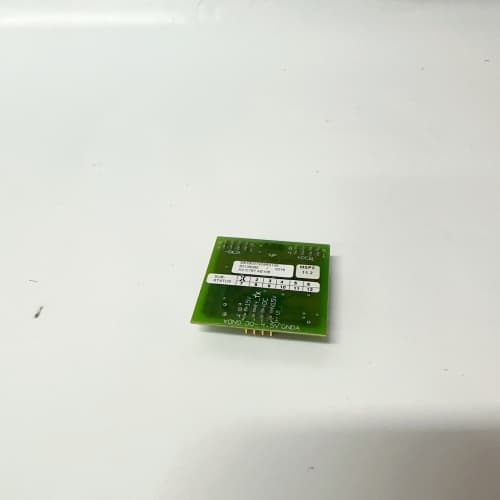

ABB XVC768116 3BHB007211R116

Description

Product Description

Product Parameters

1. Product Type: Industrial heavy-duty PLC/DCS analog control module, precision signal acquisition & output spare part
2. Working Voltage: DC 24V±15%, adaptive to industrial conventional DC power supply system
3. Analog Input Channels: 16 independent channels, input range 4-20mA/0-10V/±5V, precision ±0.03%FS
4. Analog Output Channels: 8 independent channels, output range 4-20mA/0-10V, precision ±0.05%FS
5. Signal Response Time: ≤2ms, real-time tracking and regulation of dynamic signal changes
6. Communication Interface: Profibus-DP/Modbus-TCP/ABB AC 800M native bus, triple protocol compatible
7. Operating Temperature Range: -45℃~+85℃, ultra-wide temperature heavy-duty industrial adaptation
8. Protection Grade: IP67, dustproof, waterproof, anti-mechanical impact and salt spray corrosion
9. Installation Method: 35mm standard DIN rail card installation + flange fixed dual mode, support hot swap
10. Insulation Resistance: ≥500MΩ (500V DC), excellent high-voltage electrical isolation performance
11. Surge Withstand Voltage: 6kV, strong resistance to power grid and on-site electromagnetic surge impact
12. Vibration Resistance: 5-2000Hz, 5G acceleration, compliant with IEC 60068-2-6 industrial vibration standard
13. Power Consumption: ≤8W, low power consumption design for heavy-duty modules
14. Electromagnetic Compatibility: Complies with IEC 61131-2, IEC 61000-4-2/3 industrial EMC standards
15. Design Service Life: Continuous operation ≥120,000 hours, heavy-duty industrial-grade long life
16. Calibration Function: Support online automatic calibration, remote manual calibration and offline precision calibration
17. Load Capacity: Output channel maximum driving load 1kΩ, adaptive to various industrial sensors and actuators

Advantages and Features

1. Ultra-high precision signal control, heavy-duty working condition adaptability: ABB XVC768116 3BHB007211R116 achieves industry-leading analog input and output precision, with closed-loop feedback control technology eliminating signal drift caused by temperature, voltage and load changes, ensuring stable signal output even in high-temperature, high-vibration heavy industrial working conditions.
2. Multi-channel high-density integration, efficient space utilization: Equipped with 16 input and 8 output independent analog channels, ABB XVC768116 3BHB007211R116 realizes high-density signal processing in a compact module structure, effectively saving the installation space of industrial control cabinets, and is suitable for the compact layout of heavy industrial control systems with numerous detection points.
3. Triple protocol compatibility, flexible system integration: Supporting Profibus-DP, Modbus-TCP and ABB native bus, ABB XVC768116 3BHB007211R116 can be seamlessly connected to ABB’s own control systems and other mainstream brand PLC/DCS systems, without additional protocol converters, realizing flexible integration of multi-brand industrial control systems.
4. Ruggedized industrial design, extreme environmental adaptability: Adopting IP67 high protection grade and ruggedized hardware structure, ABB XVC768116 3BHB007211R116 is resistant to dust, water immersion, salt spray corrosion and strong vibration, and can stably operate in the ultra-wide temperature range of -45℃~+85℃, adapting to the harsh working conditions of power plants, steel mills and offshore petrochemical platforms.
5. Multi-mode calibration & online configuration, convenient maintenance: ABB XVC768116 3BHB007211R116 supports three calibration modes and real-time online parameter configuration, which can complete signal precision adjustment and function setting without stopping the industrial control system, avoiding production losses caused by equipment downtime and reducing the difficulty of later maintenance.
6. Seamless compatibility with ABB control systems, high integration efficiency: As a dedicated supporting module for ABB’s core control systems such as AC 800M and Symphony Plus, ABB XVC768116 3BHB007211R116 realizes native plug-and-play access, without complex parameter debugging, shortening the system commissioning cycle by more than 40%.
7. Hot swap & dual installation mode, on-site application flexibility: Supporting live hot swap operation and dual installation modes of DIN rail and flange, ABB XVC768116 3BHB007211R116 can complete module replacement in a short time and adapt to different installation environments of control cabinets and on-site equipment, greatly improving the flexibility of on-site application.

Application Fields and Application Cases

Core Application Fields

Typical Application Cases

1. Thermal Power Industry: In the upgrade of the 1000MW ultra-supercritical unit control system of a large power plant, ABB XVC768116 3BHB007211R116 was adopted as the core analog control module to realize the precise acquisition and regulation of boiler temperature, main steam pressure, turbine speed and feed water flow parameters. Its ultra-high precision signal control ensured the stable operation of the unit, and the 6kV surge withstand voltage performance resisted the strong electromagnetic interference of the power plant, reducing the unit’s load fluctuation rate by 35% and improving the power generation efficiency by 9%.
2. Metallurgical Steel Industry: In the blast furnace smelting control system transformation of a large iron and steel enterprise, ABB XVC768116 3BHB007211R116 was used to control blast furnace top pressure, hot air temperature, coal injection flow and molten iron flow parameters. Its IP67 protection grade adapted to the high-dust, high-vibration environment of the steel mill, and the multi-channel integration feature simplified the control cabinet layout, realizing the centralized and precise control of the blast furnace smelting process and reducing the smelting energy consumption by 12%.
3. Offshore Petrochemical Industry: In the process control system of an offshore oil production platform, ABB XVC768116 3BHB007211R116 was adopted to collect and regulate the pressure, flow and temperature parameters of oil and gas transmission pipelines. Its salt spray corrosion resistance and wide temperature adaptability adapted to the harsh marine environment, and the triple protocol compatibility realized seamless docking with the platform’s multi-brand control system, ensuring the safe and stable operation of the oil production platform under extreme sea conditions.
4. Heavy Machinery Manufacturing Industry: In the control system of a large forging press equipment, ABB XVC768116 3BHB007211R116 was used to control the hydraulic pressure, forging speed and stroke position of the press. Its fast signal response time (≤2ms) realized real-time regulation of the forging process, and the ruggedized vibration resistance design adapted to the strong vibration working condition of the press equipment, improving the forging precision of the workpiece by 25% and the equipment operation stability by 40%.

Comparison with Competing Products

Selection Suggestions

1. Priority selection for ABB control systems: If the on-site industrial control system is ABB’s AC 800M, Advant OCS or Symphony Plus DCS system, ABB XVC768116 3BHB007211R116 is the first choice, with native plug-and-play compatibility, avoiding communication and calibration problems and maximizing the integration efficiency of the system.
2. Priority selection for heavy industrial high-precision control scenarios: For thermal power, metallurgy, offshore petrochemical and other heavy industrial fields with high requirements for analog signal control precision, ABB XVC768116 3BHB007211R116 with ultra-high precision signal processing is recommended to ensure the stability and precision of the industrial production process.
3. Selection for harsh industrial working conditions: In industrial sites with ultra-low/high temperature, high dust, strong vibration, salt spray corrosion or high electromagnetic interference, ABB XVC768116 3BHB007211R116 with IP67 protection grade and ultra-wide temperature adaptability is the optimal choice, which can effectively reduce equipment failures caused by environmental factors.
4. Priority selection for multi-point signal processing scenarios: If the industrial control system needs to collect and regulate a large number of analog signals, ABB XVC768116 3BHB007211R116 with 16 in/8 out high-density independent channels is selected to realize centralized signal processing, simplify the control cabinet layout and reduce the number of configured modules.
5. Selection for continuous production heavy industrial scenarios: For power plants, steel mills and petrochemical enterprises that require 24/7 continuous production, ABB XVC768116 3BHB007211R116 with hot swap and multi-mode online calibration functions is selected to realize non-stop maintenance and calibration, reducing production losses caused by equipment downtime.
6. Priority selection for multi-brand system integration: If the on-site industrial control system is a multi-brand PLC/DCS fusion layout, ABB XVC768116 3BHB007211R116 with triple protocol compatibility is selected, which can realize seamless docking with different brand systems without additional protocol converters, improving the efficiency of system integration.
7. Selection for heavy machinery control scenarios: For heavy machinery equipment with strong vibration working conditions such as forging presses, rolling mills and hoisting equipment, ABB XVC768116 3BHB007211R116 with ruggedized vibration resistance design is selected to ensure the stable operation of the module and the precision of the control process.

Precautions

1. Installation Norms: ABB XVC768116 3BHB007211R116 supports dual installation modes, ensure firm clamping when using DIN rail installation, and use ABB original flange fasteners for flange installation; keep a distance of ≥10cm from surrounding high-power heating equipment to ensure good heat dissipation, and avoid installing in the direct impact area of on-site mechanical equipment.
2. Power Supply Requirements: Provide pure DC 24V power supply for the module, and configure ABB dedicated surge protectors and power filters at the power input end to avoid damage to the internal precision chip caused by power grid surge and clutter; it is strictly forbidden to connect AC voltage or over-range DC voltage to the power input end.
3. Wiring Operation: Strictly distinguish analog input, analog output, communication and power supply terminals during wiring, and use color-coded wiring for easy identification; analog signal lines use double-shielded industrial special wires and single-end grounding, and the wiring terminals are tightened with a professional torque wrench (2.5N·m) to avoid poor contact caused by vibration.
4. Hot Swap Operation: Although hot swap is supported, it is necessary to disconnect the corresponding signal channel and load first before plugging and unplugging the module to avoid damage to the module or the main control system caused by instantaneous current impact; hold the module’s dedicated handle when plugging and unplugging, and it is strictly forbidden to pull the signal line or power line directly.
5. Calibration Operation: When performing online calibration, ensure that the industrial production process is in a stable state, and use ABB original high-precision standard signal source for manual calibration to ensure the calibration precision; record the calibration parameters after calibration for later maintenance and reference.
6. Communication Setting: Before docking with the control system, select the corresponding communication protocol (ABB native bus is recommended for ABB systems) and unify the baud rate; perform a full-channel signal transmission test after configuration to ensure the normal and stable communication of the module.
7. Environmental Protection: Although it has an IP67 protection grade, avoid long-term immersion in water and strong corrosive chemical gas environment; for offshore and coastal industrial sites, regularly clean the module surface with dry compressed air to remove salt spray and dust accumulation.
8. Load Matching: The connected load of the output channel shall not exceed the maximum driving load of 1kΩ, and the total load power shall not exceed the module’s rated power to avoid overloading and damage to the module; it is strictly forbidden to short-circuit the output channel.
9. Daily Maintenance: Regularly check the module’s running indicator lights, wiring terminals and shell temperature during daily maintenance; if the indicator light is abnormal, the terminal is loose or the temperature exceeds 85℃, stop the machine for troubleshooting immediately; regularly check the shielded wire grounding status to ensure reliable grounding.
10. Spare Parts Replacement: When the module fails or components are damaged, replace them with ABB original spare parts and the same model module (ABB XVC768116 3BHB007211R116), and it is strictly forbidden to use non-original spare parts or cross-model replacement; after replacement, re-calibrate the module and conduct a full-channel signal test to ensure consistency with the original system parameters.
11. Storage and Transportation: Unused ABB XVC768116 3BHB007211R116 should be stored in a dry and ventilated environment with a temperature of 0℃~+40℃ and a humidity of ≤60%RH, avoiding direct sunlight, rain and violent collision; use ABB original shockproof, moisture-proof and anti-static packaging during transportation, and fix the module with foam to prevent vibration damage during transportation.
