ABB XVC724BE102 3BHE009017R0102

Description

Product Description

The ABB XVC724BE102, with the detailed article number 3BHE009017R0102, is a specialized voltage regulator module designed for ABB’s PEC (Power Electronics Controller) platform, particularly within the DCS 800 and other high-power drive systems. This module is a critical component in the drive’s power and control architecture, responsible for generating and regulating the low-voltage DC power supplies required by the control boards, gate drive units, and other logic circuits within the drive cabinet. The primary function of the ABB XVC724BE102 is to ensure that all sensitive electronic components receive stable, clean, and precisely regulated voltages (typically +5V, ±15V, +24V) despite fluctuations in the incoming auxiliary power. Its reliable operation is fundamental to the overall stability and availability of the entire drive system. Integrating this module correctly is essential for maintaining the integrity of the drive’s control and protection functions, directly impacting the performance and uptime of the connected motor and process.

Technical Parameters and Features

• Device Type: Voltage Regulator / Internal Power Supply Module for ABB Drives (PEC Platform).
• Input Voltage: Designed to operate from the drive’s internal DC link or a dedicated auxiliary AC supply, typically in ranges such as 400-500V DC or 110-230V AC. The exact input specification is critical and model-specific.
• Output Voltages: Provides multiple isolated and regulated DC output voltages required by the drive’s electronics. Common outputs include:
  • +5 VDC: Logic supply for microprocessors and digital circuits.
  • ±15 VDC: Supply for analog circuitry and operational amplifiers.
  • +24 VDC: Supply for gate drive units, relays, and external field devices.
• Regulation and Protection: Features tight voltage regulation, overvoltage protection (OVP), undervoltage lockout (UVLO), and overload/short-circuit protection on its outputs to safeguard downstream components.
• Status Monitoring: Likely includes diagnostic LEDs or status signals that are reported back to the drive’s main control board to indicate power supply health (Power Good, Fault).

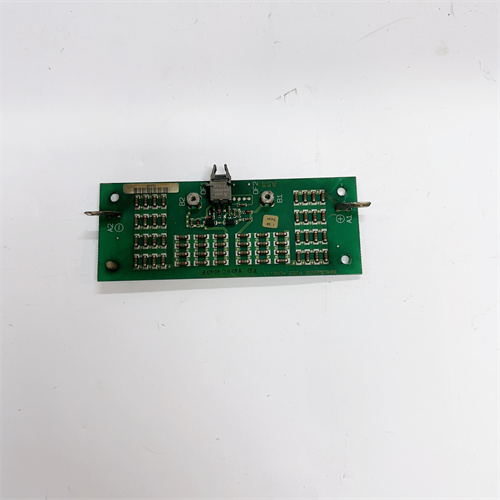

• Form Factor: A printed circuit board (PCB) module designed to plug into a specific slot or connector on the drive’s main control unit or power supply rack (e.g., within a DCS 800 Control Panel FPBA).
• Cooling: May include a heatsink or rely on forced airflow within the drive cabinet for thermal management.

Advantages and Key Features

• Critical System Reliability: The ABB XVC724BE102 is the cornerstone for reliable drive operation. By providing rock-solid power to all control electronics, it prevents nuisance trips, processor resets, and logic errors that can stem from poor power quality.
• Optimized for the Drive Environment: This module is specifically engineered to withstand the harsh electrical environment inside a high-power drive cabinet, characterized by high dV/dt, EMI, and thermal stress. Its design prioritizes noise immunity and stability.
• Guaranteed Compatibility and Performance: As a genuine ABB-designed component for the PEC platform, it ensures perfect electrical and mechanical compatibility with the host drive. This guarantees specified performance and avoids risks associated with third-party or non-conforming parts.
• Integrated Diagnostics: Its health is typically monitored by the drive’s control system. A failure or warning from the XVC724BE102 module can be reported as a specific drive fault code, enabling fast and accurate troubleshooting.
• Compact and Integrated Design: It consolidates multiple voltage rails into a single, serviceable module, saving space and simplifying the internal architecture of the drive compared to using multiple discrete power supplies.

Application Case Studies in Various Fields

• Metal Rolling Mill (Main Drive): In a DCS 800 drive controlling a reversing rolling mill stand, the ABB XVC724BE102 ensures the regulator boards and firing circuits receive stable power during the high dynamic loads and electrical noise of the rolling process, preventing drive faults during critical passes.
• Mining Hoist/Winder Drive: Used in the control system of a high-torque hoist drive, where reliability is paramount for safety. A failure of the voltage regulator module could lead to a loss of control, making the 3BHE009017R0102 a critical spare part.
• Marine Propulsion Drive: Within the drive cabinet of a ship’s main propulsion system, this module must operate reliably in high-vibration and salty air conditions, providing clean power to the complex control logic that manages torque and speed.
• Large Pump or Fan Drive in a Plant: In a critical boiler feed pump or induced draft fan drive within a power plant, the stable operation of the XVC724BE102 directly contributes to overall unit availability by preventing drive-induced process trips.

Comparison with Competing Products

This module is not a generic component but a proprietary, system-critical part:

1. Proprietary vs. Commercial Off-The-Shelf (COTS): Unlike a standard DIN-rail 24V power supply, the ABB XVC724BE102 is a custom-designed, proprietary module with specific input requirements, form factor, and communication with the drive’s controller. A COTS supply cannot replace it.
2. System-Integrated vs. Add-On: Its design is fully integrated into the drive’s fault diagnosis and safety architecture. A generic replacement would lack this integration, leaving the system blind to power supply issues until a catastrophic failure occurs.
3. Drive Manufacturer Specific: The primary “competition” for the XVC724BE102 comes from third-party rebuilt or compatible modules. While sometimes cheaper, these carry risks of inferior components, lack of full testing, and potential voiding of drive warranties. The OEM part ensures full compatibility.

Selection Advice and Important Notes

• Verify Exact Drive Compatibility: This is the most critical step. The module 3BHE009017R0102 must be confirmed as the correct spare part for the specific drive type (e.g., DCS 800), hardware serial number, and firmware version. Using an incompatible regulator can cause severe damage.
• Handle as ESD-Sensitive Material: The module contains sensitive semiconductors. Always handle it with proper electrostatic discharge (ESD) precautions—use a grounded wrist strap and anti-static packaging.
• Follow Safety Procedures for Replacement: Replacement must be performed with the drive fully isolated and locked out (LOTO). The DC link capacitors must be verified as discharged to a safe voltage before any work begins. Only qualified personnel should perform this task.
• Inspect for Root Cause: If a XVC724BE102 module fails, it is often a symptom of another problem, such as a failing DC link capacitor, poor incoming power quality, or a short circuit in a downstream board. Always investigate the root cause before installing a new module to prevent immediate re-failure.
• Source from Authorized Channels: Due to its critical nature and risk of counterfeit parts, procure the ABB XVC724BE102 module only from ABB or authorized distributors to guarantee authenticity, reliability, and support.
