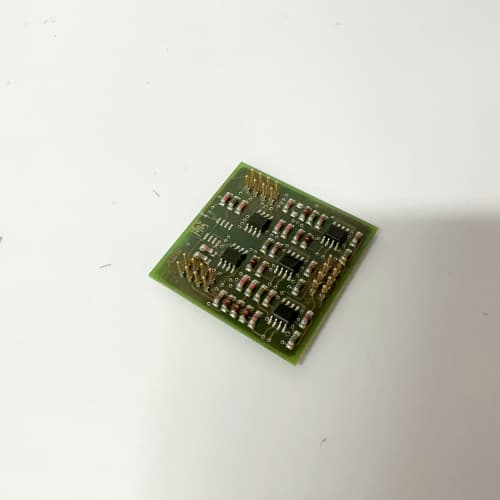

ABB XVC723 3BHB002953R0107

Description

Product Description

The ABB XVC723, with the article number 3BHB002953R0107, is a high-performance, single-axis servo drive module from ABB’s System 800xA motion control family. This module is designed to precisely control the torque, speed, and position of AC servo motors, integrating directly into the distributed control system (DCS) architecture. The ABB XVC723 functions as a digital servo amplifier, receiving commands from an AC 800M controller over a real-time fieldbus network and executing them with high dynamic response and accuracy. For comprehensive technical specifications, connection diagrams, and configuration manuals, the essential resource is the official ABB Library portal for the ABB XVC723. Implementing the XVC723 enables seamless coordination between process logic and mechanical motion within the unified 800xA engineering environment. This integration is critical for applications requiring synchronized axes and precise positioning, establishing the XVC723 as a key component in advanced automation systems for demanding industrial processes.

Product Parameters

• Manufacturer / Brand: ABB.
• Module Designation: XVC723 (Single-Axis Servo Drive Module).
• Article Number: 3BHB002953R0107.
• System Compatibility: ABB System 800xA, AC 800M controller (typically as the motion planner).
• Function: Digital Single-Axis Servo Drive/Amplifier.
• Control Modes: Supports torque control, speed control, and position control (following an external setpoint from the controller).
• Communication Interface: Connects to the system via a high-speed fieldbus such as PROFIBUS DP or PROFINET for command and feedback.
• Motor Feedback: Interfaces with high-resolution motor feedback systems (e.g., EnDat, resolver, or sin/cos encoder).
• Output Power: Rated for a specific voltage and current output to drive associated servo motors (e.g., 400-480V AC input, specific continuous/peak current).
• I/O Integration: Includes digital and analog I/O for local signals like enable, ready, torque limits, and additional feedback.
• Protections: Comprehensive suite including over-current, over-voltage, over-temperature, short-circuit, and motor overload protection.
• Form Factor: A modular drive unit designed for cabinet mounting, often requiring an associated power supply module.
• Programming/Configuration: Configured and tuned using ABB’s Control Builder M engineering software within the 800xA framework.

Advantages and Features

• Deep DCS Integration: Offers unparalleled integration with the ABB 800xA DCS, enabling centralized engineering, diagnostics, and alarming within a single system environment for both process and motion control.
• High Dynamic Performance: Provides excellent control bandwidth and responsiveness for demanding motion profiles, enabling fast acceleration, precise settling, and high-speed operation.
• Precision Control: Advanced control algorithms ensure high accuracy in speed and position regulation, which is essential for quality-critical processes like cutting, dispensing, or positioning.
• Safety Integration: Can be integrated with safety functions (e.g., Safe Torque Off – STO) to meet machinery safety standards, often via additional safe I/O or over the fieldbus.
• Advanced Diagnostics: Detailed drive and motor data (current, temperature, error codes) are available within the 800xA operator interface, facilitating predictive maintenance and rapid troubleshooting.

Application Cases in Industry

• Printing & Converting Machinery: Precisely controls the registration of printing cylinders and the tension of a moving web in high-speed rotary printing presses and coating lines, directly synchronized with the main process line.
• Packaging Machinery: Drives the servo axes on form-fill-seal machines, cartoners, and pick-and-place robots, synchronizing product handling with the main conveyor speed managed by the DCS.
• Rolling Mills (Metals): Provides accurate speed and tension control for pay-off and take-up reels, as well as precise positioning for shear and slitter axes in metal processing lines.
• Test Stands & Simulators: Delivers the dynamic motion profiles required for component fatigue testing or vehicle simulator platforms, with control fully integrated into the test cell’s data acquisition system.
• Advanced Material Handling: Controls the synchronized movement of gantries, automated guided vehicles (AGVs), and complex conveyor systems within a fully integrated plant-wide control strategy.

Comparison with Competing Products

Direct competitors include integrated motion solutions from other DCS vendors, such as Siemens SIMOTION D with SINAMICS S120 drives within the PCS 7 ecosystem, and standalone servo drives from Bosch Rexroth (IndraDrive) or Yaskawa. The ABB XVC723 differentiates itself through its native 800xA DCS integration. Unlike a standalone drive that communicates via a generic fieldbus, the XVC723 is managed as an intelligent field device within Control Builder M, with configuration, tuning, and diagnostics fully embedded in the DCS engineering workflow. This reduces system complexity and lifecycle costs for plants standardized on ABB. Its performance is comparable to high-end standalone drives, but its key selling point is the unified architecture.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Choose the ABB XVC723 when designing a motion control application within a new or existing ABB System 800xA and you require deep DCS integration over a fieldbus network.
  2. Ensure the drive’s power rating (voltage and current) is correctly matched to the selected servo motor’s requirements, considering both continuous and peak torque demands.
  3. Verify the compatibility of the motor’s feedback system with the drive’s encoder interface. Select the appropriate feedback option card if necessary.
• Precautions:
  1. Complex System Component: The XVC723 is not a standalone product. Its commissioning requires expertise in both System 800xA engineering (Control Builder M) and servo drive tuning. Specialized training is recommended.
  2. Regenerative Energy: Applications with high cyclic braking (e.g., test stands, descending loads) require proper handling of regenerative energy. This may necessitate a braking resistor or a regenerative power supply unit to be specified and installed.
  3. EMC and Installation: Strict adherence to EMC installation guidelines is mandatory. This includes proper shielding and grounding of power and feedback cables, separation from high-power lines, and use of line filters to prevent interference and ensure stable operation.
  4. Parameter Management: All drive parameters must be carefully configured, backed up, and managed as part of the overall plant asset management strategy. Incorrect parameters can lead to poor performance, instability, or damage.
  5. Sourcing and Support: Use the precise article number 3BHB002953R0107 for procurement. Source from authorized ABB channels to guarantee authenticity, correct firmware, and access to technical support. Ensure you have the necessary configuration files and documentation for the specific application and motor. Collaboration with ABB or a certified system integrator is highly advised for initial setup.
