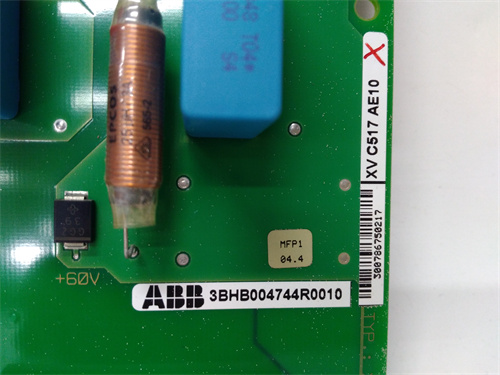

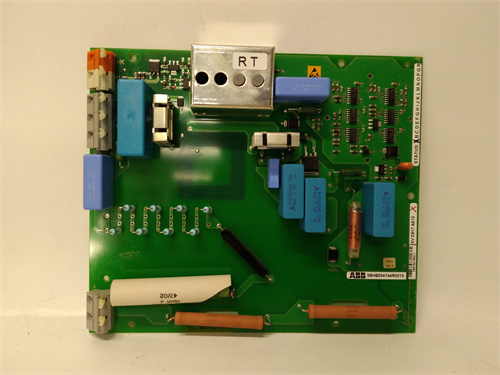

ABB XVC517AE10 3BHB004744R0010

Description

Product Description

The ABB XVC517AE10 is a high-performance, single-axis servo drive module from the ABB AC 800M-based System 800xA family, with the distinct article number 3BHB004744R0010. This module is a core component of ABB’s integrated motion control solution, designed to precisely regulate the torque, speed, and position of AC servo motors within complex industrial machinery. The ABB XVC517AE10 functions as a digital servo amplifier, receiving commands from the 800xA controller over a Profibus-DP or Profinet network and executing them with high dynamic response.

Product Parameters

• Manufacturer / Brand: ABB.
• Model: XVC517AE10.
• Article Number: 3BHB004744R0010.
• System Compatibility: ABB System 800xA, with the AC 800M controller as the motion planner.
• Function: Digital Single-Axis Servo Drive Module.
• Control Modes: Supports torque control, speed control, and position control (following an external setpoint from the controller).
• Communication Interface: Connects to the system via a fieldbus such as Profibus-DP or Profinet for command and feedback.
• Motor Feedback: Interfaces with high-resolution motor feedback systems (e.g., EnDat, resolver).
• Output Power: Rated for a specific voltage and current output to drive associated servo motors (e.g., 400-480V AC input, specific continuous/peak current).
• I/O Integration: Includes digital and analog I/O for local signals like enable, ready, and torque limits.
• Protections: Comprehensive suite including over-current, over-voltage, over-temperature, and short-circuit protection.
• Form Factor: A modular drive unit designed for cabinet mounting, often requiring an associated power supply module.

Advantages and Features

• DCS Integration: Offers unparalleled integration with the ABB 800xA DCS, enabling centralized engineering, diagnostics, and alarming within a single system environment.
• High Dynamic Performance: Provides excellent control bandwidth and responsiveness for demanding motion profiles, enabling fast acceleration and precise settling.
• Precision Control: Advanced control algorithms ensure high accuracy in speed and position regulation, which is essential for quality-critical processes.
• Comprehensive Safety: Can be integrated with safety functions (e.g., Safe Torque Off – STO) to meet machinery safety standards.
• Advanced Diagnostics: Detailed drive and motor data are available within the 800xA operator interface, facilitating predictive maintenance and rapid troubleshooting.

Application Cases in Industry

• Printing & Converting: Precisely controls the registration of printing cylinders and the tension of a moving web in high-speed rotary printing presses and coating lines.
• Packaging Machinery: Drives the servo axes on form-fill-seal machines, cartoners, and pick-and-place robots, synchronizing product handling with the main line.
• Rolling Mills (Metals): Provides accurate speed and tension control for pay-off and take-up reels, as well as precise positioning for shear and slitter axes.
• Test Stands & Simulators: Delivers the dynamic motion profiles required for component fatigue testing or vehicle simulator platforms.
• Advanced Material Handling: Controls the synchronized movement of gantries, automated guided vehicles (AGVs), and complex conveyor systems.

Comparison with Competing Products

Direct competitors include integrated motion solutions from other DCS vendors, such as Siemens SIMOTION D with SINAMICS S120 drives within the PCS 7 ecosystem, and standalone servo drives from Bosch Rexroth (IndraDrive) or Yaskawa. The ABB XVC517AE10 differentiates itself through its native 800xA DCS integration. Unlike a standalone drive that communicates via generic fieldbus, the XVC517AE10 is managed as an intelligent field device within Control Builder M, with configuration, tuning, and diagnostics fully embedded in the DCS engineering workflow. This reduces system complexity and lifecycle costs for plants standardized on ABB. Its performance is comparable to high-end standalone drives, but its key selling point is the unified architecture.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Choose the ABB XVC517AE10 when designing a motion control application within a new or existing ABB System 800xA and you require deep DCS integration over a fieldbus network.
  2. Ensure the drive’s power rating (voltage and current) is correctly matched to the selected servo motor’s requirements, considering both continuous and peak torque demands.
  3. Verify the compatibility of the motor’s feedback system with the drive’s encoder interface.
• Precautions:
  1. Complex System Component: The XVC517AE10 is not a standalone product. Its commissioning requires expertise in both System 800xA engineering (Control Builder M) and servo drive tuning.
  2. Regenerative Energy: Applications with high cyclic braking (e.g., test stands) require proper handling of regenerative energy, possibly necessitating a braking resistor or regenerative power supply unit.
  3. EMC and Installation: Strict adherence to EMC installation guidelines is mandatory. This includes proper shielding and grounding of power and feedback cables, separation from high-power lines, and use of line filters to prevent interference and ensure stable operation.
  4. Parameter Management: All drive parameters must be carefully configured, backed up, and managed as part of the overall plant asset management strategy. Incorrect parameters can lead to poor performance or damage.
  5. Sourcing: Use the precise article number 3BHB004744R0010 for procurement. Source from authorized ABB channels to guarantee authenticity, correct firmware, and access to technical support. Ensure you have the necessary configuration files and documentation for the specific application.
