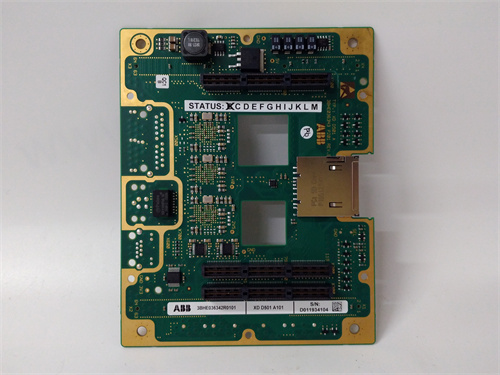

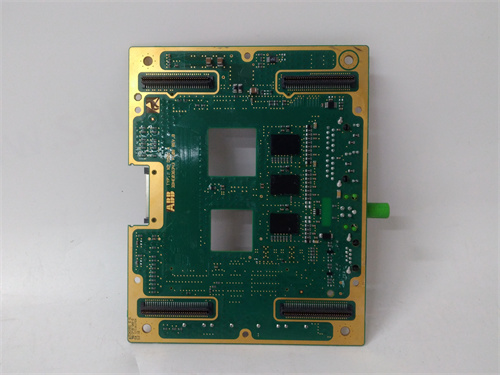

ABB XDD501A101 | Digital Output Module, 16 Channels, 24V DC

Description

Product Introduction

That gas-fired peaker plant in Florida—the one with the ABB Procontrol system on the Frame 6 turbine—had a “valve fail” alarm last summer. The fuel gas shutoff valve wouldn’t open during startup. The techs swapped the solenoid, the cable, even the marshalling cabinet. Nothing. I pulled the XDD501A101 from the rack and bench-tested it. Channel 8 had an intermittent open in the output circuit—the line monitoring was catching it, so the system knew there was a fault, but it couldn’t tell which channel without a scope. One bad optocoupler, one 2,000 module, one 50,000 outage.

The ABB XDD501A101 is a 16-channel digital output module from the Procontrol P-14 family. It’s built for turbine control applications where reliability and diagnostics matter. Each channel is a sourcing output (PNP), optically isolated from the backplane. The module has line monitoring: it checks for open circuits and short circuits on the field wiring by injecting a small test current and measuring the voltage. If it sees a fault, it reports to the controller and lights a front-panel LED. The XDD501A101 lives in a Procontrol rack, next to the power supply and the processor. In a gas turbine control system, it drives fuel valves, lube oil solenoids, and alarm indicators.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A turbine control module gets a thorough test. Here’s our process.

1. Incoming Verification
   • Match the model: XDD501A101. (There’s a -A102 variant—different firmware.)
   • Visual inspection: Look for bent pins on the backplane connector. Check the front panel for scratches.
   • Inspect the PCB for conformal coating—should be even, no bubbles.
   • Verify the revision sticker.
2. Power-On Self-Test
   • Install the module in a Procontrol test rack with a known-good power supply and processor.
   • Apply rack power—watch the “PWR OK” LED.
   • Connect to the engineering workstation, verify the module is recognized and passes its internal diagnostics.
3. Output Functional Test
   • Connect a 24V DC load (a 24V lamp or resistor) to each channel in sequence.
   • From the test controller, command each channel on/off.
   • Verify the lamp lights, measure voltage drop (<1V at 0.5A).
   • Test all 16 channels simultaneously at 0.25A each (4A total)—monitor power supply voltage.
4. Line Monitoring Test
   • For each channel, simulate open circuit (disconnect load).
   • Verify the fault is detected and reported (LED and software).
   • Simulate short circuit (connect output to common).
   • Verify the fault is detected and the output is disabled (per design).
5. Isolation Test
   • 500V megger between field terminals (shorted) and backplane ground—>10 MΩ.
   • Repeat between each channel’s terminals and the next channel—>10 MΩ.
6. Thermal Soak
   • 4 hours at 55 °C in a thermal chamber, all outputs at 0.25A load.
   • Monitor for any fault indications or output dropouts.
7. Firmware Verification
   • Read the firmware version via the engineering workstation.
   • Log it in the test report.
   • If the customer requests a specific version, we verify before shipping.
8. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag.
   • Double-box with foam padding.
   • Test report included—output voltage drop, line monitoring test results.

Field Replacement Pitfalls

I’ve swapped these in gas plants, hydro stations, and combined-cycle facilities. Here’s where people go wrong.

❗Line Monitoring Resistors
The line monitoring works by injecting a small test current. For the module to detect an open circuit, there must be a path for that current—usually through the load. If your load is a relay coil with no suppression, the test current may not flow. Check the manual for required external components.

Sourcing Output Wiring
The XDD501A101 is sourcing (PNP). That means the load must be connected between the output and common (0V). If you wire it between +24V and the output, it won’t work—and you might damage the module.

External Fusing
The module has no per-channel fuses. If a field wire shorts to ground, the internal output transistor will try to supply unlimited current—until it fails. Always use external fuses (0.5A fast-blow) on each channel.

Field Power Polarity
The field power terminals are marked + and -. Reverse them, and the module may not work—though it has reverse polarity protection. Still, check before applying power.

Firmware Compatibility
The XDD501A101 has been through several firmware revisions. If your system expects an older revision, the module might not communicate properly. We can check firmware before shipping.

Nail these five, and your XDD501 will keep that turbine running for years.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this module was manufactured by ABB, packed in its original box, and never installed. The output transistors have zero hours, the line monitoring circuits are unused, and the optoisolators are fresh.

Refurbished risk in plain terms
A refurbished Procontrol module often comes from a decommissioned turbine. It may have run for years in a hot cabinet. The output transistors may have been stressed by countless operations. The optoisolators age—their current transfer ratio drops. A refurbisher tests it at low current and calls it good. In the field, with a real load, it might fail to turn on.

Real cost of a refurbished failure
If this module fails to energize a critical fuel valve, the turbine trips. On a peaker plant, that’s lost revenue and possibly a grid penalty. The cost of one outage dwarfs the price difference.

What we provide as proof

• ABB box (or photos).
• Serial number recorded.
• Output voltage drop measurements.
• Line monitoring test results.
• 12‑month warranty.

Pricing context
We’re priced 40% above the cheapest “pulled” XDD501s and 25% below ABB’s current list price. That pays for the full functional test, the line monitoring check, and the warranty that covers replacement if a channel fails.

Performance Benchmarks & Test Results

Test conditions: Procontrol test rack, 24.0V DC field supply, 0.25A load per channel, ambient 24 °C.

We keep the full test data—ask, and we’ll email the PDF.
