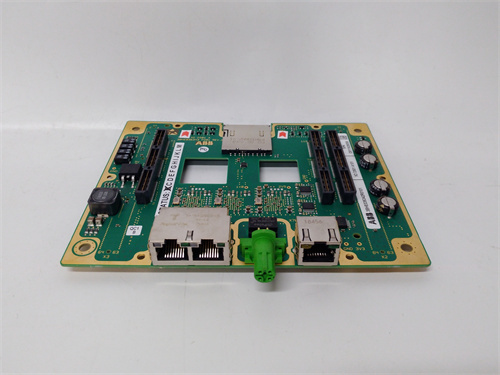

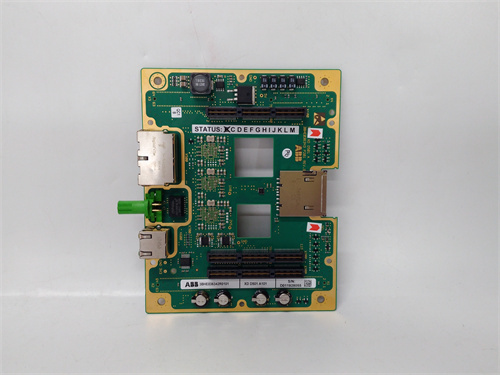

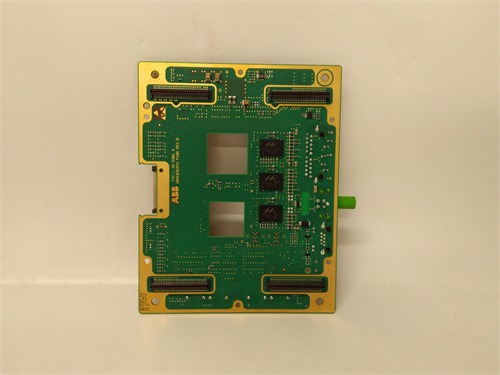

ABB XDD501A101

Description

Product Overview and Description

The ABB XDD501A101 is a critical Digital Input (DI) module from ABB’s Symphony Plus distributed control system (DCS), specifically designed for the Harmonics (H) family of I/O modules. This module serves as a fundamental interface for connecting field-mounted digital devices, such as pushbuttons, limit switches, proximity sensors, and motorized device contacts, to the high-integrity Symphony Plus controller. Engineered for reliability in demanding power generation and industrial process environments, the ABB XDD501A101 provides galvanic isolation and signal conditioning for multiple discrete signals, translating the on/off status of field devices into digital data for the controller’s logic. The robust construction and diagnostic capabilities of the ABB XDD501A101 make it a cornerstone for building reliable automation schemes, ensuring that critical status and interlock signals are accurately captured. Its implementation is essential for both basic monitoring and complex interlocking within the Symphony Plus architecture.

Key Parameters and Specifications

• Manufacturer & System: ABB, for the Symphony Plus DCS (Harmonics I/O Family).
• Module Type: Digital Input Module.
• Input Type: Sourcing or Sinking (typically configurable for dry contact or voltage threshold detection).
• Input Voltage: Common ratings include 24 VDC, 48 VDC, or 125 VDC. The specific voltage is a critical part of the model designation (e.g., ‘A101’ likely indicates a specific voltage like 125VDC).
• Number of Channels: Typically 16 or 32 isolated points, grouped for common power.
• Isolation: Channel-to-channel and channel-to-system bus isolation (e.g., 1500 VAC) for noise immunity and safety.
• Response Time: Fast scanning, suitable for high-speed interlock and protection logic.
• Diagnostics: Onboard diagnostics for field power supervision, group fuse failure, and module health.
• Field Power: Can provide fused, group-based power for the field devices or accept externally powered contacts.
• Mounting: Plugs into a Harmonics I/O base unit which connects to the Symphony Plus CI862 communication interface or directly to a controller.

Advantages and Distinctive Features

The ABB XDD501A101 offers robust performance and high density in a critical control environment. Its primary advantage is providing reliable, isolated acquisition of digital status signals in electrically noisy plant environments, which is essential for accurate interlocking and sequence control. A key feature is its flexible configuration, allowing adaptation to different field wiring schemes (sourcing/sinking) and voltage levels through appropriate base units and configuration software. The module’s grouped diagnostic capabilities enable quick identification of field circuit problems (like a lost field supply or a blown fuse group) without affecting other channels. The hot-swappable design of the Harmonics I/O family, which includes the ABB XDD501A101, allows for module replacement without shutting down the connected process, maximizing system availability. Its seamless integration with the Symphony Plus engineering environment simplifies configuration and maintenance.

Application Cases in Key Fields

• Fossil Fuel Power Plants: Monitoring the status of dozens of damper limit switches, pump seal failure switches, and fan vibration switches in a boiler island, providing critical data for the combustion control and safety interlock system.
• Water/Wastewater Treatment: Reading the position feedback from motor-operated valves (MOVs) and the run/trip status of pumps across a treatment facility, enabling automated sequencing and providing remote operability.
• Chemical Processing: Connecting to safety interlocks on reactor agitators, pressure relief device tampers, and area gas detection units for process safety monitoring.
• Pulp & Paper Mills: Interfacing with sheet break detectors, roll position limits, and dryer drainage controls on a paper machine, where reliable digital input is key to automated web handling.

Comparison with Competing Products

Compared to standard PLC digital input cards, the ABB XDD501A101 is part of a high-availability DCS architecture with deeper integration into plant-wide control strategies and engineering tools. Competing DCS digital input modules from other vendors (e.g., Emerson DeltaV CHARMs, Siemens SIMATIC ET 200SP DI) offer similar functionality but are locked into their respective system ecosystems and are not interchangeable. Within the ABB Symphony Plus range, the ABB XDD501A101 is distinct from analog input modules or communication interfaces, providing dedicated, high-density digital sensing. Its design prioritizes reliability and diagnostics over the lowest possible cost per point, which is characteristic of a system designed for critical, continuous processes.

Selection Suggestions and Precautions

Selection Suggestions:

1. Select the ABB XDD501A101 for expanding or replacing digital input capacity within an existing ABB Symphony Plus Harmonics I/O system.
2. It is the correct choice when the field devices operate on the DC voltage specified by this module’s part number suffix (e.g., 125VDC for A101).
3. Ensure compatibility with the existing Harmonics base unit and communication interface (CI862).

Important Precautions:

1. Voltage Compatibility: Confirm the module’s input voltage rating (encoded in the suffix, e.g., A101) matches the field supply voltage. Applying a higher voltage will damage the module.
2. Wiring Scheme: Correctly configure the module and wire the field devices for either a sinking or sourcing input scheme as per the design drawings. Incorrect wiring can lead to false readings or damage.
3. Fusing: Be aware of the module’s internal fusing arrangement (typically in groups). Use the correct external fuse rating if required, and understand that a blown group fuse will disable all inputs in that group.
4. Configuration Download: The ABB XDD501A101 module must be properly configured and its configuration downloaded from the Symphony Plus engineering station (Composer) for correct operation. A new module will not function with just a hardware swap.
5. Grounding and Noise: Use shielded cable for long runs and ensure proper grounding at the DCS cabinet to maintain signal integrity and leverage the module’s isolation against electrical noise.
