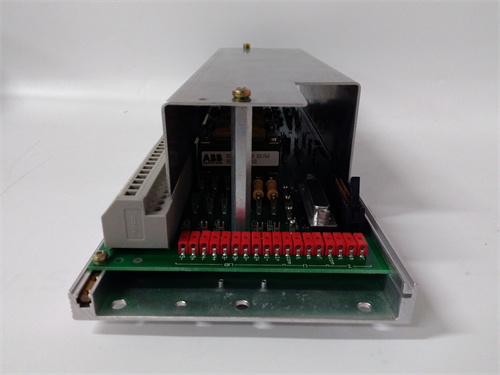

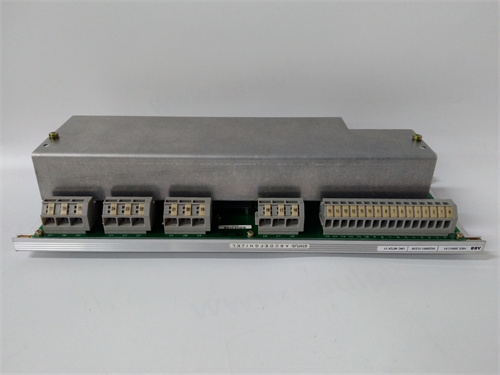

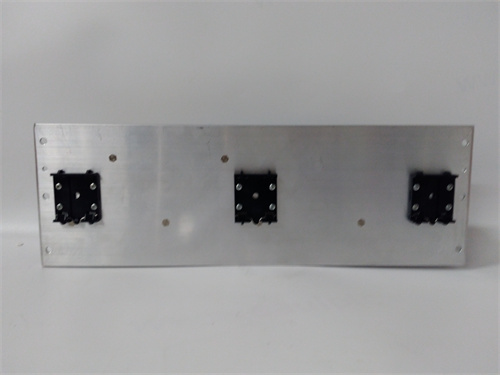

ABB UNC4672AV1 HIEE205012R1

Description

Product Description

The ABB UNC4672AV1 HIEE205012R1 is a high-performance control and communication module for the AC 800M controller family, specifically designed as a PROFIBUS Master (Controller) communication interface. This module enables an AC 800M controller (such as a PM861 or PM864) to act as the master on a PROFIBUS DP (Decentralized Periphery) network, allowing it to manage and exchange data with a wide array of PROFIBUS slave devices such as remote I/O stations, variable speed drives, motor starters, and instrumentation from various manufacturers. The ABB UNC4672AV1 HIEE205012R1 seamlessly integrates this widely adopted fieldbus standard into the ABB System 800xA and Compact Product Suite automation environment. By bridging these protocols, the ABB UNC4672AV1 HIEE205012R1 provides crucial interoperability in multi-vendor industrial installations. Comprehensive technical documentation for this module is available at [Insert Link Here].

Product Parameters

• Product Type: PROFIBUS DP Master Communication Module
• System Series: ABB AC 800M, for System 800xA and Compact Product Suite.
• PROFIBUS Role: Operates as a PROFIBUS DP-V0/V1 Master (Class 1).
• Communication Port: Features one RS-485 port via a 9-pin D-sub connector for the PROFIBUS DP network.
• Baud Rate: Supports configurable baud rates from 9.6 kbps up to 12 Mbps.
• Network Capacity: Can manage a configurable number of slave devices (up to the PROFIBUS standard limit of 126, practical limits are lower based on data size and scan time).
• Data Exchange: Handles both cyclic data exchange (for process I/O) and acyclic services (for parameterization and diagnostics of intelligent slaves).
• Integration: Connects directly to the AC 800M controller’s main communication bus (internal PCI). It appears as a dedicated hardware unit in the controller’s hardware configuration.
• Configuration: Configured using ABB’s Control Builder M engineering software. Requires the GSD (General Station Description) files for each slave device.
• Diagnostics: Provides extensive diagnostic capabilities for the module itself and the PROFIBUS network, accessible via Control Builder and the controller’s diagnostic views.

Advantages and Features

• Seamless AC 800M Integration: The ABB UNC4672AV1 HIEE205012R1 is a native ABB module, allowing for tight integration within the Control Builder engineering environment. PROFIBUS I/O data is mapped directly into the controller’s software, behaving like local I/O.
• Multi-Vendor Interoperability: Enables the AC 800M system to seamlessly incorporate best-in-class or legacy devices from other automation suppliers that use PROFIBUS DP as their primary interface.
• High Performance: Supports high baud rates and efficient data handling, making it suitable for applications requiring fast update times between the controller and remote devices.
• Comprehensive Diagnostics: Advanced troubleshooting tools help identify issues at the network level (cable faults, termination) and the device level (slave failures, configuration errors), minimizing downtime.
• Flexible Network Topology: Supports standard PROFIBUS cabling and topologies, allowing for linear, tree, or star configurations to suit physical plant layout.
• Reliable Industrial Design: Built to ABB’s standards for reliability in industrial environments with protection against electrical noise and wide operating temperature ranges.

Application Cases in Key Fields

• Automotive Manufacturing: Integrating third-party robotic controllers, welding guns, and vision systems on a PROFIBUS network under the control of a central AC 800M controller.
• Packaging and Material Handling: Connecting remote I/O islands, conveyor drive systems, and barcode readers from various European OEMs to a unified control system.
• Water and Wastewater Treatment: Interfacing with intelligent flow meters, pump variable frequency drives (VFDs), and analyzer instruments from different suppliers via a single PROFIBUS segment managed by the ABB UNC4672AV1 HIEE205012R1.
• Food and Beverage: Bringing together specialized filling, capping, and labeling machines from different vendors, each equipped with a PROFIBUS interface.
• Pharmaceutical: Integrating legacy or specialized process equipment (e.g., centrifuges, granulators) that communicate via PROFIBUS into a modern 800xA batch management system.

Comparisons with Competing Products

• Vs. ABB’s CI854 Communication Interface: The CI854 is a multi-protocol module that can also be configured as a PROFIBUS Master. The ABB UNC4672AV1 HIEE205012R1 is a dedicated, single-protocol module, often chosen for its potentially higher performance and focused functionality for large PROFIBUS networks.
• Vs. Third-Party PROFIBUS Gateways (e.g., ProSoft, Hilscher): These are external devices that convert PROFIBUS to another protocol (like Ethernet/IP). The ABB UNC4672AV1 HIEE205012R1 offers a more direct, tightly integrated solution with lower latency and simpler configuration within the native ABB engineering tool.
• Vs. PROFIBUS Master Modules from Other PLC Vendors (e.g., Siemens CP 443-5): Functionally similar, but each is locked into its respective vendor’s ecosystem. The ABB UNC4672AV1 HIEE205012R1 is the solution for users standardized on the AC 800M platform.

Selection Suggestions and Precautions

• Selection Advice:
  1. Network Audit and Planning: Before selection, catalog all intended PROFIBUS slave devices, their GSD files, required I/O data size, and update rate requirements. Ensure the total load is within the capability of a single ABB UNC4672AV1 HIEE205012R1 module.
  2. Verify Controller Compatibility: Ensure the AC 800M controller processor (e.g., PM861, PM864) and its firmware support this specific communication module.
  3. Plan for Redundancy: For mission-critical networks, consider if a redundant PROFIBUS ring or a redundant controller setup is needed, as the module itself is typically not redundant.
  4. GSD File Management: Success depends on having the correct GSD files for every slave. Establish a system to manage and archive these files.
• Important Precautions:
  1. Strict Network Installation Rules: Adhere to PROFIBUS installation guidelines: use proper shielded cable, ensure correct bus termination at both ends with active terminators, and avoid star topology with spur lengths exceeding specifications.
  2. Grounding: The PROFIBUS shield must be grounded effectively at one point (usually at the master end) to prevent ground loops while ensuring noise immunity.
  3. Configuration and Commissioning: The module and the entire network must be carefully configured in Control Builder M. Incorrect device addresses or data mapping will prevent communication.
  4. Firmware Compatibility: Ensure the firmware version of the ABB UNC4672AV1 HIEE205012R1 module is compatible with the version of Control Builder M and the AC 800M controller firmware.
  5. Physical Installation: The module is sensitive to electrostatic discharge (ESD). Handle with appropriate precautions and ensure it is securely seated in its slot.
