ABB UFC760BE43 3BHE004573R004

Description

Product Description

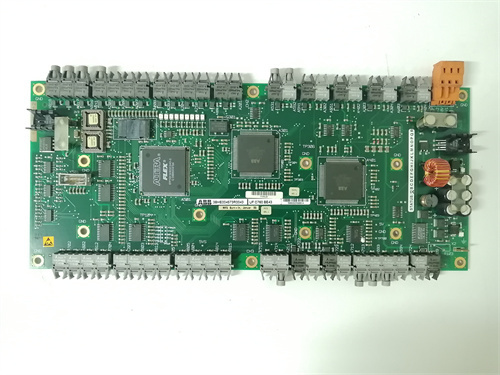

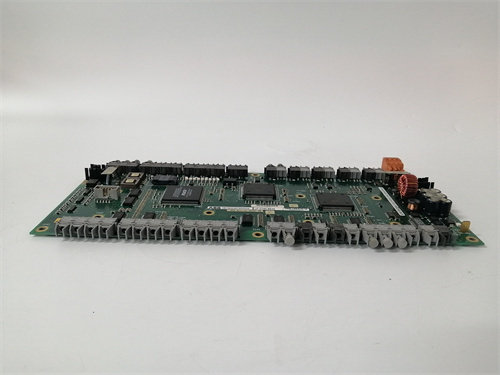

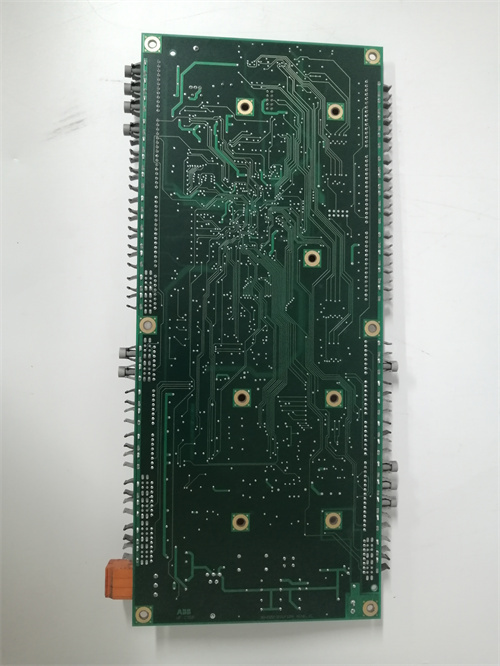

The ABB UFC760BE43, with the article number 3BHE004573R004, is a high-performance, multi-protocol communication interface module designed for the ABB AC 800M PM866 controller within the System 800xA. This module acts as a powerful fieldbus and network controller, providing the AC 800M with robust connectivity to multiple industrial networks simultaneously. The ABB UFC760BE43 is engineered to handle demanding real-time data exchange, supporting key protocols such as PROFIBUS DP, Modbus, and potentially others, functioning as a master or gateway. For comprehensive technical specifications, configuration guides, and protocol manuals, the essential resource is the official ABB Library portal for the ABB UFC760BE43. Implementing the UFC760BE43 module is central to building a flexible and integrated control architecture, allowing a single controller to seamlessly communicate with diverse field devices and subsystems. Its advanced capabilities make it a critical component for large-scale, heterogeneous industrial automation projects.

Product Parameters

• Manufacturer / Brand: ABB.
• Module Designation: UFC760BE43 (Multi-Protocol Communication Module).
• Article Number: 3BHE004573R004.
• System Compatibility: ABB AC 800M PM866 Controller, System 800xA.
• Function: Multi-Protocol Fieldbus Communication Controller.
• Supported Protocols: Typically includes:
  • PROFIBUS DP-V1/V2 (as a Master)
  • Modbus RTU/ASCII (Master or Slave)
  • May also support other serial or fieldbus protocols depending on configuration.
• Physical Interfaces: Equipped with multiple communication ports, often including both a PROFIBUS DP (RS-485) port and serial (RS-232/485) ports for Modbus or other serial protocols.
• Performance: Features a dedicated processor for protocol handling, ensuring deterministic performance and offloading communication tasks from the main CPU.
• Configuration: Fully configured and parameterized using ABB’s Control Builder engineering software.
• Diagnostics: Comprehensive diagnostic capabilities for each communication channel and connected network, integrated into the 800xA diagnostic framework.
• Form Factor: A compact module designed for installation in a dedicated slot on the AC 800M PM866 controller or a communication interface unit.
• Power: Powered from the controller backplane.

Advantages and Features

• Multi-Protocol Flexibility: Enables a single controller to interface with equipment from different vendors using different industrial standards, simplifying system architecture and reducing the need for additional gateways.
• High-Performance Communication: Dedicated hardware ensures reliable and fast data exchange for time-critical control applications across all supported protocols.
• Simplified System Integration: Reduces wiring and hardware complexity by consolidating communication paths for PROFIBUS and Modbus networks into one intelligent module.
• Unified Engineering Environment: All configuration, mapping, and diagnostics for the ABB UFC760BE43 and its connected networks are managed within the familiar ABB Control Builder, streamlining engineering and maintenance.
• Robust and Reliable: Built to ABB’s industrial standards for operation in demanding environments, ensuring continuous communication availability.

Application Cases in Industry

• Hybrid Process Plant: The ABB UFC760BE43 allows an AC 800M controller to communicate via PROFIBUS DP with modern motor starters and drives, while simultaneously using Modbus RTU to interface with legacy PLCs, flow computers, or analyzer systems in a refinery or chemical plant.
• Water/Wastewater SCADA: Serves as a central communication hub where one port acts as a PROFIBUS DP master for local I/O and VFDs, and another port acts as a Modbus master to poll data from remote telemetry units (RTUs) at pump stations.
• Manufacturing with Legacy Equipment: Integrates new ABB-based control systems with older machines that only support Modbus, while also managing new PROFIBUS-based robot cells on the same network.
• Power Plant Auxiliary Systems: Connects to boiler and turbine auxiliaries via PROFIBUS and communicates with balance-of-plant systems (e.g., water treatment, fuel handling) that use Modbus protocols.
• Pharmaceutical Facility: Manages communication between the batch process controller (AC 800M) and various skid-mounted systems that may use different fieldbus standards for their local control.

Comparison with Competing Products

Competing products are multi-protocol communication cards from other DCS/PLC vendors, such as the Emerson DeltaV CIOC (Communications I/O Card) which supports multiple protocols, or using separate single-protocol modules. The ABB UFC760BE43 differentiates itself through its native integration with the AC 800M hardware and the 800xA software suite, offering a tightly optimized solution. Compared to using external protocol converters or gateways, the UFC760BE43 provides superior performance, centralized diagnostics, and a cleaner system architecture. Its primary advantage is the ability to handle multiple major industrial protocols within a single, vendor-supported module designed for the ABB ecosystem.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the ABB UFC760BE43 when your AC 800M-based application requires communication with both PROFIBUS DP and Modbus (or other supported serial) networks from a single controller slot.
  2. Clearly map out all devices, their required protocols, data volumes, and update rates to ensure the UFC760BE43‘s capacity meets the application’s demands.
  3. Verify the exact protocol support and port configuration for the specific UFC760BE43 variant (article number 3BHE004573R004) as capabilities can differ.
• Precautions:
  1. Complex Configuration: Managing multiple active protocols on one module increases configuration complexity. Careful planning of device addresses, baud rates, and data mapping for each network is essential.
  2. Network Segment Separation: Treat the PROFIBUS and serial (Modbus) networks as separate logical segments. Ensure proper cabling, termination, and grounding practices are followed independently for each physical network.
  3. Protocol-Specific GSD/Configuration Files: For PROFIBUS, you need correct GSD files. For Modbus, you need accurate register maps and function code definitions for each slave device.
  4. Firmware and Software Compatibility: Ensure the module’s firmware, the Control Builder version, and the controller firmware are all compatible. Multi-protocol modules can have specific firmware requirements.
  5. Sourcing and Expert Setup: Source the module using the exact article number from authorized ABB channels. Due to its complexity, configuration and commissioning should involve personnel experienced with both the ABB platform and the specific industrial protocols in use. Thoroughly test each communication channel independently before integrated operation.
