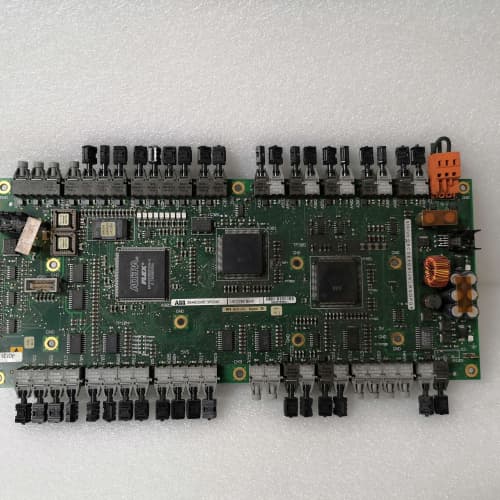

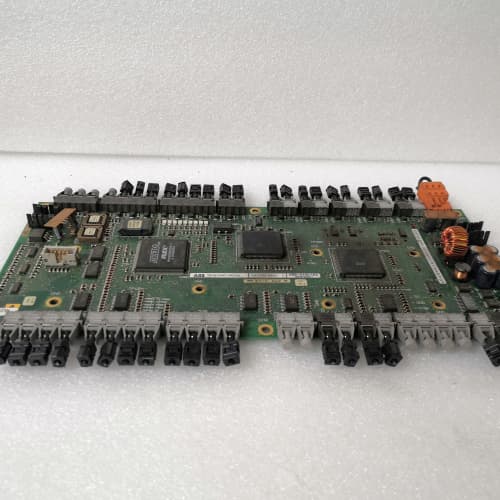

ABB UFC760BE41 3BHE004573R0141

Description

ABB UFC760BE41 3BHE004573R0141 – Product Overview

Product Description
The ABB UFC760BE41 3BHE004573R0141 is a state-of-the-art digital fieldbus controller module designed for the ABB Freelance distributed control system (DCS) and AC 800M PLC family. This versatile module, the ABB UFC760BE41 3BHE004573R0141, acts as a high-performance communication gateway, enabling seamless integration of PROFIBUS DP-V1 networks with the controller. Implementing the ABB UFC760BE41 3BHE004573R0141 is critical for projects requiring robust and deterministic data exchange with a wide array of field devices such as variable speed drives, I/O stations, and intelligent instruments. The reliability and diagnostic capabilities of this module make it a cornerstone for modern, hybrid automation architectures that blend DCS and PLC functionalities.

Product Parameters

• Manufacturer Part Number (MPN): UFC760BE41
• Ordering Code / Article Number: 3BHE004573R0141
• Product Type: PROFIBUS DP-V1 Master/Slave Communication Interface Module
• Compatible System: ABB Freelance DCS and AC 800M Controller (e.g., PM802F, PM803F, PM851, PM861, PM891).
• Fieldbus Protocol: PROFIBUS DP in accordance with EN 50170, supporting DP-V0, DP-V1, and DP-V2 (isochronous mode) functionalities.
• Data Transfer Rate: Configurable from 9.6 kbps up to 12 Mbps, auto-baud detection.
• Connector: 9-pin D-Sub (RS-485).
• Number of Connections: Supports up to 125 slaves (devices) per module.
• Diagnostics: Extensive diagnostic capabilities for the module itself and the connected PROFIBUS network.

Advantages and Features

• Dual-Role Flexibility: Can be configured as a DP Master to control a network of devices or as a DP Slave to integrate the AC 800M controller into a higher-level supervisory PROFIBUS system.
• High Performance & Determinism: Supports isochronous mode (DP-V2) for precise, time-synchronized communication critical for motion control and high-speed processes.
• Simplified Engineering: Fully integrated and configured within the ABB Automation Builder or Freelance Engineering Suite, providing a unified software environment.
• Robust Network Diagnostics: Offers detailed slave diagnosis, station status monitoring, and bus parameter analysis for rapid troubleshooting and high system availability.
• Proven Reliability: Built with industrial-grade components for long-term stability in demanding environments.

Application Cases in Application Fields
The ABB UFC760BE41 3BHE004573R0141 is deployed in hybrid and process automation applications:

• Pharmaceutical & Fine Chemicals: Integrating smart weighing scales, filling machines, and package handling systems (as PROFIBUS slaves) into a centralized Freelance DCS for batch process control.
• Water & Wastewater Treatment: Acting as a DP Master to communicate with networks of motor starters, pump variable frequency drives (VFDs), and sensor clusters for plant-wide control.
• Manufacturing & Packaging Lines: Enabling precise synchronization between an AC 800M safety controller and robotic cells or conveyor drives via PROFIBUS isochronous mode.

Comparisons with Competing Products

• vs. Siemens ET 200SP PROFIBUS Interface Module: Siemens modules are native to their ecosystem. The ABB UFC760BE41 3BHE004573R0141 offers similar DP-V1/V2 capabilities but is specifically optimized for deep integration within ABB’s control systems, providing a more cohesive engineering experience in ABB-centric projects.
• vs. Generic Third-Party PROFIBUS Masters: While generic cards can offer connectivity, the ABB UFC760BE41 provides certified reliability, direct vendor support, and guaranteed interoperability with the entire ABB controller and I/O portfolio, which is crucial for mission-critical applications.
• vs. ABB CI871 Ethernet Module: The CI871 is for Ethernet-based protocols (e.g., Modbus TCP, EtherNet/IP). The choice depends on the field device landscape. The UFC760BE41 is the definitive solution for legacy or new installations standardized on the robust and widely adopted PROFIBUS DP network.

Selection Suggestions and Precautions

• Selection Suggestion: Choose this module when your ABB AC 800M or Freelance system needs to interface with PROFIBUS DP field devices. Verify the exact firmware version required for compatibility with your controller’s CPU and engineering software version.
• Precautions:
  1. Configuration is Key: The module’s role (Master/Slave), address, and baud rate must be correctly configured in the Automation Builder software. Incorrect settings will prevent network communication.
  2. Termination and Shielding: PROFIBUS networks require proper termination at both ends of the segment and high-quality shielded cables. Neglecting this is a primary cause of communication errors and noise.
  3. Address Management: Ensure every device (slave) on the PROFIBUS network has a unique station address. Address conflicts will cause immediate network failure.
  4. Genuine Firmware: Always use firmware files obtained from the official ABB source. Unauthorized firmware can lead to module malfunction or incompatibility.
