ABB UFC760BE143

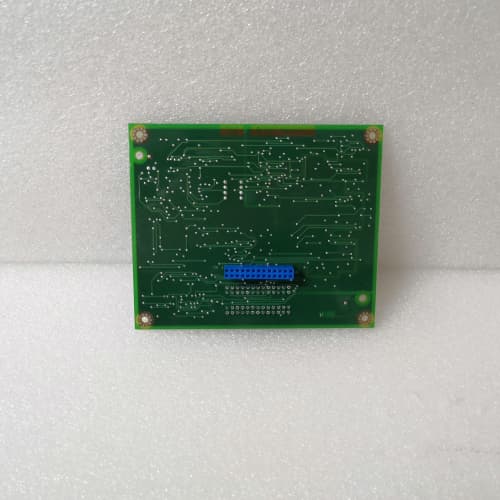

ABB UFC760BE143 (3BHE004573R0143) is a dedicated interface board for ABB Advant/Symphony DCS, designed to serve as a reliable data transmission hub between control units, I/O modules, and field instruments in power, oil & gas, and chemical process control.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

ABB UFC760BE143 (3BHE004573R0143) is a dedicated interface board for ABB Advant/Symphony DCS, designed to serve as a reliable data transmission hub between control units, I/O modules, and field instruments in power, oil & gas, and chemical process control. ABB UFC760BE143 supports dual – channel Profibus DP and ABB Masterbus 300, enabling seamless integration with ABB’s UFC760 series controllers and third – party devices, eliminating protocol conversion barriers. ABB UFC760BE143 features 16 isolated digital inputs and 8 configurable test outputs, facilitating on – site signal acquisition and debugging without extra tools. Its plug – in design and ABB backplane compatibility allow ABB UFC760BE143 to be quickly installed or replaced, minimizing system downtime during maintenance. Whether applied in thermal power plant auxiliary control or petrochemical reactor monitoring, ABB UFC760BE143 ensures stable data exchange and real – time fault alerts, boosting industrial operational reliability. It works in tandem with ABB’s process controllers to build a resilient control network, reinforcing its role in critical automation systems.

Technical Parameters ABB UFC760BE143

Parameter Item Parameter Value
Product Model ABB UFC760BE143 (3BHE004573R0143)
Product Type Interface Board (ABB Advant/Symphony DCS)
Communication Interfaces Dual Profibus DP, ABB Masterbus 300
Digital Inputs 16 channels (isolated, 24VDC)
Test Outputs 8 channels (configurable, 24VDC)
Supported Protocols Profibus DP V1/V2, ABB Masterbus 300, Modbus RTU
Power Supply 24VDC (19.2–30VDC operating range)
Power Consumption 5.5W (typical), 8W (max)
Operating Temperature – 10°C to +55°C
Storage Temperature – 40°C to +70°C
Protection Rating IP20 (chassis)
Dimensions (W×H×D) 22.5mm×108mm×114.5mm
Weight 0.54kg

Advantages and Features ABB UFC760BE143

  1. Dual – Bus Redundancy: ABB UFC760BE143 uses dual Profibus DP channels to ensure communication continuity if one bus fails, improving system availability in safety – critical scenarios.
  2. Rich I/O for On – site Needs: 16 digital inputs and 8 test outputs cover diverse field signal collection and debugging requirements, reducing reliance on external test gear.
  3. Plug – and – Play ABB Integration: Seamlessly pairs with ABB Advant/Symphony backplanes and UFC760 series modules, cutting integration time and ensuring data consistency.
  4. Enhanced Fault Diagnosis: Built – in self – test (BIST) and real – time status monitoring rapidly pinpoint module or communication issues, shortening troubleshooting cycles.
  5. Compact and Durable: Lightweight and small – sized design saves cabinet space, while industrial – grade components resist voltage fluctuations and electromagnetic interference for long – term stability.

Application Cases

  1. Thermal Power Plant Auxiliary System Control: A 400MW power plant used ABB UFC760BE143 to connect its pump and fan control units to the DCS. The dual – bus design prevented communication interruptions, reducing auxiliary equipment downtime by 25% and improving overall plant efficiency.
  2. Petrochemical Reactor Temperature Monitoring: A refinery integrated ABB UFC760BE143 into its reactor temperature control loop. Its rich I/O ports simplified the connection of thermocouples and transmitters, slashing commissioning time by 20% and ensuring precise temperature regulation.
  3. Chemical Plant Batch Process Automation: A chemical plant deployed ABB UFC760BE143 in its batch production line. The module’s multi – protocol support linked legacy and new control devices, avoiding a 2 – day production shutdown during system upgrade and saving $35k in downtime costs.

Competitor Comparison

Comparison Item ABB UFC760BE143 Siemens ET 200SP IM 155 – 6DP HF Honeywell TDC3000 Interface Card
Communication Redundancy Dual Profibus DP Single Profibus DP (optional redundancy) No native redundancy
Digital Inputs 16 channels 8 channels (expandable) 12 channels
Test Outputs 8 channels 4 channels 6 channels
ABB Compatibility Native (Advant/Symphony) Requires converter Requires adapter
Safety Rating SIL 2 compliant SIL 1 compliant SIL 1 compliant
Estimated Price (USD) ~ $1,900 ~ $1,700 ~ $1,800

Selection Suggestions

  1. Select ABB UFC760BE143 for ABB Advant/Symphony DCS users to leverage native backplane integration and dual – bus redundancy.
  2. Choose ABB UFC760BE143 when needing 16 digital inputs and 8 test outputs for extensive field device connection and on – site debugging.
  3. Opt for ABB UFC760BE143 in industries with high reliability demands, such as power generation and petrochemicals, to ensure uninterrupted communication.
  4. Use ABB UFC760BE143 for DCS upgrades to replace outdated interface boards and enhance system data transmission efficiency and fault – tolerance.

Precautions

  1. Ensure ABB UFC760BE143 is paired with compatible ABB backplanes and UFC760 series controllers for proper data exchange.
  2. Configure Profibus DP parameters (baud rate, address) to match connected devices to avoid communication failures.
  3. Use a regulated 24VDC power supply to prevent signal distortion and module damage.
  4. Follow ABB’s anti – static and installation guidelines to ensure long – term stable operation of ABB UFC760BE143.
