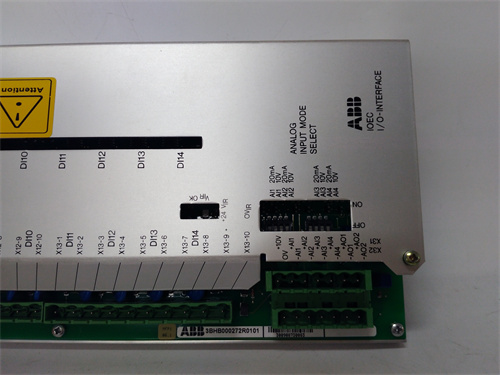

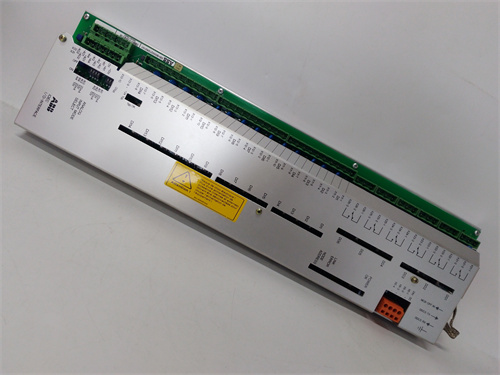

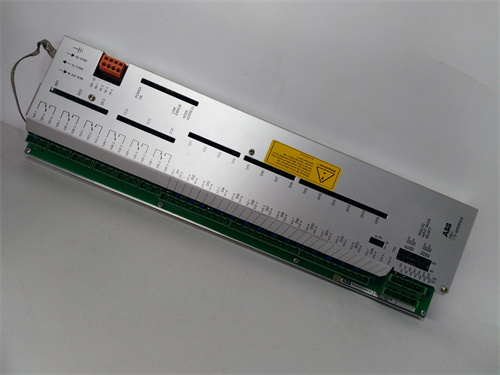

ABB UFC719AE01 3BHB003041R0101 3BHB000272R0001

Description

Product Description

The ABB UFC719AE01 is a critical high-speed communication and control interface module within the ABB 800xA system, identified by the article numbers 3BHB003041R0101 and 3BHB000272R0001. This module typically functions as a Fieldbus Controller or a specialized processor for managing high-performance I/O networks, such as PROFIBUS DP or other real-time fieldbus systems. The ABB UFC719AE01 serves as a vital link, enabling the AC 800M controller to communicate efficiently with a wide array of remote field devices and I/O stations. For comprehensive technical data sheets, configuration manuals, and application notes, the essential resource is the official ABB Library portal for the ABB UFC719AE01. The performance of distributed control architectures often hinges on the reliability and speed of these communication modules. Implementing the UFC719AE01 ensures robust data exchange between the central controller and the process periphery, which is fundamental for the integrity of complex automation strategies.

Product Parameters

• Manufacturer / Brand: ABB.
• Module Designation: UFC719AE01.
• Article Numbers: 3BHB003041R0101 (likely the main module), 3BHB000272R0001 (could be a related kit or an alternative/earlier revision).
• System Compatibility: ABB System 800xA, specifically for the AC 800M High Performance or PM891 controller family.
• Function: High-speed Fieldbus Communication Controller (often for PROFIBUS DP-V1 Master functionality).
• Communication Interface: Features a PROFIBUS DP port (RS-485) capable of operating at high baud rates (up to 12 Mbps) and supporting a large number of slaves.
• Integration: Plugs directly into the controller’s base unit or an extension unit, acting as a coprocessor dedicated to fieldbus management.
• Cyclic Data Exchange: Manages deterministic cyclic data exchange with remote I/O, drives, and other intelligent field devices on the PROFIBUS network.
• Diagnostics: Provides extensive diagnostic capabilities for the network and connected devices, accessible through the 800xA engineering interface.
• Configuration: Configured using the ABB Control Builder engineering tool, where the PROFIBUS network topology and device parameters are defined.
• Form Factor: A compact module designed for slot-in installation on an AC 800M CPU base unit or a specific communication rack.

Advantages and Features

• High-Performance Communication: Dedicated processing for the PROFIBUS protocol ensures fast, deterministic, and reliable data exchange, offloading this task from the main controller CPU.
• Scalability: Supports large and complex PROFIBUS DP networks with many slaves, making it suitable for extensive plant-wide automation systems.
• Seamless 800xA Integration: Fully integrated into the ABB 800xA engineering and runtime environment, allowing for centralized configuration, monitoring, and diagnostics.
• Advanced Diagnostics: Offers powerful diagnostic tools to monitor network health, slave status, and communication errors, facilitating quick troubleshooting and reduced downtime.
• Proven Reliability: Designed for continuous operation in industrial environments, ensuring long-term stability of the critical control network.

Application Cases in Industry

• Automotive Manufacturing: Connects the AC 800M controller to dozens of PROFIBUS DP remote I/O stations and variable frequency drives across a painting or assembly line.
• Chemical Processing: Serves as the main PROFIBUS master to communicate with distributed I/O clusters and smart transmitters in a batch or continuous process plant.
• Power Plant Auxiliary Systems: Manages communication with motor control centers (MCCs), pump controls, and actuator systems via PROFIBUS DP throughout a power generation facility.
• Pulp and Paper Mills: Integrates a wide array of drives, sensors, and section controls on a paper machine into the central DCS via a high-speed PROFIBUS network.
• Water Treatment Facilities: Links remote pump station PLCs and I/O panels back to a central SCADA controller using a robust PROFIBUS DP backbone.

Comparison with Competing Products

Competing products are high-performance fieldbus communication modules from other DCS/PLC vendors, such as the Siemens SIMATIC CP 443-5 Extended (for S7-400) or the Emerson DeltaV PROFIBUS DP Interface Card. The ABB UFC719AE01 differentiates itself through its native and optimized integration within the ABB 800xA and AC 800M ecosystem. Compared to a generic third-party PROFIBUS master card, the UFC719AE01 is fully supported within Control Builder, with pre-defined device integration for ABB and third-party slaves, simplifying engineering. Its performance is competitive, but its primary advantage is the cohesive user experience and single-vendor support within an ABB-centric automation architecture.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the ABB UFC719AE01 when designing a new 800xA system or expanding an existing one that requires high-performance, deterministic communication with a large number of PROFIBUS DP devices.
  2. Carefully plan the PROFIBUS network topology, including baud rate, total cable length, and the number of slaves to ensure they are within the module’s specifications and PROFIBUS guidelines.
  3. Verify the compatibility of the specific AC 800M controller model and base unit with the UFC719AE01 module.
• Precautions:
  1. Network Configuration Complexity: Setting up a large, optimized PROFIBUS network requires expertise. Incorrect device addresses, baud rate settings, or cable termination will cause communication failures.
  2. Termination and Shielding: The PROFIBUS network must be properly terminated at both ends with active terminators. The cable shield must be grounded correctly at one point to avoid noise and signal reflection issues.
  3. GSD Files: You will need the correct Device Master Data (GSD) files for every PROFIBUS slave device on the network to properly configure them in Control Builder.
  4. Firmware Compatibility: Ensure the firmware version of the UFC719AE01 module is compatible with the version of Control Builder and the AC 800M controller firmware.
  5. Sourcing and Identification: Use the precise article numbers (3BHB003041R0101 / 3BHB000272R0001) for procurement. Source from authorized ABB distributors to ensure genuine hardware with correct firmware and access to technical support. Always refer to the specific manual for the purchased article number.
