ABB UAC389AE02 HIEE300888R0002

Description

Product Description

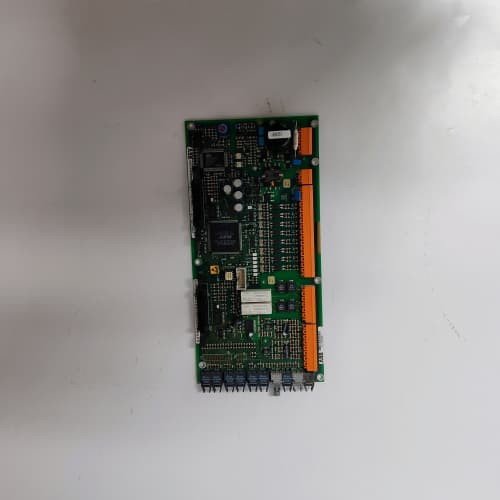

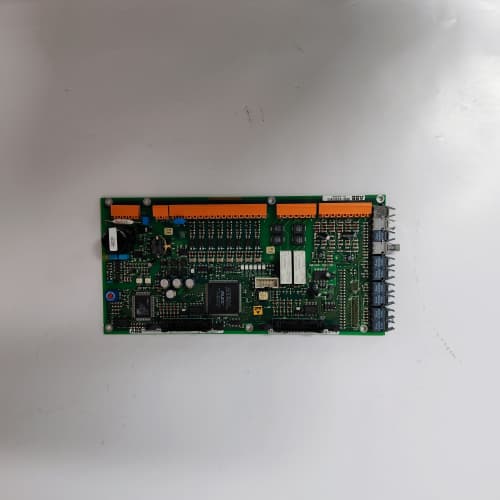

The ABB UAC389AE02 HIEE300888R0002 is a specialized analog input/output termination module engineered for ABB’s Unitrol 5000 and Unitrol 6000 excitation control systems, serving as the critical interface between field instrumentation and excitation regulator electronics in synchronous generator applications. This high-density termination board provides organized, reliable connection points for generator voltage transformers, current transformers, RTDs, and position feedback devices essential for automatic voltage regulation and power system stabilization. The ABB UAC389AE02 HIEE300888R0002 functions as the centralized wiring hub within ABB’s digital excitation platforms, consolidating dozens of generator instrumentation signals into standardized ribbon cable connections to UAC389 series analog processing modules. Designed for continuous operation in turbine hall environments, this module withstands significant vibration, elevated temperatures, and electromagnetic interference characteristic of high-power generation equipment. The ABB UAC389AE02 HIEE300888R0002 mounts within Unitrol excitation cubicles and interfaces directly with UAC389 analog I/O modules via ABB’s proprietary backplane and ribbon cable interconnect system.

Product Parameters

• Model: ABB UAC389AE02 HIEE300888R0002
• Product Type: Analog I/O Termination Board, Excitation Control System
• System Compatibility: ABB Unitrol 5000, Unitrol 6000
• Function: Field signal aggregation and distribution for analog I/O modules
• Input Channels: Up to 16 analog inputs (voltage, current, RTD, potentiometer)
• Output Channels: Up to 8 analog outputs (4–20 mA, ±10 V DC)
• Signal Types: Generator PT/CT secondaries (100–120 V AC, 1/5 A AC), 4–20 mA, ±10 V DC, RTD (Pt100, Ni100), potentiometer position
• Input Protection: Transient suppression, overvoltage clamping, RFI filtering
• Isolation: 2.5 kV AC channel-to-ground, 1.5 kV AC channel-to-channel (grouped)
• Indicators: Power present LED, channel status LEDs (per group)
• Connections: Cage clamp terminal blocks, ribbon cable headers to UAC389 modules
• Wiring: 0.2–2.5 mm² (24–12 AWG) with ferrule compatibility
• Mounting: Panel mount within Unitrol excitation cubicle
• Operating Temperature: -10°C to +55°C
• Certifications: CE, UL, CSA, IEC 61000-6-2/6-4, IEEE C37.90, marine type approval

Advantages and Features

The ABB UAC389AE02 HIEE300888R0002 delivers critical infrastructure for excitation system reliability through its systematic organization of generator instrumentation wiring, transforming complex, distributed sensor arrays into maintainable, documented interconnection points. Unlike generic terminal blocks requiring point-to-point tracing, the ABB UAC389AE02 HIEE300888R0002 provides clearly labeled, grouped terminations corresponding to specific generator monitoring functions—voltage sensing, current measurement, temperature monitoring, and position feedback—dramatically reducing troubleshooting time during excitation system commissioning and maintenance. The board incorporates comprehensive transient voltage suppression on all field inputs, protecting sensitive Unitrol analog electronics from lightning-induced surges and switching transients coupled through generator PT and CT secondary wiring. Integrated RFI filtering attenuates high-frequency electromagnetic interference from nearby thyristor firing circuits, ensuring clean measurement signals essential for precision voltage regulation. The ABB UAC389AE02 HIEE300888R0002 ‘s modular architecture enables partial board replacement during generator outages, as individual signal groups can be isolated while maintaining excitation system operation on redundant measurement channels. The ribbon cable interface eliminates hundreds of individual wires between termination boards and analog processing modules, reducing assembly errors and improving cabinet airflow for thermal management. The board’s rugged FR-4 construction with 2-ounce copper provides exceptional current-carrying capacity for CT secondary circuits and resistance to thermal cycling fatigue. Comprehensive test points provide safe access for maintenance personnel to verify generator instrumentation signals without disrupting operating excitation control circuits or exposing personnel to high-energy PT/CT hazards.

Application Cases in Application Fields

• Nuclear Turbine Generators: Deployed on 1,400 MW turbine-generators in pressurized water reactor stations, the ABB UAC389AE02 HIEE300888R0002 consolidates redundant generator PT and CT signals for Class 1E qualified voltage regulation, providing organized termination for safety-related excitation control channels.
• Combined Cycle Gas Turbines: Installed on multiple GE 7FA gas turbine generators retrofitted with Unitrol 6000 excitation systems, the ABB UAC389AE02 HIEE300888R0002 terminates generator terminal voltage and stator current signals from existing outdoor yard instrumentation, eliminating complete switchgear rewiring.
• Hydroelectric Generators: Utilized on vertical shaft Francis turbine-generators in pumped storage plants, the ABB UAC389AE02 HIEE300888R0002 provides reliable termination for RTD bearing temperature sensors and turbine position feedback devices, its vibration-resistant cage clamp terminals ensuring continuous operation in high-vibration environments.
• Industrial Cogeneration: Applied in paper mill extraction steam turbine generators, the ABB UAC389AE02 HIEE300888R0002 interfaces with existing generator instrumentation during excitation system modernization, enabling Unitrol 5000 installation without turbine-generator replacement.
• Synchronous Condenser Projects: Implemented in wind farm synchronous condenser installations, the ABB UAC389AE02 HIEE300888R0002 provides termination for high-speed voltage tracking signals and VAR dispatch commands, its RFI-filtered inputs ensuring clean measurement in electrically noisy converter environments.

Comparison with Competing Products

The ABB UAC389AE02 HIEE300888R0002 offers significant advantages in channel density (16 AI / 8 AO) compared to GE EX2100e (12 AI / 6 AO) and Siemens THYRIP (8 AI / 4 AO) termination solutions, providing up to 2:1 cabinet space savings in large generator excitation retrofits. The board’s integrated RFI filtering represents a unique feature absent from competing products, essential for accurate voltage measurement in thyristor-based excitation systems where high-frequency switching noise contaminates PT secondary signals. The ABB UAC389AE02 HIEE300888R0002 ‘s vibration-resistant cage clamp terminals provide superior reliability in turbine hall environments compared to traditional screw terminals susceptible to loosening from continuous vibration. For facilities committed to ABB Unitrol excitation technology, this termination board represents the optimal signal interface solution for new generator installations and existing system upgrades.

Selection Suggestions and Precautions

• System Compatibility Verification: Confirm that your Unitrol 5000 or Unitrol 6000 system configuration includes compatible UAC389 analog I/O modules for use with the ABB UAC389AE02 HIEE300888R0002 termination board; verify I/O module part numbers against ABB compatibility documentation.
• PT/CT Input Rating: The ABB UAC389AE02 HIEE300888R0002 accepts standard generator PT secondaries (100–120 V AC) and CT secondaries (1 A or 5 A AC); verify that field device ratings match board input specifications to prevent measurement errors or equipment damage.
• RTD Connection Configuration: When connecting RTD sensors to the ABB UAC389AE02 HIEE300888R0002 , use 3-wire connection configuration with all three wires terminated at board terminals; 2-wire connections introduce lead resistance errors unacceptable for accurate temperature measurement.
• Shield Grounding Practice: The ABB UAC389AE02 HIEE300888R0002 requires single-point grounding of instrumentation cable shields at the termination board entry; do not connect multiple shield ground points or ground shields at both ends, which create ground loops introducing 50/60 Hz interference into excitation measurement circuits.
• Spare Parts Strategy: Given the ABB UAC389AE02 HIEE300888R0002 ‘s critical role in excitation system signal integrity and typical lead times of 10–14 weeks, maintain configured spare termination boards for each generator installation; passive design means spares have virtually unlimited shelf life when stored in static-shielded packaging.
• Environmental Installation: Although rated for turbine hall environments, install the ABB UAC389AE02 HIEE300888R0002 within enclosed excitation cubicles with appropriate filtration; direct exposure to conductive dust, oil mist, or steam leaks compromises insulation resistance and measurement accuracy.
• Documentation Requirements: Maintain accurate as-built documentation of ABB UAC389AE02 HIEE300888R0002 field wiring assignments, including PT/CT ratio correction factors, RTD calibration coefficients, and potentiometer scaling parameters; without current termination drawings, troubleshooting excitation system measurement errors becomes extremely time-consuming.
• Retrofit Planning: When upgrading from analog to digital excitation systems, existing generator instrumentation wiring can often be re-terminated on new ABB UAC389AE02 HIEE300888R0002 boards; however, verify that existing PTs and CTs meet accuracy requirements for digital excitation before committing to re-termination.
• Pre-Commissioning Verification: Before generator start-up, perform complete loop checks on all ABB UAC389AE02 HIEE300888R0002 terminated instrumentation; document baseline signal levels at 0%, 50%, and 100% rated conditions and compare with generator OEM specifications to identify wiring errors or marginal instrumentation before they cause operational trips.
• Connector Maintenance: Ribbon cable IDC connectors on the ABB UAC389AE02 HIEE300888R0002 are rated for limited insertion cycles; avoid unnecessary disconnection during troubleshooting and consider sacrificial extension cables for test access to preserve termination board connector life.
• Terminal Torque Specifications: When wiring field terminations on the ABB UAC389AE02 HIEE300888R0002 , tighten cage clamp screws to 0.5–0.6 Nm; insufficient torque results in intermittent connections, particularly in high-vibration turbine hall environments, causing nuisance alarms and measurement instability.
• Obsolescence Awareness: The UAC389AE02 remains in active production with committed ABB support for Unitrol 5000 and 6000 platforms; no immediate obsolescence concerns exist for new installations or existing facility expansions.
• Training Requirements: The ABB UAC389AE02 HIEE300888R0002 termination scheme requires understanding of excitation system signal requirements and ABB wiring practices; facilities should maintain trained personnel or establish service agreements with ABB for excitation system maintenance and troubleshooting.
• Periodic Inspection: Implement annual ABB UAC389AE02 HIEE300888R0002 visual inspection for terminal tightness, ribbon cable seating, and evidence of overheating or contamination; proactive identification of termination issues prevents unplanned generator outages and extends excitation system service life.
