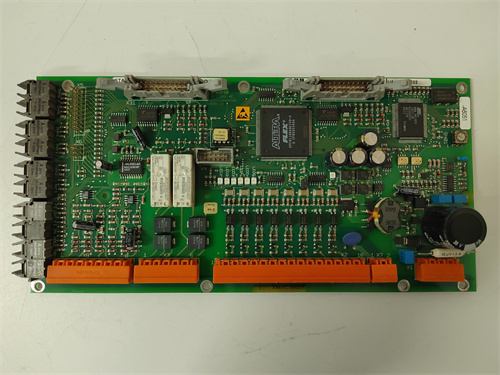

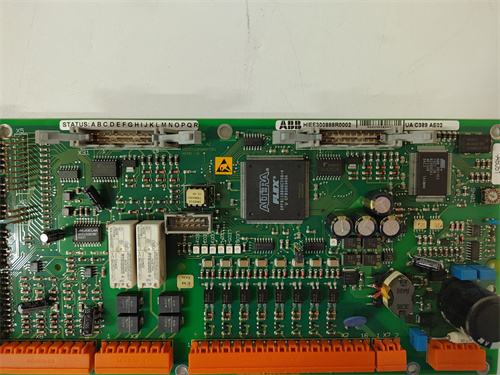

ABB UAC389 HIEE410506P104

Description

Product Description

The ABB UAC389 HIEE410506P104 is a specialized voltage and current acquisition module designed for ABB’s range of protective relays and measurement systems, likely belonging to the REL or REG series used in power system protection and control. This module serves as a critical sensing and signal conditioning interface, responsible for accurately measuring high-voltage and high-current signals from the power system via voltage transformers (VTs) and current transformers (CTs). Its primary function is to convert these high-level AC signals into scaled, isolated, and precise low-level analog signals that can be safely processed by the relay’s main CPU for metering, protection, and control algorithms. The ABB UAC389 HIEE410506P104 ensures the integrity and accuracy of the fundamental input data upon which all protective decisions are based. This module is engineered for reliability in the demanding electrical environment of substations, with robust isolation to protect sensitive electronics. The precise performance of the ABB UAC389 is fundamental for the correct operation of the relay, making it a vital component in ensuring grid stability and equipment safety.

Product Parameters

• Module Family: ABB Voltage/Current Acquisition Module (for protection relays).
• Module Type: Analog Input Acquisition Board.
• Input Signals: High-voltage and high-current inputs from instrument transformers.
  • Voltage Inputs: For connection to VT secondaries (e.g., 110V / √3).
  • Current Inputs: For connection to CT secondaries (e.g., 1A or 5A).
• Channels: Typically provides multiple channels for three-phase voltages and currents, and possibly neutral/ground currents.
• Isolation: Provides high galvanic isolation (several kV) between the high-voltage primary side and the low-voltage secondary electronics.
• Signal Conditioning: Includes filtering, anti-aliasing, and analog-to-digital conversion (ADC) circuitry.
• Accuracy: High measurement accuracy (e.g., Class 0.5 or better) for both voltage and current, essential for precise protection and metering.
• Mounting: Installs internally within a compatible ABB relay chassis (e.g., REL or REG series).
• Communication: Interfaces with the relay’s main processor via an internal bus.
• Part Number: HIEE410506P104 is a specific manufacturing/assembly code for this variant.

Advantages and Features

• High Precision and Stability: Delivers accurate and stable measurement of power system parameters over a wide range of temperatures and operating conditions, which is critical for reliable protection operation.
• Robust Safety Isolation: The integrated high-voltage isolation is a critical safety feature that protects both personnel and the relay’s digital circuitry from faults on the primary power system.
• Optimized for Protective Relaying: The analog front-end design is optimized for the dynamic range and frequency response needed for power system protection algorithms, including harmonic immunity and fast response for fault detection.
• Proven Reliability in Harsh Environments: Designed to operate reliably in substation environments characterized by high electromagnetic interference (EMI), wide temperature swings, and continuous service.
• Seamless Relay Integration: As a genuine ABB component, the ABB UAC389 HIEE410506P104 guarantees full compatibility and performance within its intended relay platform, ensuring the system meets its specified protection standards.

Application Cases in Application Fields

• Transmission Line Protection: Forms the analog input stage for distance protection relays (e.g., ABB REL series), measuring line voltages and currents to detect faults.
• Transformer Differential Protection: Provides the precise, synchronized voltage and current measurements needed for transformer differential relays to distinguish between internal faults and inrush currents.
• Generator Protection: Used in generator protection relays to monitor stator currents and voltages for functions like loss of excitation (40) and overcurrent protection.
• Busbar Protection: Supplies current measurements from all feeders to a busbar protection relay for high-speed zone-based protection.

Comparisons with Competing Products

• Vs. Siemens SIPROTEC Analog Input Modules: Siemens relays have their own proprietary analog acquisition cards. The ABB UAC389 HIEE410506P104 is specific to ABB’s relay architecture. Competition is at the system (relay) level, focusing on overall relay performance, not the individual module.
• Vs. Generic Merging Units (MU) for IEC 61850-9-2: A modern merging unit digitizes analog signals at the source. The ABB UAC389 represents the traditional approach where analog signals are brought to the relay and digitized internally. Modern systems with MUs reduce wiring but represent a different architectural philosophy.
• Vs. Standard PLC Analog Input Cards: Standard PLC cards are not designed for the high isolation, accuracy, dynamic range, and safety standards required for power system protection. They are unsuitable for this application.

Selection Suggestions and Precautions

1. Exact Relay Compatibility: This module is not a universal spare part. It is designed for a specific ABB relay model (e.g., a particular REL 5xx or REG 6xx unit). Verify compatibility with the exact relay type and hardware version.
2. CT and VT Ratio Configuration: The relay’s software must be configured with the exact ratios of the connected CTs and VTs. An incorrect ratio setting will cause all measurements, protection, and metering to be erroneous, leading to maloperation.
3. Handling and ESD Protection: This is a sensitive electronic module. Handle with proper Electrostatic Discharge (ESD) precautions. Avoid touching connectors and components directly.
4. Calibration and Testing: After installation or replacement, the entire relay (including the ABB UAC389 HIEE410506P104 module) should undergo comprehensive functional and primary injection testing to verify measurement accuracy and protection logic.
5. Source from Authorized Channels: Due to its critical role in protection systems, always source this module from ABB or authorized distributors to ensure authenticity, correct firmware, and guaranteed performance. Counterfeit modules pose a severe safety risk.
