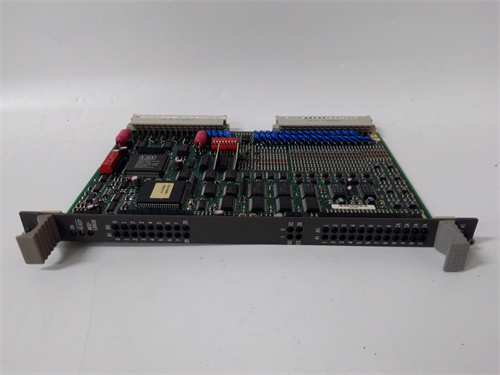

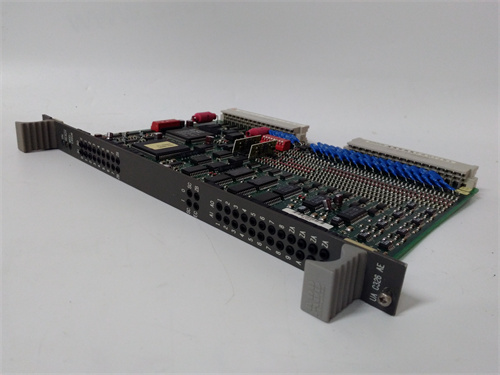

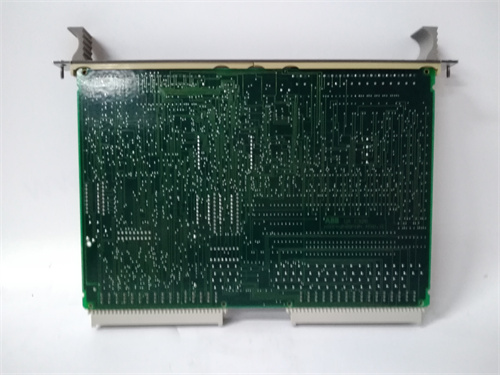

ABB UAC317AE HIEE300725R0001

Description

Product Description

The ABB UAC317AE, with the material code HIEE300725R0001, is a specialized analog output module for the ABB Advant Controller 800xA and MOD 300 distributed control system (DCS) families. This module functions as a high-precision interface, converting digital control signals from the controller into precise analog current or voltage outputs to command field devices. The ABB UAC317AE is engineered to drive final control elements such as control valves, variable speed drives, or positioners, ensuring accurate and reliable execution of control commands. For comprehensive technical specifications, configuration manuals, and calibration procedures, the essential resource is the official ABB Library portal for the ABB UAC317AE. As a critical link in the control loop, the performance of the UAC317AE directly impacts process stability and product quality. Its design incorporates robust isolation and diagnostics to maintain signal integrity in the electrically noisy environments of process industries.

Product Parameters

• Manufacturer / Brand: ABB.
• Module Designation: UAC317AE (Analog Output Module).
• Material Code: HIEE300725R0001.
• System Compatibility: ABB Advant Controller 800xA, MOD 300 systems.
• Function: Analog Output Module, typically providing 4 or 8 independent output channels.
• Output Signals: Configurable per channel for standard industrial signals:
  • Current output: 4-20 mA (with/without HART capability)
  • Voltage output: 0-10 VDC, ±10 VDC
• Resolution: High-resolution digital-to-analog conversion (e.g., 16-bit) for precise output control.
• Accuracy: High accuracy specification (e.g., ±0.1% of span) to ensure faithful reproduction of the control signal.
• Isolation: Channel-to-channel and channel-to-system isolation to prevent ground loops and eliminate interference between outputs.
• Load Driving Capability: Can drive a specified load resistance (e.g., up to 750 Ω for 4-20 mA outputs).
• Diagnostics: Includes fault detection for open circuit, short circuit, and out-of-range conditions, with status reporting to the controller.
• Form Factor: A single-slot module designed for installation in an S800 I/O station or compatible Advant/MOD 300 I/O unit.
• Power: Powered from the system backplane.

Advantages and Features

• High Precision and Stability: Delivers accurate and stable analog outputs, which is fundamental for precise process control in critical loops like reactor temperature or flow control.
• Flexible Configuration: Each channel can be independently configured for current or voltage output, allowing a single UAC317AE module to interface with a variety of field devices.
• Robust Electrical Isolation: Galvanic isolation protects the sensitive control system from transients and faults on the field side, enhancing system reliability and safety.
• Integrated Diagnostics: Continuous monitoring of output health enables predictive maintenance and immediate identification of field wiring issues, reducing troubleshooting time.
• Seamless DCS Integration: Fully integrated into the ABB 800xA engineering and operational environment, allowing for centralized configuration, monitoring, and documentation.

Application Cases in Industry

• Chemical Process Control: The ABB UAC317AE provides the 4-20 mA command signal to a control valve regulating the flow of a reactant into a continuous stirred-tank reactor (CSTR).
• Oil & Gas (Pipeline Pressure Control): Outputs a control signal to a pressure control valve (PCV) on a natural gas pipeline to maintain a set discharge pressure.
• Power Generation (Combustion Control): Commands the actuator on a fuel valve or damper in a boiler to maintain precise air-fuel ratio and steam pressure.
• Pharmaceutical Manufacturing: Controls the speed of a peristaltic pump via a 0-10V signal for accurate dosing of active ingredients in a batch process.
• Pulp & Paper (Basis Weight Control): Provides the control signal to a thick stock valve actuator to regulate the consistency and flow of pulp onto the paper machine wire.

Comparison with Competing Products

Competing products are analog output modules from other DCS vendors, such as the Emerson DeltaV CHARM AO card or the Siemens SIMATIC ET 200SP F-AO. The ABB UAC317AE differentiates itself through its native integration and long-proven performance within the ABB Advant and 800xA installed base. Compared to a generic analog output card, the UAC317AE offers certified performance, advanced diagnostics, and guaranteed interoperability within the ABB ecosystem. Its primary advantage is for users of ABB DCS systems, where it provides a reliable, fully supported component with a known history in critical process applications.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the ABB UAC317AE for applications within an existing ABB Advant or 800xA system that require high-integrity analog output signals.
  2. Verify the number of output channels and the required signal types (4-20 mA, 0-10V) match your application needs. The UAC317AE can often be configured in mixed mode.
  3. Ensure the module’s load driving capability matches the input impedance of the field device it will control.
• Precautions:
  1. Configuration is Mandatory: Each channel of the UAC317AE must be correctly configured in the system engineering software (e.g., Control Builder M) for signal type, range, and fail-safe mode before operation.
  2. Field Wiring Practices: Use proper shielded twisted-pair cables for analog outputs. Connect shields at the single-point ground in the marshalling cabinet or I/O rack, not at the field device, to avoid ground loops.
  3. Intrinsic Safety (IS) Considerations: If driving devices in a hazardous area, the UAC317AE must be used in conjunction with approved intrinsic safety barriers or isolators. The module itself is not typically IS.
  4. Fail-Safe Value Setting: Configure the fail-safe output value (e.g., 4 mA, 20 mA, or hold last) appropriately for each control loop to ensure the process moves to a safe state on module or system fault.
  5. Genuine Parts and Calibration: Source the module using the material code HIEE300725R0001 from authorized ABB channels. While the module is highly accurate, periodic loop calibration (including the UAC317AE, wiring, and field device) is recommended for critical loops. Maintain documentation of the configuration.
