ABB TU810V1 3BSE013230R1 | Compact Terminal Unit, S800 I/O

Description

Product Introduction

That ammonia plant in Louisiana—the one with the 800xA system that ran seven years without a hiccup—finally had a failure. Not the CPU, not an AI module. A TU810V1. The plastic around a terminal screw had cracked sometime in the 2000s, finally let go, and the loose wire shorted 24 V to ground. Took us two hours to find it because everybody was focused on the “smart” electronics.

The ABB TU810V1 3BSE013230R1 is the foundation of the S800 I/O system. It’s the gray plastic base that snaps onto DIN rail, holds the electronics module, and gives you those two rows of screw terminals. Eight channels—four on top, four on the bottom. On the left side, the bus connector passes power and communication to the next unit. On the right, a termination cap or another TU. Inside, it’s just copper traces and plastic dividers, but those traces are rated for 10 A continuous, and the creepage distances meet IEC 60664 for 250 V working voltage. It’s simple. It’s supposed to be. When it fails, it’s almost always mechanical—cracked housing, corroded terminal, bent pin.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A terminal unit doesn’t have a processor, so our test is part mechanical, part electrical.

1. Incoming Verification
   • Match the model number: TU810V1 3BSE013230R1. (There’s a TU810, no V1—different bus type—so the suffix matters.)
   • Inspect the housing: no cracks around the screw terminals, no deformation of the DIN rail latch.
   • Check the gold-plated bus connector fingers—they should be bright, not worn brass.
2. Mechanical Check
   • Snap it onto a DIN rail test jig. It should click firmly, no rocking.
   • Release lever: operates smoothly, no binding.
   • Insert a mating I/O module (e.g., AI810). It should seat fully, and the locking screw should engage without force.
3. Electrical Parameters
   • Continuity test: between each terminal and its corresponding bus pin—resistance <0.1 Ω.
   • Isolation test: 500 V megger between adjacent channels—must hold >10 MΩ.
   • Bus power check: apply 24 V to the left-side bus connector, measure at the right-side output—voltage drop <50 mV at 1 A load.
4. Live Functional Test
   • Assemble a test stack: TU810V1 + AI810 + next TU810V1.
   • Power up the bus from an SD821 power supply.
   • Verify the AI module powers up (green LED) and communicates with a PM861 via the bus.
   • Loop current through each channel—no interruption, no erratic readings.
5. Final QC & Packaging
   • QC sticker on the side with test date.
   • Wrap in anti-static foam (the bus contacts are static-sensitive).
   • Box with bubble wrap—no loose rattling.
   • We photograph the continuity test screen—available on request.

Field Replacement Pitfalls

I’ve replaced maybe two hundred of these. The stories repeat.

❗Bus Connector Damage
The gold fingers on the right side are fragile. If you slide a TU onto the rail with too much angle, you can bend them. Then the next module in the chain loses communication. We’ve seen whole racks swapped before somebody spotted the bent pin. Slide straight, or use the release lever to align.

Terminal Screw Torque
Spec is 0.5 N·m. Too loose, and the wire vibrates out over months. Too tight, and you crack the plastic housing—especially in cold weather when the plastic is brittle. Use a torque screwdriver, or at least a short-handled driver so you can’t overdo it.

Missing Termination Cap
The last TU in a rack needs a termination cap (or a bus terminator module). Without it, the bus signal reflects and communication becomes flaky—random I/O faults, modules dropping offline. The cap is cheap. Use it.

Field Power vs. Bus Power
The 24 V on the terminals is separate from the 24 V on the bus. They’re not connected internally. If you assume they are and skip wiring field power, your I/O modules will power up (green LED) but read zero on inputs. Easy mistake, easy fix, embarrassing when you explain it to the plant manager.

DIN Rail Grounding
The TU has a grounding clip that contacts the DIN rail. If the rail isn’t grounded, that clip does nothing. In a high-noise environment (VFDs, plasma cutters), ungrounded I/O picks up garbage. Run a green wire from the rail to panel ground.

Nail these five, and your S800 rack will outlast the control system.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this terminal unit was manufactured by ABB, packed in its original box, and never installed. The plastic hasn’t been UV-aged, the bus contacts have never mated to another module, and the DIN rail latch hasn’t been cycled.

Refurbished risk in plain terms
A refurbished TU is usually a pulled unit—maybe from a decommissioned line. The refurbisher tests continuity, maybe replaces a cracked housing if they have a donor. But the bus contacts have already been mated dozens of times; the gold plating is thinner; the plastic latch might be weakened. Failure rate is low, but when it fails, it’s usually intermittent—a loose connection that takes hours to find.

Real cost of a refurbished failure
If a TU’s internal trace cracks, one I/O channel drops out. If you’re lucky, it’s a spare. If it’s a critical temperature input on a reactor, you could lose the loop and have to shut down. That hour of lost production often costs more than the price of ten new TUs.

What we provide as proof

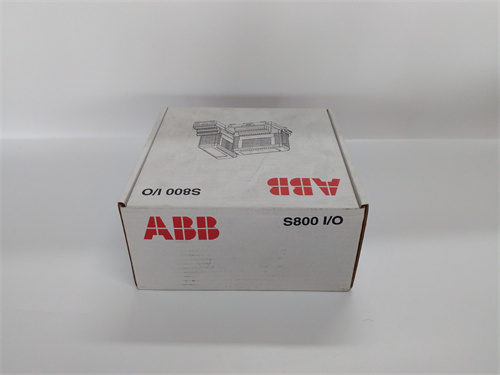

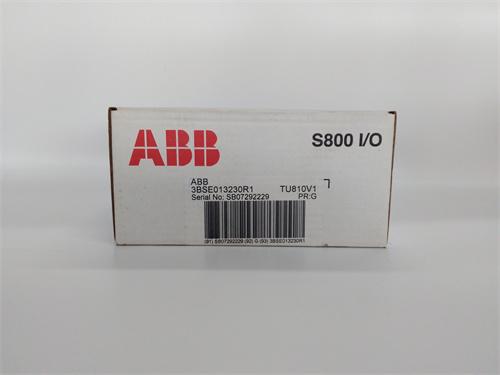

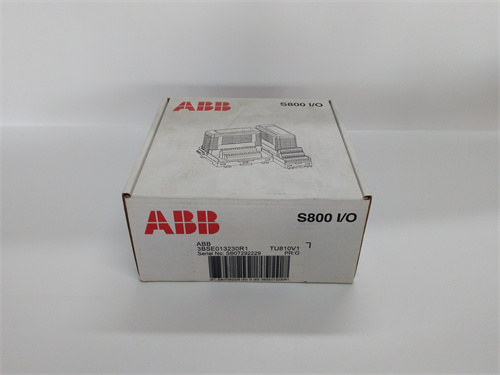

• OEM box (intact, with barcode).
• Serial number recorded—matches ABB’s label.
• Continuity test report for every channel.
• QC sticker with date.
• 12‑month warranty.

Pricing context
We’re priced 30% above the cheapest “as-is” TUs and 20% below ABB’s current list (when you can get one). That pays for the traceability, the mechanical inspection, and the warranty that doesn’t argue about “wear and tear.”

Performance Benchmarks & Test Results

Test conditions: TU810V1 mounted on DIN rail, bus powered from SD821, AI810 module installed, ambient 23 °C.

We keep a log of every continuity measurement—ask, and we’ll send the PDF.
