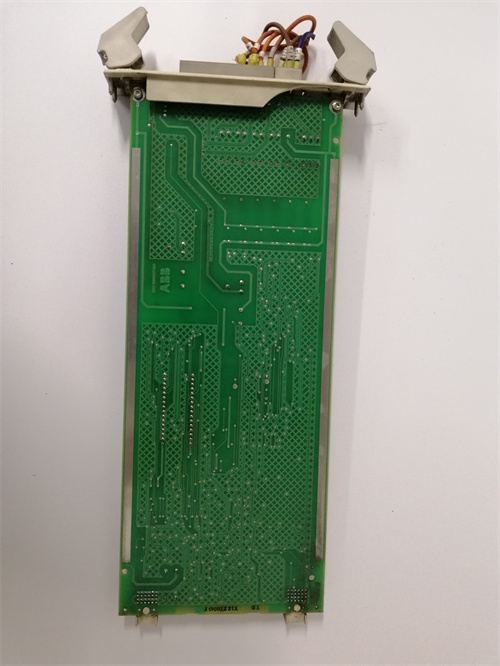

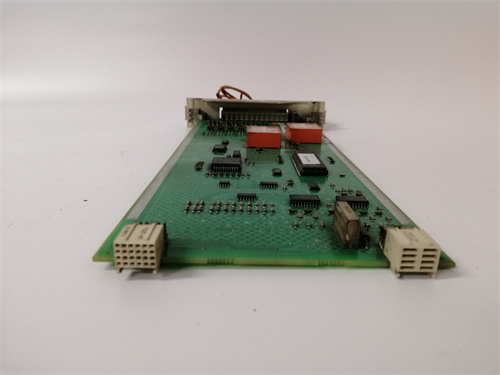

ABB TC560V2 3BSE022178R1

Description

Product Overview

The ABB TC560V2 3BSE022178R1 is a sophisticated communication and control module for the AC 800M high-performance controller family, part of the ABB Ability™ System 800xA. Specifically, it is a PROFIBUS Controller module that enables the AC 800M to act as a master (Class 1) on a PROFIBUS DP (Decentralized Periphery) network. The primary function of the ABB TC560V2 3BSE022178R1 is to manage high-speed, cyclic data exchange with distributed PROFIBUS DP slaves, such as remote I/O stations, variable frequency drives, motor starters, and other field devices, integrating them seamlessly into the central control strategy. For comprehensive technical manuals, configuration guides, and GSD files, please refer to the official product resource: ABB TC560V2 3BSE022178R1. This module is a cornerstone for building scalable, distributed control architectures in process and hybrid industries using the PROFIBUS standard.

Product Parameters and Specifications

• Function: PROFIBUS DP Master/Controller Communication Module for AC 800M.
• Communication Protocol: Implements PROFIBUS DP-V0/V1 standards, supporting both cyclic data exchange (Process Data) and acyclic services for parameterization and diagnostics.
• Ports: Features a single 9-pin D-sub (RS-485) connector for the PROFIBUS DP network.
• Performance: Supports configurable baud rates up to 12 Mbps and can manage a defined maximum number of slaves and I/O data (specified in its datasheet).
• Integration: Plugs directly into a communication slot on the AC 800M controller’s base unit (e.g., PM856, PM866) or a compatible communication extension module.
• Configuration: Configured entirely within the ABB Control Builder M Professional engineering software. Slave devices are added by importing their GSD (Generic Station Description) files.
• Diagnostics: Provides extensive diagnostic capabilities via status LEDs on the module and software-readable diagnostic buffers for detailed network and slave troubleshooting.
• Firmware: Operates with specific firmware that must be compatible with the AC 800M controller’s firmware and the Control Builder software version.

Advantages and Key Features

The ABB TC560V2 3BSE022178R1 offers key advantages for PROFIBUS-based system integration. Its primary benefit is providing native, high-performance PROFIBUS master functionality directly within the AC 800M controller, eliminating the need for external gateways and ensuring deterministic data exchange. The module delivers excellent reliability and diagnostic depth, allowing engineers to quickly pinpoint network issues, slave faults, or configuration errors from the central engineering workstation. It supports PROFIBUS DP-V1 for enhanced acyclic communication, enabling more sophisticated device configuration and data access. The TC560V2 is designed for seamless integration with the System 800xA engineering and operational environment, offering a unified experience for configuration, monitoring, and asset management of the entire PROFIBUS network. As a genuine ABB component, it guarantees long-term compatibility and support within the AC 800M lifecycle.

Application Cases in Industry

This module is widely used in industries where PROFIBUS DP is the standard fieldbus for distributed I/O and drives. In Automotive Manufacturing, an AC 800M with a TC560V2 module might control an entire paint shop or body shop, communicating with hundreds of remote I/O blocks and drive units over PROFIBUS. Within Water and Wastewater Treatment, it integrates remote pump station I/O and variable frequency drives into the central SCADA/DCS. For Food & Beverage processing lines, it connects to PROFIBUS-enabled sensors, actuators, and drives on packaging machinery. The ABB TC560V2 3BSE022178R1 is also common in Hybrid Process/Batch plants where skid-mounted packages with their own PROFIBUS I/O need to be integrated into the main DCS.

Comparison with Competing Products

• vs. PROFINET Controller (CI546): PROFINET is the Ethernet-based successor. The TC560V2 serves the extensive installed base of PROFIBUS networks, which remains dominant in many process and discrete applications. Selection is based on the existing plant network infrastructure.
• vs. Third-Party PROFIBUS Master Gateways: External gateways can connect a non-PROFIBUS controller to a PROFIBUS network but act as protocol translators, which can add latency, complexity, and a separate point of failure. The native TC560V2 integration is more performant, reliable, and easier to manage.
• vs. Other DCS Vendors’ PROFIBUS Cards (e.g., Siemens, Emerson): Competing DCS platforms have their own PROFIBUS master cards. The ABB TC560V2 is distinguished by its deep integration with ABB’s Control Builder software and the 800xA operational environment. The choice is typically dictated by the core control system vendor.

Selection Suggestions and Precautions

• Selection Advice:
  1. Controller Compatibility: Verify that your specific AC 800M processor model and firmware version support the TC560V2 module.
  2. Network Planning: Before configuration, plan the PROFIBUS network: assign unique slave addresses, determine the baud rate, design the cable topology, and ensure proper termination (active terminators at both ends of the trunk).
  3. GSD File Management: Collect the latest GSD files from all third-party PROFIBUS slave device manufacturers. These must be imported into Control Builder for proper configuration.
  4. I/O Data Size Calculation: Ensure the total configured I/O data (sum of input and output bytes for all slaves) does not exceed the module’s maximum capacity and the controller’s memory limits.
• Important Precautions:
  1. Network Topology and Termination: PROFIBUS DP requires a terminated, daisy-chained bus topology. Always use active terminators switched to “ON” at both physical ends of the trunk cable. Improper termination is the most common cause of communication errors.
  2. Grounding and Shielding: Use proper PROFIBUS cable (Type A) and ground the shield at one end only, typically at the controller or a central grounding point, to prevent ground loops.
  3. Address Conflicts: Ensure every slave device on the network has a unique address (1-125). Duplicate addresses will cause communication failure.
  4. Firmware Updates: Keep the TC560V2 module’s firmware updated to the version recommended by ABB for compatibility with your controller and to incorporate performance or diagnostic improvements.
