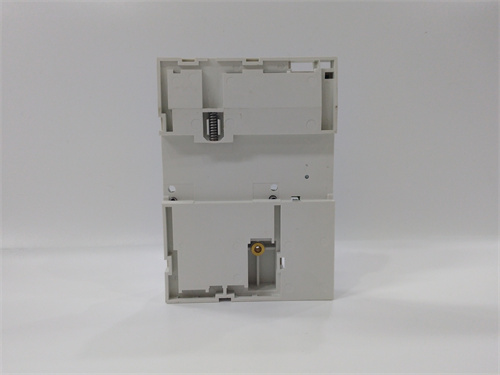

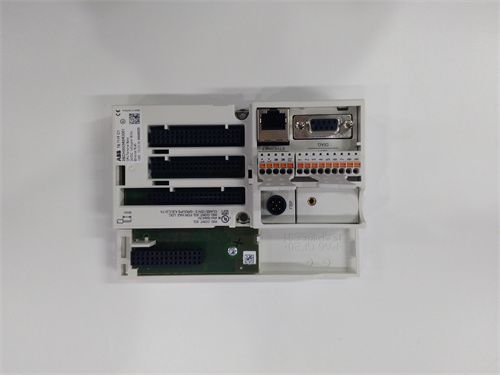

ABB TB711F 3BDH000365R0001

Description

ABB TB711F 3BDH000365R0001 Product Overview

ABB TB711F 3BDH000365R0001 is a specialized termination module designed for ABB’s Advant Master control system and compatible with the S800 I/O series. As a critical component in ABB’s distributed control system architecture, this unit provides reliable termination and signal conditioning for field wiring connections to analog and digital I/O modules. The ABB TB711F 3BDH000365R0001 is engineered to deliver organized, secure termination points for field devices while maintaining signal integrity in demanding industrial environments. The ABB TB711F 3BDH000365R0001 is widely recognized in process industries for its robust construction and seamless integration with ABB’s control platforms. When maintaining or expanding ABB-based automation systems, the ABB TB711F 3BDH000365R0001 represents a genuine OEM solution that ensures continued operational integrity.

Product Parameters and Technical Specifications

The technical specifications of the ABB TB711F 3BDH000365R0001 reflect its role as a dependable termination interface module.

• Model Number: TB711F
• Ordering Code: 3BDH000365R0001
• Series: Advant Master / S800 I/O Series
• Product Type: Termination Module / Field Termination Unit
• Primary Function: Provides termination points for field wiring connections to I/O modules
• Connection Points: Multiple screw-type or spring-clamp terminals for secure field wiring
• Signal Compatibility: Designed for both analog and digital I/O signals
• Cable Connection: Features specific connectors for mating with corresponding I/O modules
• Mounting: Engineered for DIN rail mounting within control cabinets
• Indicators: May include LED indicators for power and signal status on some variants
• Construction: High-quality materials for reliable operation in industrial environments
• Temperature Rating: Suitable for industrial temperature ranges

Advantages and Core Features

The ABB TB711F 3BDH000365R0001 offers distinct advantages for industrial control system installation and maintenance. Its primary feature is the clear segregation of field wiring from the sensitive electronics of the I/O modules, allowing technicians to connect and disconnect field devices without disturbing the I/O module itself. This modular approach significantly simplifies troubleshooting and replacement procedures. The termination module provides organized, labeled termination points that reduce wiring errors and simplify documentation. Furthermore, the ABB TB711F 3BDH000365R0001 includes robust terminal blocks that maintain reliable connections even under thermal stress and vibration common in industrial environments. The TB711F benefits from ABB’s extensive experience in process automation, incorporating design features that enhance reliability and simplify installation. As a genuine ABB component, the ABB TB711F 3BDH000365R0001 ensures that signal mapping aligns perfectly with the corresponding I/O modules, eliminating wiring confusion during installation. The module’s DIN rail mounting capability allows for rapid installation and secure retention in control cabinets.

Application Cases in Key Industries

The ABB TB711F 3BDH000365R0001 is deployed across various process industries where reliable signal termination is essential.

• Chemical Processing: Used to terminate field wiring from pressure transmitters, temperature sensors, and control valves in continuous and batch processes.
• Pulp and Paper Manufacturing: Employed in paper machine control systems to organize wiring from sensors and actuators distributed throughout the machine.
• Oil and Gas Production: Utilized on offshore platforms and onshore facilities to terminate wiring from field instruments in hazardous areas.
• Power Generation: Integrated into boiler and turbine control systems for organized termination of numerous field device connections.
• Pharmaceutical Production: Deployed in validated processes where organized, documented wiring is essential for regulatory compliance.
• Water and Wastewater Treatment: Applied in treatment plants to terminate wiring from pumps, valves, and sensors distributed across the facility.

Competitive Comparison

When compared to termination solutions from competing DCS platforms, the ABB TB711F 3BDH000365R0001 offers specific advantages within the ABB ecosystem. While Siemens ET200 or Rockwell FLEX I/O provide similar termination capabilities, the ABB TB711F 3BDH000365R0001 is specifically designed for seamless integration with ABB’s Advant Master and S800 I/O modules. Compared to generic terminal blocks, the genuine TB711F provides pre-engineered signal mapping that matches ABB’s I/O module pinouts, reducing engineering effort and eliminating wiring errors. The ABB TB711F 3BDH000365R0001 also includes features such as built-in test points or fuse holders that generic termination solutions cannot match. For facilities standardized on ABB control equipment, the ABB TB711F 3BDH000365R0001 provides consistent termination practices across the entire installation.

Selection Suggestions and Precautions

When selecting or deploying an ABB TB711F 3BDH000365R0001, several factors require careful consideration.

1. I/O Module Compatibility: Verify that the ABB TB711F 3BDH000365R0001 is compatible with your specific I/O module models and that signal mapping matches correctly.
2. Channel Count Requirements: Ensure the TB711F provides sufficient termination points for your application requirements.
3. Wire Size Compatibility: Confirm that the terminal blocks on the ABB TB711F 3BDH000365R0001 accept the wire gauges used in your installation.
4. Environmental Suitability: Verify that the TB711F‘s environmental ratings (temperature, humidity, pollution degree) are appropriate for your installation location.
5. DIN Rail Mounting: Ensure proper DIN rail type and mounting orientation for secure installation of the ABB TB711F 3BDH000365R0001.
6. Wiring Practices: Follow ABB’s recommended wiring practices, including proper wire stripping, ferrule use, and torque specifications for terminal screws.
7. Cable Routing: Plan cable routing to maintain separation between power and signal wiring, minimizing noise pickup.
8. Labeling: Properly label all field wiring to match the TB711F terminal designations for future troubleshooting.
9. Genuine Sourcing: Source the ABB TB711F 3BDH000365R0001 from authorized and reputable distributors to ensure authenticity, as counterfeit or improperly refurbished termination modules can compromise connection reliability.
