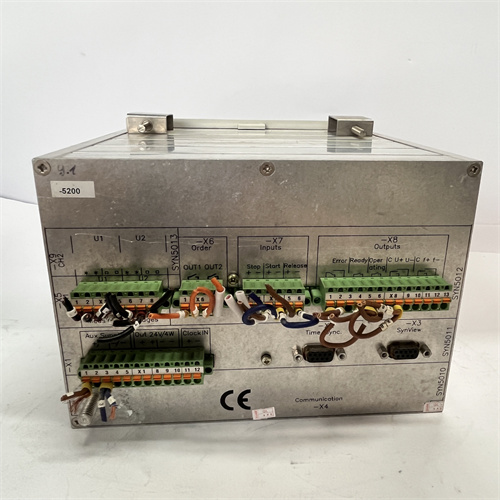

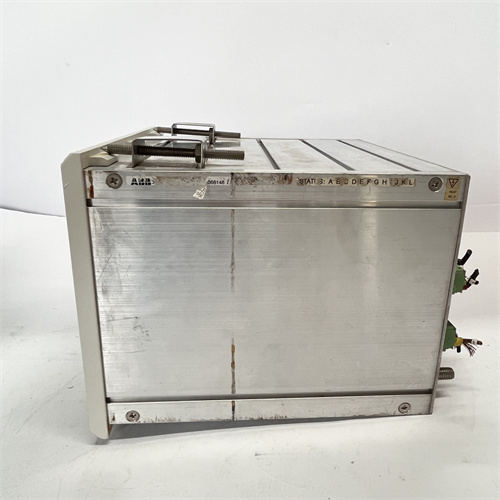

ABB SYN5202

Description

Product Description

The ABB SYN5202 is an advanced synchronization and control module, representing an evolution or a specific variant within ABB’s suite of synchronization solutions for its medium-voltage drive systems, such as the ACS 1000 and ACS 5000 series. This module is engineered to manage complex paralleling and load-sharing operations between multiple motors or between a motor and the utility grid. The ABB SYN5202 builds upon the core synchronization functionality to enable precise control for applications where two or more drives must operate in unison, sharing a mechanical load or operating in a master-follower configuration. For comprehensive technical specifications, application engineering guides, and configuration manuals, the essential resource is the official ABB Drive Systems documentation portal for the ABB SYN5202. Implementing the SYN5202 module allows for the creation of highly resilient and efficient multi-motor systems, such as twin-drive mills or multi-pump stations, where coordinated speed and torque control are paramount. Its sophisticated algorithms are key to optimizing performance and preventing damaging load imbalances in critical industrial processes.

Product Parameters

• Manufacturer / Brand: ABB.
• Series: Synchronization and Load Sharing Module for ACS Drives.
• Model: SYN5202.
• Function: Multi-Drive Synchronization and Load Balancing Controller.
• Compatibility: Designed for integration with specific ABB medium voltage AC drive families (e.g., ACS 1000, ACS 5000). Verification against the drive’s technical documentation is mandatory.
• Primary Control Modes: Typically supports:
  • Speed Synchronization: Ensuring two or more motors run at precisely the same speed.
  • Torque/Load Sharing: Actively balancing the load between multiple motors driving a common load (e.g., a ball mill with two pinions).
  • Phase Synchronization: Aligning the rotational phase of motors, which is critical for some multi-motor mechanical systems.
• Input Signals: Requires feedback signals from all involved drives/motors, such as speed (from encoders), torque current, and potentially position.
• Communication Interface: Utilizes high-speed communication links (often a dedicated fiber-optic bus like DCS 500 Link or DriveBus) to exchange real-time data between the SYN5202 and each drive’s control unit (DCU).
• Control Outputs: Provides correction signals to the individual drive regulators to adjust speed or torque references to maintain synchronization and load balance.
• Configuration: Highly configurable via dedicated software tools to set up the control structure, response parameters, and limits for load imbalance.
• Form Factor: A dedicated electronic module installed in the drive control cabinet.

Advantages and Features

• Precise Multi-Motor Coordination: Enables two or more large motors to behave as a single, unified power source, eliminating damaging torsional oscillations and mechanical stress caused by speed or load differences.
• Optimal Load Distribution: Actively balances the load between motors, maximizing overall drive train efficiency and preventing one motor from being overloaded while another is underutilized.
• Enhanced System Redundancy and Reliability: In a twin-drive setup, if one drive/motor fails, the ABB SYN5202 can facilitate a controlled shutdown or allow the remaining unit to continue at reduced load, improving process availability.
• Advanced Diagnostics and Monitoring: Provides detailed data on synchronization error, load imbalance, and system status, aiding in proactive maintenance and troubleshooting.
• Seamless ABB Drive Integration: As a native ABB component, it offers plug-and-play compatibility with the drive’s control architecture, ensuring reliable communication and optimized performance.

Application Cases in Industry

• Twin-Pinion Ball/Grinding Mills: The ABB SYN5202 is critical for synchronizing two large motors driving a single ball mill through two pinions. It ensures perfect speed matching and equal torque sharing to prevent gear damage and optimize grinding efficiency.
• Multi-Motor Conveyor Drives: Synchronizes the motors on long overland conveyors or cable belt conveyors to prevent belt slip, stretch, or uneven wear.
• Large Multiple Pump Stations: Coordinates several large pumps operating in parallel on a common header, ensuring they share the flow and pressure load evenly to improve efficiency and prevent pump cavitation.
• Dual-Drive Mixers and Agitators: Controls two motors driving a large mixer in a chemical or mining process, ensuring synchronized rotation for consistent mixing and mechanical integrity.
• Test Stands for Large Drivetrains: Used in dynamometer test facilities to synchronize multiple power absorption units or to motorize large test articles with multiple input points.

Comparison with Competing Products

Competing products are multi-drive coordination solutions from other manufacturers, such as Siemens (SIMOTION D for multi-axis/multi-drive control) or Rockwell Automation (Kinetix drives with integrated motion coordination). The ABB SYN5202 differentiates itself by being specifically engineered for high-power, medium-voltage mechanical drive applications rather than multi-axis robotics. Compared to using a standard PLC with analog setpoints for each drive, the SYN5202 provides a deterministic, high-speed, and dedicated control solution designed to handle the complex dynamics of large rotating masses. Its primary advantage is its proven performance and deep integration within ABB’s MV drive ecosystem for the most demanding mechanical synchronization tasks.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the ABB SYN5202 for applications where two or more medium-voltage drives must be electronically synchronized and/or share a mechanical load. It is not for simple standalone drive-to-line synchronization.
  2. A thorough torsional analysis of the mechanical system is highly recommended before implementation to understand the system’s natural frequencies and ensure the SYN5202‘s control parameters can be tuned effectively.
  3. Verify the exact compatibility with the specific drive models, control unit versions, and required communication interfaces.
• Precautions:
  1. System Complexity: The design and commissioning of a synchronized multi-drive system is complex and requires specialized knowledge in drive control, mechanics, and vibration analysis.
  2. Critical Feedback Signals: The system’s performance is entirely dependent on accurate, high-resolution feedback from all motors (e.g., encoders). Redundant feedback or robust diagnostic monitoring for sensor failure is crucial.
  3. Tuning Requirements: The control loops for synchronization and load sharing require careful tuning. Incorrect tuning can lead to system instability, oscillations, or even damage to the mechanical equipment.
  4. Fail-Safe Strategies: Define clear and tested failure-mode strategies. What happens if communication is lost with one drive? What if a motor trips? The SYN5202 and the overall control system must have safe and predefined responses.
  5. Expert Implementation: Configuration and commissioning of the ABB SYN5202 must be performed by ABB-certified system engineers. Source the module and related hardware through authorized ABB channels. Extensive factory and on-site testing, including running the motors uncoupled, is essential before full-load operation.
