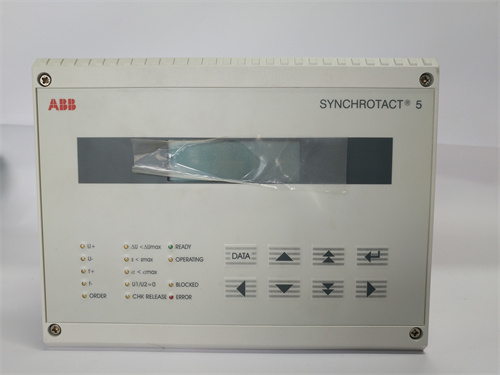

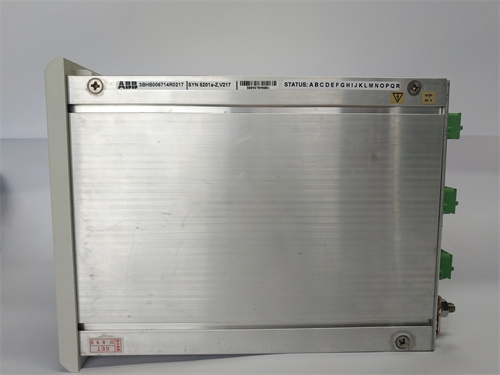

ABB SYN5201A-Z V217 3BHB006714R0217

Description

Product Description

The ABB SYN5201A-Z V217 3BHB006714R0217 is a precision static excitation system module designed for ABB’s UNITROL 5000 and SYNCHROTACT 5 series synchronous machine control platforms, delivering advanced automatic voltage regulation and power system stabilization for large turbine generators and synchronous condensers. This specialized control module serves as the primary voltage regulator processing unit within ABB’s digital excitation systems, executing real-time control algorithms at millisecond intervals to maintain generator terminal voltage within ±0.5% of setpoint under varying load and system conditions. The ABB SYN5201A-Z V217 3BHB006714R0217 incorporates ABB’s proprietary Select gain-adaptive control technology, automatically optimizing regulator response based on generator operating point and power system strength. Engineered for continuous duty in utility and industrial power generation environments, this module features redundant design architecture and comprehensive self-diagnostics. The ABB SYN5201A-Z V217 3BHB006714R0217 communicates with plant DCS systems via multiple protocols including Modbus, Profibus, and IEC 61850, enabling seamless integration into modern digital substation architectures.

Product Parameters

• Model: ABB SYN5201A-Z V217 3BHB006714R0217
• Product Type: Excitation Control Module, Automatic Voltage Regulator
• System Compatibility: ABB UNITROL 5000, SYNCHROTACT 5
• Processor: 32-bit RISC, 100 MHz
• Memory: 4 MB Flash, 2 MB SRAM, 128 kB non-volatile FRAM
• Control Functions: Automatic voltage regulation, reactive power control, power factor control, overexcitation limiting, underexcitation limiting, volts/hertz protection, power system stabilization
• Input Signals: Generator terminal voltage (3-phase), stator current (3-phase), field voltage, field current, synchronizing voltage
• Output Signals: Firing angle control to thyristor bridges, setpoint to external controllers
• Control Algorithm: Select gain-adaptive PID with power system stabilizer (PSS2B, PSS3B)
• Communication Ports: 2 x Ethernet (10/100), 2 x RS-232, 1 x RS-485, Profibus DP slave, Modbus RTU
• Redundancy: 1:1 hot-standby with automatic synchronization
• Diagnostics: Continuous self-test, input signal validation, output stage monitoring, communication integrity
• Indicators: Module status, active/standby, alarm summary, Ethernet link/activity
• Power Supply: 24–48 V DC or 110–240 V AC via external power module
• Operating Temperature: 0°C to 55°C
• Certifications: CE, UL, CSA, IEEE 421.2, IEEE 421.5 compliant

Advantages and Features

The ABB SYN5201A-Z V217 3BHB006714R0217 delivers unparalleled voltage regulation performance through its Select adaptive gain control architecture, which continuously analyzes generator reactive power output and system impedance to automatically select optimal PID gain parameters from multiple pre-tuned sets. Unlike conventional AVRs requiring conservative fixed gains to maintain stability across all operating conditions, the ABB SYN5201A-Z V217 3BHB006714R0217 applies aggressive tuning during strong system conditions for rapid voltage recovery while seamlessly transitioning to conservative gains during weak system conditions to prevent oscillatory instability. The module’s integrated dual-channel power system stabilizer implements both PSS2B (dual-input) and PSS3B (speed-based) IEEE standard models, effectively damping local mode and inter-area oscillations without compromising steady-state voltage regulation accuracy. Comprehensive limiter functions including overexcitation, underexcitation, stator current, and volts/hertz protection operate independently of external protection relays, providing coordinated generator protection integrated within the excitation control system. The ABB SYN5201A-Z V217 3BHB006714R0217 supports fully redundant hot-standby configuration with automatic, bumpless transfer upon primary module fault detection, maintaining continuous voltage control even during module maintenance or failure events. Built-in sequence of events recording captures 500 time-stamped events with 1 ms resolution for post-disturbance analysis, eliminating separate fault recorders for excitation system diagnostics. The module’s non-volatile FRAM memory maintains configuration parameters and historical trending data without battery backup, eliminating periodic battery replacement requirements. Cybersecurity features include role-based access control, encrypted communication, and audit logging compliant with NERC CIP and IEC 62443 standards.

Application Cases in Application Fields

• Nuclear Power Generation: Deployed on 1,400 MW turbine-generators in pressurized water reactor stations, redundant ABB SYN5201A-Z V217 3BHB006714R0217 modules provide Class 1E qualified voltage regulation with seamless transfer capabilities, maintaining grid frequency support during plant load rejection events.
• Pumped Storage Hydro: Installed on 300 MW reversible pump-turbines, the ABB SYN5201A-Z V217 3BHB006714R0217 coordinates excitation control through generating, pumping, and synchronous condensing modes, with adaptive gain scheduling optimizing performance across all operating quadrants.
• Combined Cycle Gas Turbines: Utilized on multiple GE 7FA gas turbine generators retrofitted with ABB excitation systems, the ABB SYN5201A-Z V217 3BHB006714R0217 provides coordinated voltage control with turbine control system via Modbus communication, achieving < 50 ms response to plant load rejection events.
• Industrial Cogeneration: Applied in paper mill extraction steam turbine generators, the ABB SYN5201A-Z V217 3BHB006714R0217 maintains plant bus voltage within ±1% during paper machine start-up representing 40% step load changes, its adaptive gains preventing voltage dips below critical process equipment dropout thresholds.
• Synchronous Condenser Installations: Implemented in wind farm synchronous condenser projects for grid inertia support, multiple ABB SYN5201A-Z V217 3BHB006714R0217 modules provide rapid VAR response to transmission voltage disturbances, achieving 90% reactive power output within 60 ms of voltage deviation detection.

Comparison with Competing Products

The ABB SYN5201A-Z V217 3BHB006714R0217 distinguishes itself through its advanced Select adaptive gain control technology, providing superior voltage regulation performance compared to GE EX2100e and Siemens THYRIP fixed-gain architectures. While Basler DECS-250 offers adaptive capabilities, the ABB SYN5201A-Z V217 3BHB006714R0217 ‘s implementation is specifically optimized for large turbine-generator applications with complex grid interconnections. The module’s integrated dual-channel PSS provides comprehensive oscillation damping unavailable from GE and Siemens single-channel implementations. The ABB SYN5201A-Z V217 3BHB006714R0217 ‘s battery-free FRAM memory eliminates periodic maintenance requirements and risk of configuration loss during extended generator outages. For facilities committed to ABB UNITROL excitation technology, this module represents the optimal AVR platform for new generator installations and existing system upgrades.

Selection Suggestions and Precautions

• System Compatibility Verification: Confirm that your UNITROL 5000 system configuration supports the ABB SYN5201A-Z V217 3BHB006714R0217 V217 firmware revision; earlier UNITROL platforms require control system upgrades or gateway interfaces for compatibility.
• Generator Parameter Configuration: The ABB SYN5201A-Z V217 3BHB006714R0217 requires accurate generator electrical parameters including synchronous, transient, and subtransient reactances, time constants, and saturation characteristics; incorrect parameters cause voltage instability and protection miscoordination.
• Power System Stabilizer Tuning: PSS parameters for the ABB SYN5201A-Z V217 3BHB006714R0217 must be established through system identification testing and validated by grid interconnection studies; improperly tuned stabilizers can amplify rather than damp power system oscillations.
• Redundancy Configuration: For critical baseload applications, configure redundant ABB SYN5201A-Z V217 3BHB006714R0217 modules with fiber-optic synchronization links; verify that both modules receive identical configuration and maintain continuous state synchronization.
• Communication Network Design: When integrating ABB SYN5201A-Z V217 3BHB006714R0217 with plant DCS via IEC 61850, design dedicated substation network with appropriate VLAN segmentation and GOOSE message prioritization to ensure deterministic communication for time-critical protection functions.
• Spare Parts Strategy: Given the ABB SYN5201A-Z V217 3BHB006714R0217 ‘s critical role in generator excitation control and typical lead times of 12-16 weeks for factory-configured units, maintain fully programmed hot-spare module for each excitation system with verified firmware and configuration backup.
• Firmware Management: Document ABB SYN5201A-Z V217 3BHB006714R0217 firmware revision and maintain archive copies of all installed versions; firmware upgrades require complete re-commissioning including gain tuning and protection function verification.
• Environmental Installation: Install the ABB SYN5201A-Z V217 3BHB006714R0217 in clean, vibration-free control room environments; excitation cabinet installation requires adequate filtering of turbine hall air intake to prevent conductive dust accumulation on circuit boards.
• Commissioning Requirements: The ABB SYN5201A-Z V217 3BHB006714R0217 requires specialized ABB commissioning software and trained application engineers for proper configuration; field commissioning by unauthorized personnel risks generator damage and extended outage durations.
• Obsolescence Awareness: The SYN5201A platform remains in active production with committed ABB support; however, evaluate UNITROL 6000 platform for new greenfield installations while maintaining ABB SYN5201A-Z V217 3BHB006714R0217 spares for existing fleet.
• Cyber Security Compliance: For NERC CIP regulated applications, configure ABB SYN5201A-Z V217 3BHB006714R0217 with enhanced cybersecurity features enabled, including SNMPv3, RADIUS authentication, and encrypted syslog; default settings do not meet critical infrastructure protection requirements.
• Parameter Documentation: Maintain complete records of ABB SYN5201A-Z V217 3BHB006714R0217 configuration parameters including AVR gains, PSS settings, limiter thresholds, and logic configuration; these records are essential for troubleshooting and insurance compliance.
• Periodic Proof Testing: Implement annual proof testing program for ABB SYN5201A-Z V217 3BHB006714R0217 protection and limiter functions using secondary injection test equipment; NERC PRC-019 requires verification of excitation system coordination with generator protection relays.
• Battery Maintenance: Although the ABB SYN5201A-Z V217 3BHB006714R0217 uses FRAM non-volatile memory, the module may contain RTC battery; verify battery status during annual maintenance and replace per ABB recommendation to prevent time-stamp errors in event records.
