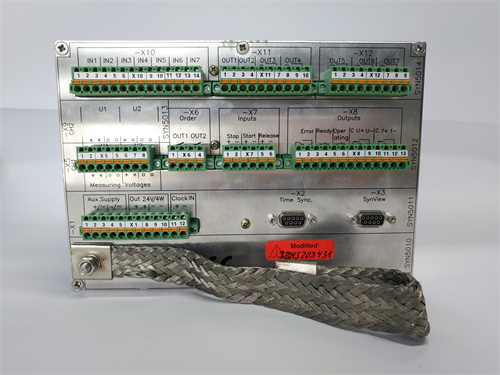

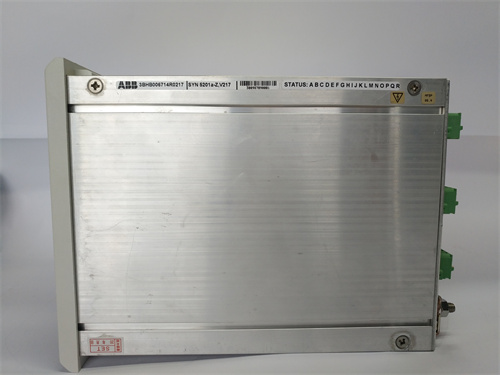

ABB SYN5201

Description

Product Description

The ABB SYN5201 is a versatile synchronization module designed for ABB’s medium voltage AC drives, particularly within the ACS 1000, ACS 5000, and similar series. This module’s primary function is to enable a variable speed drive to synchronize the speed and phase of its connected motor with an external power grid or with another running motor. The ABB SYN5201 is critical for applications requiring a “soft transfer” or “bumpless transfer,” where a motor must be smoothly connected to the mains supply without causing disruptive current surges or mechanical shock. For comprehensive technical specifications, application notes, and configuration manuals, the essential resource is the official ABB Drive Systems documentation portal for the ABB SYN5201. By implementing the SYN5201 module, engineers can create sophisticated control schemes for applications like pump or fan standby systems, hydro-pumping stations, and large compressor trains where seamless switching between drive control and direct line operation is essential. Its precise measurement and control capabilities make it a key component for enhancing system flexibility and reliability.

Product Parameters

• Manufacturer / Brand: ABB.
• Series: Synchronization Module for ACS Drives.
• Model: SYN5201.
• Function: Drive-to-Line / Drive-to-Drive Synchronization Module.
• Compatibility: Designed for integration with specific ABB medium voltage AC drive families (e.g., ACS 1000, ACS 5000). The exact compatibility must be verified against the drive’s technical documentation.
• Input Signals: Typically requires voltage and frequency signals from both the drive output and the target line (or other motor). This involves connections from voltage transformers (VTs).
• Control Logic: Contains algorithms to compare the phase, frequency, and voltage amplitude of the two sources. It provides control signals to the drive’s regulator to adjust the motor’s speed and phase until synchronization is achieved.
• Outputs: Provides command signals to the drive and often relay outputs to control external circuit breakers or contactors for the final connection (close command).
• Synchronization Parameters: Configurable parameters for synchronization tolerance (phase angle difference, voltage difference, slip frequency) and the sequence of the synchronization process.
• Communication: May interface with the drive’s main control unit via a proprietary bus or direct wiring.
• Form Factor: A dedicated electronic module designed for installation within the drive’s control cubicle or an associated panel.

Advantages and Features

• Enables Bumpless Transfer: Allows for the smooth and shock-free connection of a motor to the power grid, eliminating high inrush currents that can stress electrical networks and mechanical systems.
• Increases System Availability: Facilitates flexible operating modes. For example, a pump can be started and controlled by the drive for optimal flow, then synchronized and transferred to direct line operation for fixed-speed running, with the drive free to start another unit.
• Precise Synchronization Control: Advanced algorithms ensure very close matching of voltage, frequency, and phase angle before issuing the close command, ensuring a transient-free connection.
• Enhanced Process Reliability: Reduces mechanical stress on couplings, gears, and the driven equipment during mode transitions, leading to lower maintenance costs and higher reliability.
• Integrated Drive Solution: As an ABB-designed option, it offers guaranteed compatibility and seamless integration with the drive’s existing control and protection systems.

Application Cases in Industry

• Standby Pump/Fan Systems: In a water treatment plant with multiple pumps, the ABB SYN5201 allows a standby pump to be started by its VFD, synchronized with the pressurized header, and seamlessly transferred to line operation to replace a running unit, all without disrupting system pressure.
• Hydro Pumped Storage: Used in reversible pump-turbines where the unit must be synchronized to the grid in both pumping and generating modes, with the drive (in static frequency converter mode) providing the precise speed control for synchronization.
• Large Compressor Trains: In refineries or chemical plants, allows a spare compressor driven by a synchronous motor to be synchronized with a running train before engagement, preventing damaging torsional vibrations.
• Marine Electrical Systems: For ships with multiple generator sets, a similar synchronization principle (though often with dedicated generator controllers) is used; the SYN5201 concept applies to synchronizing large driven loads.
• Energy Recovery Systems: In applications where a large motor occasionally acts as a generator, the module can manage the re-synchronization and connection back to the grid.

Comparison with Competing Products

Competing products are synchronization solutions from other drive manufacturers, such as Siemens (SIPCON D2 for SIMOVERT/SINAMICS drives) or GE (Sync Module for its MV drives). The ABB SYN5201 differentiates itself through its native design and optimization for the ABB ACS drive platform. Compared to using external, generic synchronization relays, the SYN5201 is fully integrated with the drive’s control logic, offering more precise control, better diagnostics, and a simpler wiring interface. Its primary advantage is the single-vendor solution, ensuring all components (drive, regulator, synchronization) are designed to work together, reducing engineering and commissioning complexity.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the ABB SYN5201 only after confirming it is a valid and supported option for your specific ABB medium voltage drive model and firmware version. Consult the drive’s option list.
  2. This module is applied in specific system architectures. Clearly define the operational sequence (start-up, synchronization, transfer) and the fail-safe procedures before specifying the module.
  3. Ensure accurate voltage transformer (VT) signals are available for both the drive output and the target line, with the correct ratios and connections for the SYN5201 inputs.
• Precautions:
  1. Complex System Engineering: Implementing synchronization requires a thorough understanding of power systems, drive control, and protection coordination. It should be designed by qualified system engineers.
  2. Protection Overrides: The synchronization process temporarily overrides normal motor starting protections. Ensure that other critical protections (differential, earth fault) remain active and that the synchronization logic has comprehensive interlocks and fallback timers.
  3. Accurate Signal Conditioning: The quality of the VT signals is paramount. Any phase shift, distortion, or noise in these signals can cause the SYN5201 to miscalculate the phase angle, leading to a faulty or aborted synchronization attempt.
  4. Commissioning and Testing: Thorough testing is essential. This includes testing the synchronization logic without actual closing (dry testing) and then carefully testing the live transfer under controlled conditions. Use built-in diagnostics and recording tools.
  5. Expert Configuration and Support: Configuration of the ABB SYN5201 parameters is critical and complex. It should be performed by ABB-certified drive engineers. Source the module through authorized ABB channels to ensure correct firmware and access to necessary technical documentation and support.
