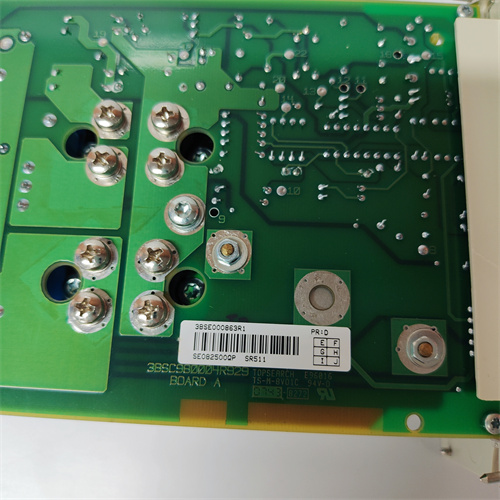

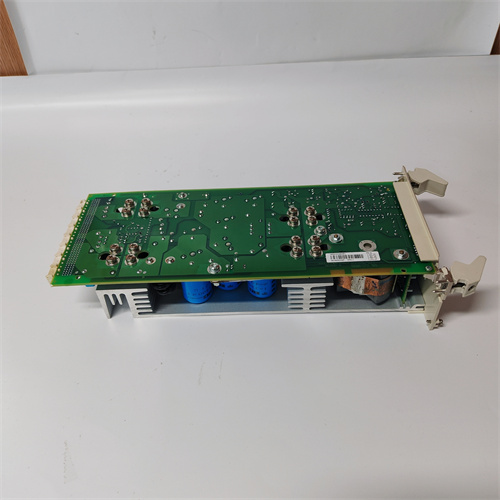

ABB SR511 3BSE000863R1 I/O Module

Product Description

The ABB SR511 3BSE000863R1 is a versatile digital input/output (I/O) module from ABB’s extensive S800 I/O family, a core component of their industrial automation systems. This module provides flexible interfacing capabilities, allowing the connection of various field devices like push buttons, limit switches, solenoids, and indicator lamps directly to the central control system. As part of the ABB Advant/AC 800M and S800 Station architecture, the ABB SR511 plays a crucial role in bridging discrete control signals between the physical process and the digital controller. Its robust construction and reliable performance are engineered for continuous operation in demanding industrial environments. For complete technical specifications and configuration details, refer to the official documentation: ABB SR511 3BSE000863R1. The integration of the SR511 3BSE000863R1 into an S800 I/O station expands the system’s capacity to handle essential on/off control and monitoring tasks efficiently. The specific ordering code “3BSE000863R1” uniquely identifies this hardware version, ensuring correct part identification for procurement and compatibility.

Product Parameters

• Product Model: ABB SR511 3BSE000863R1
• Series: ABB S800 I/O.
• Module Type: Digital Input/Output (Mixed I/O) Module.
• Channel Configuration: Typically features a combination of digital inputs (DIs) and digital outputs (DOs) in a single module, such as 8 inputs and 8 outputs.
• Input Specifications:
  • Type: Sinking or sourcing, 24V DC.
  • Isolation: Typically group or channel-to-channel isolation.
• Output Specifications:
  • Type: Typically transistor outputs (sourcing or sinking) for 24V DC loads.
  • Current Rating: Per point (e.g., 0.5A) and total module maximum.
• Communication: Connects to the controller via the internal S800 I/O bus, which interfaces through a Communication Interface (CI) module like for Profibus DP or Foundation Fieldbus.
• Diagnostics: Includes LED status indicators per channel or group for quick visual identification of channel state and faults.
• Mounting: Plugs into a designated slot on an S800 I/O station baseplate.

Advantages and Features

• Space-Efficient Design: Combining inputs and outputs in one module optimizes space usage in the I/O station, allowing for a higher density of points per rack and reducing hardware footprint.
• Flexible Configuration: The mixed I/O design provides flexibility for machine or skid control where a balanced number of sensors and actuators are required in a localized area.
• High Reliability: Built with industrial-grade components, it offers excellent noise immunity, protection against voltage transients, and is designed for long-term, maintenance-free operation.
• Seamless System Integration: As a native S800 module, the SR511 3BSE000863R1 is fully supported by ABB’s engineering tools (e.g., Control Builder), allowing for easy configuration, parameterization, and integration into the control strategy.
• Clear Diagnostics: Per-channel or group LED indicators provide immediate visual feedback on the status of connected field devices, significantly speeding up commissioning and troubleshooting.

Application Cases in Various Fields

• Material Handling: Controls and monitors conveyor sections, palletizers, and sorting gates, where inputs read sensor status (photo-eye, limit switch) and outputs command motor starters and divertor solenoids.
• Packaging Lines: Manages the discrete sequence of a filling or capping machine, using inputs from bottle presence sensors and outputs to control actuators, valves, and conveyor drives.
• Water Treatment Plants: Interfaces with motorized valves and pumps, using inputs for valve position feedback (open/closed limit switches) and outputs to start/stop pumps and command valve actuation.
• Automated Assembly Stations: Integrates into robotic work cells to read tool status and part presence sensors while controlling grippers, clamps, and pneumatic cylinders.

Comparison with Competing Products

The ABB SR511 3BSE000863R1 competes with mixed digital I/O modules from other major automation suppliers like Siemens (ET 200S) and Rockwell Automation (Point I/O). Its primary strength is its optimal performance and engineering efficiency within the ABB S800 and AC 800M ecosystem. Compared to using separate dedicated input and output modules, the SR511 offers cost and space savings for applications with balanced I/O needs. Against generic or low-cost I/O modules, it provides superior build quality, integrated diagnostics, and the reliability required for critical process and discrete manufacturing applications. The specific identification via the full ordering code ensures compatibility that generic modules cannot guarantee.

Selection Suggestions and Precautions

1. System Compatibility Verification: Crucially, confirm that the ABB SR511 3BSE000863R1 is compatible with your specific S800 I/O station baseplate, communication interface module (CI type), and controller software version.
2. I/O Mix and Load Verification: Carefully assess your application to ensure the number of inputs and outputs on this mixed module matches your needs. For outputs, calculate the total current draw of all connected loads to ensure it does not exceed the module’s total output current rating.
3. Sourcing vs. Sinking: Verify the module’s specific input and output circuit type (sourcing or sinking) and ensure your field device wiring is designed correctly to match. Incorrect wiring can prevent operation or damage the module.
4. Fused Protection: For digital outputs, especially those driving inductive loads like solenoids or relays, always use external fuses or circuit breakers for individual load protection. Consider using flyback diodes for DC inductive loads.
