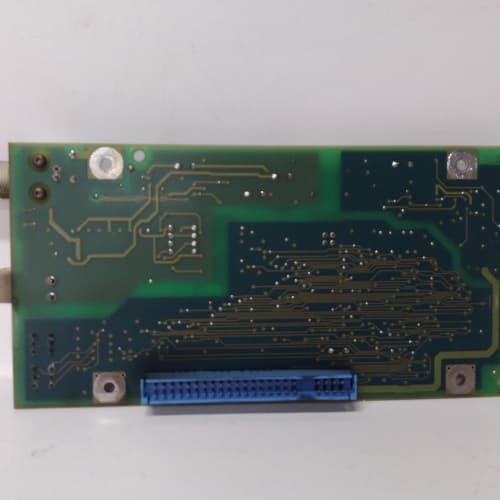

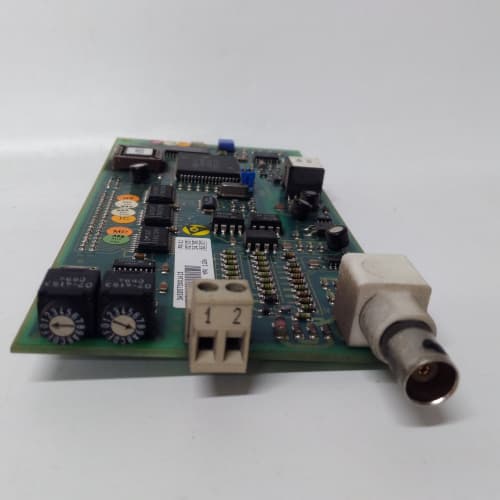

ABB SE96920414 YPK112A

Description

Product Description

The ABB SE96920414 YPK112A is a specialized control and interface module, most likely a Thyristor Firing Board or Power Controller Interface Module from ABB’s extensive range of industrial power control products. This module, identifiable by its composite part numbers, is designed to serve as the intelligent interface between a higher-level control system (like a PLC or DCS) and the power semiconductors (thyristors or SCRs) in applications such as voltage controllers, soft starters, or precise heating control systems. The SE96920414 YPK112A generates the precisely timed pulse trains needed to trigger the thyristors, manages synchronization with the mains voltage, and provides closed-loop regulation based on feedback signals (e.g., current, temperature). Its robust design ensures reliable operation in electrically noisy environments common to power conversion equipment. The ABB YPK112A module is a critical component for achieving accurate and efficient power control in various industrial processes.

Product Parameters

• Module Type: Thyristor Firing / Power Controller Interface Board
• Typical Application: Phase-angle control for AC voltage/current regulation in heaters, motor soft starters, or lighting controls.
• Control Input: Accepts a standard analog control signal (e.g., 4-20 mA, 0-10V DC) or a digital communication command (e.g., via serial interface) representing the desired output level.
• Output Signals: Generates isolated, high-current gate pulse trains for firing multiple thyristors in single or three-phase configurations.
• Synchronization: Requires connection to the mains supply voltage (e.g., 110V AC, 230V AC) for precise phase-locked firing.
• Feedback Inputs: May include inputs for current transformer (CT) signals or temperature sensors for closed-loop control and protection.
• Protection Features: Typically includes diagnostics for sync loss, pulse failure, overcurrent, and overtemperature.
• Communication: May include configuration ports or basic communication interfaces for setup and monitoring.
• Power Supply: Has internal power supply circuitry, typically powered from the control voltage or a separate auxiliary supply.
• Mounting: Designed as a printed circuit board for mounting inside the power controller cabinet.

Advantages and Features

• Precise and Stable Control: The ABB SE96920414 YPK112A enables accurate phase-angle firing of thyristors, allowing for smooth and linear control of power to the load, which is essential for process stability and energy efficiency.
• Excellent Noise Immunity: Designed with optical isolation and robust circuitry to operate reliably in the high-electrical-noise environment of power switching cabinets, preventing false triggering or malfunctions.
• Integrated Diagnostics and Protection: Built-in monitoring of sync signal, gate pulses, and load conditions helps prevent thyristor failure due to misfiring or overloads, enhancing system reliability and reducing downtime.
• Flexible Configuration: Often allows configuration of parameters like control characteristic (linear, squared), current limit, and soft-start ramps to match the specific application (heating, motor starting, etc.).
• Proven Design and Reliability: As part of ABB’s power control portfolio, this module benefits from extensive field experience and is built with industrial-grade components for long-term operation.

Application Cases in Various Fields

• Industrial Heating: Controlling the power to electric furnaces, ceramic kilns, or industrial ovens in metals, glass, and chemical processing.
• Motor Soft Starting: Used as the core control board in ABB soft starters (like the PSR series) to provide smooth acceleration and deceleration for pumps, fans, and compressors.
• Lighting Control: Regulating the intensity of large incandescent or halogen lighting systems in stages, theaters, or sports arenas.
• Electrochemical Processes: Providing controlled DC power through thyristor bridges for electrolysis or plating applications.
• Test Benches: Used in power supplies for variable AC loads in testing environments.

Comparisons with Competing Products

1. Vs. Generic Thyristor Trigger Modules: Generic or simple trigger modules may provide basic firing but lack the integrated closed-loop control, comprehensive diagnostics, and application-specific tuning that the ABB SE96920414 YPK112A offers. The ABB module is an engineered solution for reliable system integration.
2. Vs. Digital Power Controllers (with IGBTs): Modern controllers using IGBTs and PWM offer different performance characteristics (higher switching frequency). The YPK112A based on thyristors is often favored for its simplicity, robustness, and cost-effectiveness in high-current, lower-frequency applications like heating and soft starting.
3. Vs. Other OEM Power Control Boards (e.g., Siemens, Eurotherm): Competing manufacturers have similar boards for their controllers. The ABB YPK112A is optimized for ABB’s thyristor power stacks and overall system design. Its advantage lies in guaranteed compatibility and performance when used with other ABB components.
4. Key Differentiator: It is a specialized, application-optimized interface that bridges the gap between the low-voltage control world and high-power switching, with built-in intelligence for protection and regulation.

Selection Suggestions and Precautions

1. Exact Replacement Part: This is highly likely a spare part. The full part number SE96920414 YPK112A must be matched exactly. Even minor differences can indicate a different voltage rating, phase configuration, or firmware version critical for compatibility with the existing power stack.
2. Verify System Compatibility: Confirm the module is designed for your specific power controller model (e.g., ABB PSR, PST series) and the thyristor module it drives. Check voltage ratings (mains sync voltage, control voltage) and thyristor configuration (single-phase, three-phase).
3. Mains Synchronization is Critical: The sync voltage connection must be from the same phase(s) as the power being controlled and must be stable. Incorrect or lost sync will cause control failure and could damage the load or thyristors.
4. Control Signal Matching: Ensure the control input signal type (4-20mA, 0-10V) and range match the configuration of the YPK112A module. Incorrect scaling will lead to improper power output.
5. High Voltage/Current Hazard: Installation and testing involve working near high voltage and high current. Only qualified personnel should perform this work following appropriate lockout/tagout (LOTO) and electrical safety procedures.
6. Configuration and Calibration: After replacement, the module may require configuration (e.g., setting current limits, control mode) and possibly calibration using potentiometers or software tools to ensure accurate control response.
7. Thermal Management: Ensure the module is installed in a well-ventilated area of the cabinet and that any heatsinks on associated thyristors are clean and properly seated. Overheating is a common cause of failure.
8. Source from Authorized Suppliers: To ensure authenticity and correct functionality, procure this specialized module from ABB or an authorized industrial automation distributor.
