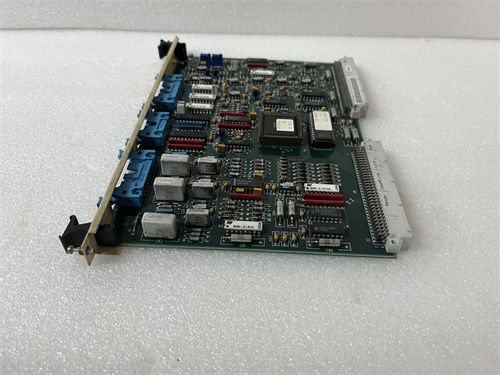

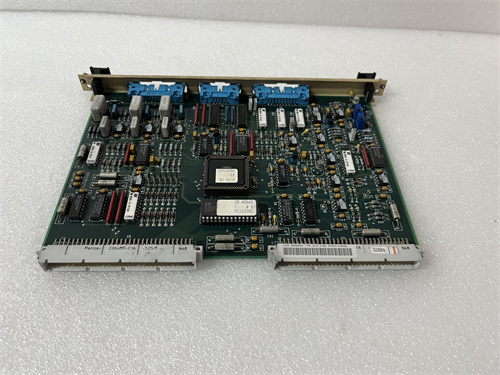

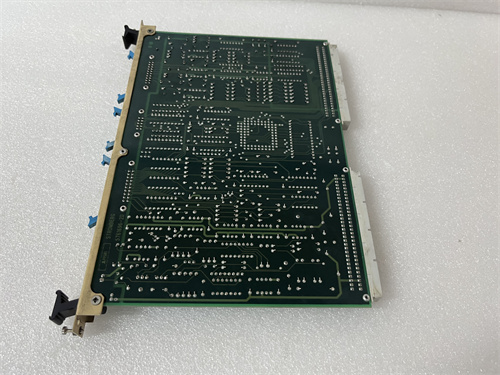

ABB SCYC51020 58052582G

Description

Product Description

The ABB SCYC51020 58052582G is a specialized Fiber Optic Communication Module from ABB’s comprehensive range of automation components, primarily designed for their ACS 6000 medium-voltage drive series and other high-power applications. This module, often referred to as an Optical Fiber Interface Board or Firing Interface Module, serves as a critical communication and isolation link between the drive’s main control unit and the gate driver units of the Insulated Gate Bipolar Transistor (IGBT) power stacks. The core function of the ABB SCYC51020 is to convert electrical control signals into optical pulses and transmit them via fiber optic cables to the power cells or IGBT drivers, and vice-versa for feedback signals. This optical isolation is essential for noise immunity, safety, and reliable signal transmission in the high-voltage, high-electromagnetic-noise environment of a drive power section. The reliability and precision of the SCYC51020 58052582G are absolutely paramount for the precise firing and protection of the power semiconductors, where a fault can lead to catastrophic failure.

Product Parameters

• Manufacturer/Brand: ABB
• Product Type: Fiber Optic Communication / Firing Interface Module
• Primary Function: Electro-optical signal conversion for control and monitoring signals between drive controllers and power semiconductors.
• Communication Standard: Proprietary fiber optic protocol for real-time, deterministic communication within ABB drive architectures.
• Number of Channels: Contains multiple optical transceiver channels (e.g., for transmitting firing pulses to multiple IGBTs and receiving status feedback).
• Fiber Optic Connector Type: Typically uses ST, SMA, or other industrial fiber optic connectors.
• Wavelength: Commonly uses 820nm or 1300nm wavelength, multimode fiber.
• Isolation: Provides full galvanic isolation (thousands of volts) between the low-voltage control electronics and the high-voltage power stage, which is its primary safety and performance feature.
• Compatibility: Specifically designed for certain hardware generations and frame sizes of ABB ACS 6000 and other high-power drive systems. Must be matched exactly to the drive’s type code and configuration. The -G suffix denotes a specific hardware revision.
• Form Factor: A printed circuit board (PCB) designed to plug into a specific slot in the drive’s control cubicle or power unit.

Advantages and Features

• Critical Galvanic Isolation: The primary advantage of the ABB SCYC51020 is its use of fiber optics to create a complete electrical isolation barrier between the sensitive control circuitry and the lethal high-voltage power circuits, protecting personnel and equipment.
• Superior Noise Immunity: Fiber optic transmission is completely immune to electromagnetic interference (EMI), radio frequency interference (RFI), and ground loops, which are prevalent in drive environments. This ensures clean, error-free transmission of critical firing and feedback signals.
• High-Speed and Deterministic Performance: Enables the fast, precise transmission of PWM firing pulses and protective trip signals with minimal latency, which is crucial for the accurate and safe operation of IGBTs.
• Increased System Safety and Reliability: By replacing copper wiring in noisy, high-potential areas, the SCYC51020 58052582G eliminates risks of insulation breakdown and signal corruption, significantly enhancing overall system reliability.
• OEM Design Assurance and Compatibility: Using the genuine SCYC51020 58052582G guarantees perfect electrical and mechanical compatibility, maintaining the drive’s original performance specifications and safety certifications.

Application Cases in Key Fields

• Mining & Minerals (Grinding Mill Drives): A core component in the ACS 6000 drive powering a SAG or ball mill motor. The SCYC51020 ensures reliable communication between the control unit and the distributed power stacks. Failure of this module would cause an immediate and costly production halt.
• Metals (Rolling Mills): Found in the drive system for a main rolling mill stand. The module’s precise timing is critical for delivering the high torque and dynamic response needed for metal deformation.
• Oil & Gas (Pipeline Compression): Part of the drive controlling a high-power compressor motor on a gas pipeline. The reliability of this module is crucial for maintaining continuous flow and avoiding revenue loss.
• Marine Propulsion (Electric Drives): In electric propulsion systems for large vessels, the ABB SCYC51020 is a critical component within the main propulsion drive, where failure is not an option.

Comparisons with Competing Products

• Vs. Siemens Sinamics SM150 IGBT Driver Boards: For Siemens’ competing medium-voltage drive, equivalent proprietary interface boards exist. The ABB SCYC51020 is not interchangeable and represents ABB’s specific technological implementation for its IGBT gate drive architecture. The choice was made at the drive selection level.
• Vs. Third-Party or Aftermarket “Compatible” Boards: The market for aftermarket medium-voltage drive parts is risky. A non-genuine SCYC51020 board may lack the correct signal conditioning, noise immunity, or protective features, posing a severe risk of causing a major power stack failure. The cost of such a failure dwarfs the price difference for an OEM part.
• Vs. Lower-Voltage Drive Control Boards: Low-voltage drive control boards (e.g., for ACS880) are not comparable. The SCYC51020 operates in a much higher power and voltage environment with different isolation and safety requirements.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Exact OEM Replacement Only: This module must be sourced as an exact replacement using the full part number (58052582G) from the failed module or the drive’s official spare parts list. The suffix (e.g., -G vs -H) is critical and indicates a revision.
  2. Drive Identification is Mandatory: Have the complete ACS 6000 drive type designation, serial number, and frame size ready. Provide this to ABB or an authorized distributor for cross-referencing and confirmation.
  3. Source from Authorized Channels: Purchase only from ABB or its authorized heavy-duty drive service partners. Authenticity and traceability are non-negotiable for such a critical component.
• Precautions:
  1. Extreme Hazard – Lethal Voltages: Work inside a medium-voltage drive involves exposure to lethal voltages and stored energy. Replacement of the SCYC51020 module must only be performed by certified ABB field service engineers following strict safety procedures, including full isolation, grounding, and lockout/tagout (LOTO).
  2. Handle Fiber Optics with Care: The optical connectors and fiber ends are extremely sensitive to dust, scratches, and bending. Keep protective caps on when disconnected, clean connectors properly with approved tools, and avoid sharp bends in the fiber cables.
  3. Electrostatic Discharge (ESD): Handle the PCB as a static-sensitive device using proper ESD precautions.
  4. Root Cause Analysis: Failure of an optical interface module can be caused by a failing transmitter/receiver on a connected board, a damaged fiber cable, or an electrical surge. Investigate the connected components and cabling before installing the new ABB SCYC51020 to prevent immediate re-failure.
