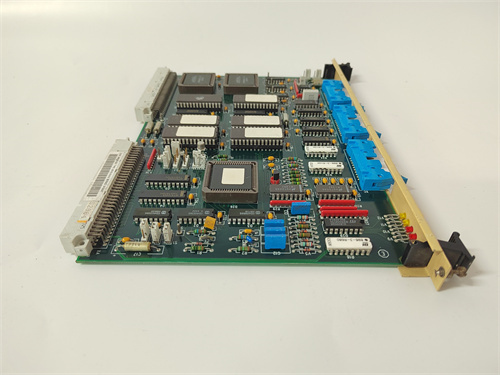

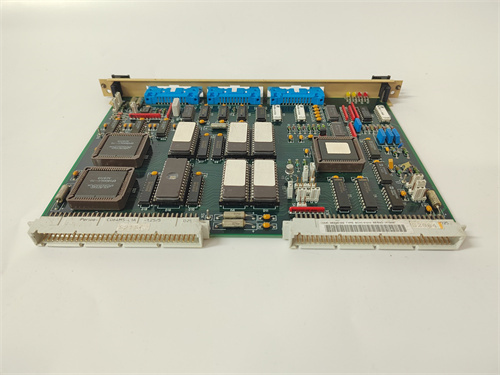

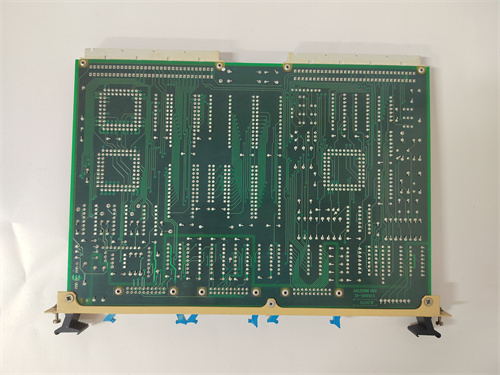

ABB SCYC51010 58052515G

Description

Product Description

The ABB SCYC51010 58052515G is a specialized turbine protection and overspeed detection module designed exclusively for ABB’s Procontrol P13 and P14 turbine control systems, widely deployed in steam and gas turbine generator applications in power generation and marine propulsion. This dedicated safety module provides independent, redundant overspeed protection functions entirely separate from the main turbine speed governing channel, meeting API 670 and ISO 10438 requirements for machinery protection systems. The ABB SCYC51010 58052515G accepts inputs from magnetic pickups or proximity probes mounted on turbine shafts, continuously monitoring rotational speed against multiple programmable setpoints for alarm, trip, and pre-emergency warning functions. Engineered for fail-safe operation, the module incorporates watchdog timers, input signal validation, and output relay force-verification circuitry. The ABB SCYC51010 58052515G interfaces directly with Procontrol system backplanes and communicates turbine speed status to the main control system while maintaining complete independence of its protection functions.

Product Parameters

• Model: ABB SCYC51010 58052515G
• Module Type: Turbine Overspeed Protection, Triple Redundant
• Input Channels: 3 independent speed sensor inputs
• Sensor Type: Magnetic pickup (MPU) or eddy current proximity probe
• Input Frequency: 0.5 Hz to 15 kHz
• Input Voltage: 50 mV to 50 V RMS
• Measurement Accuracy: ±0.1% of reading
• Setpoints: 3 programmable trip levels per channel (alarm, pre-trip, overspeed)
• Response Time: < 20 ms from overspeed condition to relay output
• Outputs: 6 x Form C relays (2 per channel), 5 A @ 250 V AC / 30 V DC
• Voting Logic: 1oo3, 2oo3, or 3oo3 configurable
• Diagnostics: Continuous self-test, sensor health monitoring, relay contact verification
• Indicators: Per-channel speed LED, trip status LED, module healthy LED, power LED
• Communication: Procontrol backplane interface, analog speed output (0–10 V, 4–20 mA)
• Power Supply: 24 V DC or 48 V DC (module specific variant)
• Operating Temperature: 0°C to 55°C
• Certifications: CE, UL, CSA, ATEX Zone 2, API 670 compliant, marine type approval

Advantages and Features

The ABB SCYC51010 58052515G delivers unparalleled safety integrity through its triple redundant architecture, where three independent measurement channels operate in parallel with hardware-based majority voting to prevent both nuisance trips and undetected dangerous failures. Unlike general-purpose programmable relays or PLC-based speed switches, the ABB SCYC51010 58052515G incorporates overspeed-specific algorithms including rate-of-change detection, acceleration monitoring, and zero-speed validation. The module’s continuous self-test routine exercises all critical circuitry including input amplifiers, analog-to-digital converters, and output relays without interrupting protection availability. Dedicated sensor health monitoring detects open circuits, short circuits, and signal degradation, automatically isolating failed channels while maintaining protection integrity through remaining healthy channels. The ABB SCYC51010 58052515G features independent trip setpoints per channel with hysteresis adjustment, enabling precise coordination with turbine start-up, normal operation, and emergency shutdown sequences. Comprehensive sequence of events recording captures 100 time-stamped events with 1 ms resolution for post-incident analysis. The module’s galvanically isolated inputs eliminate ground loop interference common in turbine generator environments with multiple grounding points.

Application Cases in Application Fields

• Steam Turbine Generators: Deployed on 600 MW coal-fired turbine-generators, the ABB SCYC51010 58052515G provides API 670 compliant overspeed protection with 2oo3 voting logic, eliminating spurious trips while ensuring positive shutdown within 20 ms of overspeed condition detection.
• Gas Turbine Power Plants: Installed on Frame 9FA gas turbines in combined cycle facilities, this module monitors three independent speed probes, with the ABB SCYC51010 58052515G‘s acceleration algorithms detecting uncontrolled fuel addition events before overspeed setpoint is reached.
• Marine Propulsion: Utilized on naval vessel main propulsion steam turbines, the ABB SCYC51010 58052515G provides MIL-SPEC compliant overspeed protection, its triple modular architecture ensuring mission-critical availability during combat operations.
• Geothermal Power: Applied on binary cycle geothermal turbines operating with variable inlet conditions, the ABB SCYC51010 58052515G accommodates wide speed ranges while maintaining oversight of low-speed pre-trip alarms for preventive operator action.
• Industrial Cogeneration: Implemented in paper mill extraction steam turbines, this module operates independently of turbine governor, with the ABB SCYC51010 58052515G‘s separate power supply and sensor inputs providing true diversity from control system components.

Comparison with Competing Products

The ABB SCYC51010 58052515G represents the optimal overspeed protection solution specifically engineered for ABB’s Procontrol installed base, offering seamless mechanical and electrical replacement without control system modification. Woodward’s ProTech 203, while technically superior in some aspects, requires extensive engineering integration with Procontrol systems including custom I/O mapping and setpoint management interfaces. Siemens 7MM12 provides lower channel redundancy and lacks proximity probe compatibility, limiting application flexibility. The ABB SCYC51010 58052515G‘s configurable voting logic (1oo3, 2oo3, 3oo3) provides unique operational flexibility, enabling facilities to balance safety integrity against availability requirements based on turbine criticality and grid conditions.

Selection Suggestions and Precautions

• System Compatibility Verification: Confirm that your Procontrol system version supports the ABB SCYC51010 58052515G; P13 and P14 systems are compatible, while older P12 systems may require backplane upgrade or gateway module installation.
• Sensor Selection: The ABB SCYC51010 58052515G accepts magnetic pickup (MPU) or eddy current proximity probe inputs; verify that selected sensors provide adequate output voltage at minimum turbine cranking speed (typically > 1 V RMS for MPU).
• Voting Logic Configuration: For baseload utility turbines where nuisance trips represent significant economic impact, configure ABB SCYC51010 58052515G for 2oo3 voting; for industrial turbines with lower trip consequences, 1oo3 provides maximum safety integrity.
• Setpoint Programming: Program overspeed trip setpoint at 110% of rated speed (typical) with 2% hysteresis; coordinate pre-trip alarm setpoints (105–108%) with operator procedures to enable manual intervention before automatic trip.
• Relay Output Verification: The ABB SCYC51010 58052515G performs automatic relay contact verification during turbine operation; confirm that trip circuit design accommodates momentary test pulses without de-energizing critical loads.
• Cable Shielding Requirements: Use continuous braided shield instrumentation cable for ABB SCYC51010 58052515G sensor inputs, grounded at single point in control cabinet; turbine casing grounds create ground loops degrading measurement accuracy.
• Spare Parts Strategy: Given the ABB SCYC51010 58052515G‘s critical role in turbine overspeed protection and Procontrol’s mature product status, maintain fully configured hot-spare module for each turbine installation with annual functional testing.
• Obsolescence Management: ABB has designated Procontrol technology as “Classic” status; facilities planning 10+ year operating horizons should evaluate Symphony Plus or 800xA turbine control migration paths while maintaining adequate ABB SCYC51010 58052515G spares for interim reliability.
• Environmental Installation: Mount the ABB SCYC51010 58052515G in clean, vibration-free environment; turbine deck mounting requires additional isolation or remote location in separate protection cabinet.
• Proof Testing: Conduct annual overspeed protection proof testing using secondary injection test equipment; the ABB SCYC51010 58052515G supports test mode operation with trip outputs inhibited for functional validation without turbine overspeed.
• Documentation Requirements: Maintain site-specific ABB SCYC51010 58052515G configuration records including setpoint values, voting logic selection, and sensor calibration certificates; these records are required for regulatory compliance and insurance surveys.
• Firmware Revision: Verify ABB SCYC51010 58052515G firmware revision supports your specific turbine application; revision 2.0 and above includes enhanced acceleration algorithms for fast-start gas turbine applications.
• Battery Maintenance: The ABB SCYC51010 58052515G contains lithium battery maintaining event recorder memory; schedule battery replacement every 5 years during planned turbine outages to prevent loss of sequence of events data.
