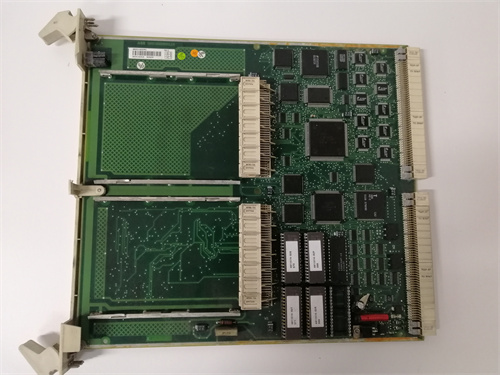

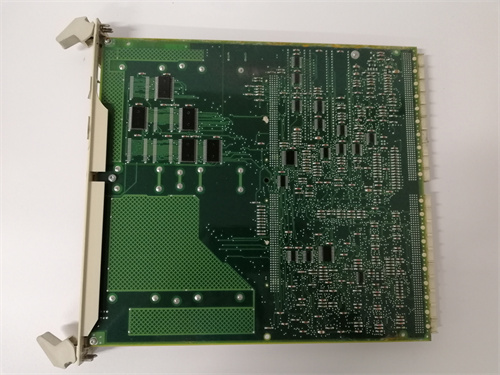

ABB SC520M 3BSE016237R1

Description

dav

Product Overview and Description

The ABB SC520M 3BSE016237R1 is a powerful processor module (CPU) designed for use in ABB’s Advant Controller 520 series, a key component of the Advant OCS (Open Control System) and a predecessor to modern systems like 800xA. This device, identified by the model SC520M and ordering code 3BSE016237R1, serves as the central processing unit for the controller, executing application programs, handling I/O communication, and managing network interfaces. The ABB SC520M 3BSE016237R1 was widely deployed in process industries for continuous and batch control applications, providing reliable and deterministic control.

The SC520M module is designed for operation in industrial environments and features a robust architecture with redundancy support. It combines a powerful processor, onboard memory, and multiple communication interfaces. The use of the ABB SC520M 3BSE016237R1 ensures stable and reliable control of critical processes in industries such as pulp and paper, chemicals, mining, and metals, forming the brain of the automation system.

Technical Parameters

Based on the analysis of ABB Advant Controller 520 series documentation, the ABB SC520M 3BSE016237R1 possesses the following key characteristics:

• Device Type: Processor Module (CPU) for Advant Controller 520.
• Processor: High-performance 32-bit RISC processor optimized for real-time control.
• Memory:
  • Program memory for application code (typically several MB).
  • Data memory for process variables and system data.
  • Retentive memory for critical data on power loss.
• Communication Interfaces:
  • MasterBus 300 (MB300) interface for communication with other controllers and I/O stations.
  • Serial interfaces (RS-232) for local configuration and operator panels.
  • Support for fieldbus communication via additional modules.
• I/O Capacity: Capable of handling thousands of I/O points distributed across multiple I/O racks.
• Execution Speed: Fast execution of control logic, including PID loops, sequencing, and interlocking.
• Redundancy Support: Designed for 1:1 hot-standby redundancy for high-availability applications.
• Diagnostics: Extensive self-diagnostics with status LEDs for processor health, communication activity, and fault indication.
• Battery Backup: Battery-backed real-time clock and memory retention.
• Mounting: Installs into a specific slot in the Advant Controller 520 rack.
• Part Numbers: ABB SC520M 3BSE016237R1 is the complete identification, with 3BSE016237R1 being the primary ordering code.

Advantages and Key Features

The ABB SC520M 3BSE016237R1 offers several key advantages for process automation:

• Proven Reliability: The Advant Controller 520 series, including the SC520M, has a long history of reliable operation in thousands of installations worldwide, earning a reputation for stability and robustness.
• Redundancy Capability: For critical applications requiring maximum uptime, the ABB SC520M 3BSE016237R1 supports hot-standby redundancy. Two processors work in parallel, with the standby taking over instantly if the primary fails.
• Deterministic Performance: The real-time operating system ensures predictable execution of control tasks, essential for time-critical processes and safety interlocks.
• Comprehensive I/O Support: The SC520M interfaces seamlessly with ABB’s S500 I/O and other I/O families, providing flexible and scalable I/O solutions for any process size.
• Integration with Advant OCS: As a core component of the Advant OCS, the ABB SC520M 3BSE016237R1 integrates perfectly with operator stations, engineering workstations, and plant networks.

Application Cases in Key Industries

The ABB SC520M 3BSE016237R1 has been deployed in numerous industrial applications:

• Pulp and Paper: The SC520M controls complex paper machines, pulp digesters, and bleaching plants, managing thousands of I/O points and coordinating multiple process sections.
• Chemical Processing: In chemical plants, the module runs batch control recipes, continuous process control loops, and safety interlocks for reactors and distillation columns.
• Mining and Minerals Processing: The ABB SC520M 3BSE016237R1 controls crushing circuits, grinding mills, flotation cells, and thickeners in mineral processing plants.
• Metals Production: In steel and aluminum plants, the processor manages furnace controls, casting machines, and rolling mill auxiliaries.
• Water and Wastewater: The SC520M automates large treatment plants, controlling pumps, valves, and filtration systems across distributed sites.

Comparison with Competitors

In the DCS controller market of its era, ABB’s primary competitors were Siemens (S5/S7), Honeywell (TPS), and Yokogawa (CENTUM).

• ABB SC520M 3BSE016237R1 vs. Siemens S5/S7: Siemens offered robust controllers. The SC520M was part of ABB’s integrated DCS solution, providing tighter integration with ABB’s I/O and engineering tools compared to Siemens’ more general-purpose PLC approach.
• ABB SC520M 3BSE016237R1 vs. Honeywell TPS: Honeywell’s TPS was strong in refineries. The SC520M competed effectively in pulp and paper, mining, and other process industries where ABB had strong domain expertise.
• ABB SC520M 3BSE016237R1 vs. Yokogawa CENTUM: Yokogawa’s CENTUM was a strong competitor. The SC520M offered comparable reliability and performance, with advantages in applications where ABB’s specific I/O and engineering tools were preferred.

Selection Recommendations and Precautions

1. System Compatibility: The ABB SC520M 3BSE016237R1 is designed for specific Advant Controller 520 racks and power supplies. Verify compatibility with your existing system hardware and backplane.
2. Firmware Revision: Check the firmware version of the SC520M. It must be compatible with your engineering software (e.g., Advant Engineering Station) and the applications you intend to run.
3. Redundancy Configuration: If using redundant processors, ensure both ABB SC520M 3BSE016237R1 modules have matching firmware and hardware revisions for proper synchronization.
4. Battery Maintenance: The module uses a battery to maintain memory and the real-time clock. Check and replace the battery according to ABB’s recommended schedule to prevent data loss.
5. ESD Precautions: The ABB SC520M 3BSE016237R1 contains sensitive electronic components. Always follow strict Electrostatic Discharge (ESD) precautions when handling, installing, or removing the module.
