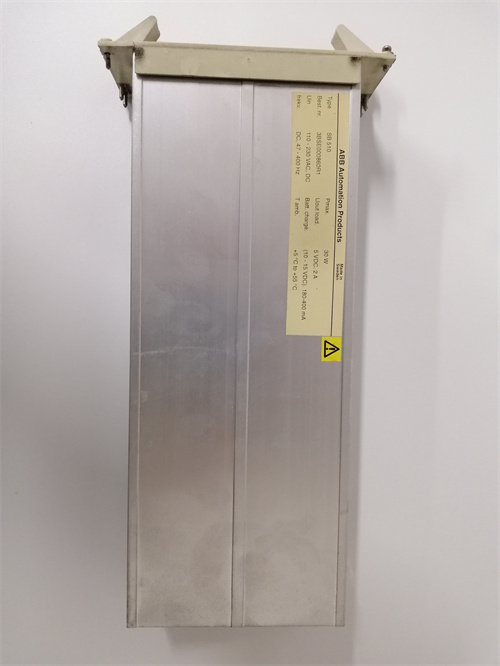

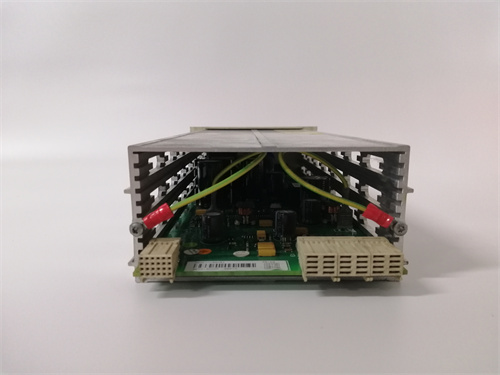

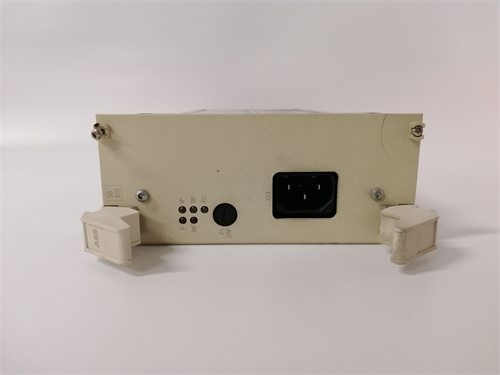

ABB SB510 3BSE000861R1

Product Description

The ABB SB510 (order code 3BSE000861R1) is a critical Fieldbus Communication Interface Module, specifically a PROFIBUS DP Slave module, for the S100 I/O system within ABB’s Advant Controller (AC) 400 Series. This module serves as a dedicated communication gateway that allows a cluster of S100 I/O modules to integrate seamlessly into a plant-wide PROFIBUS DP network. The primary function of the ABB SB510 is to act as a slave device on the PROFIBUS DP fieldbus, enabling a remote master controller (such as a PLC or DCS from ABB, Siemens, or other vendors) to read input data from and write output data to the connected S100 I/O modules. By deploying the SB510, engineers can create distributed, cost-effective I/O stations that reduce long wiring runs back to a central cabinet, leveraging the high-speed, deterministic data exchange of the PROFIBUS DP standard.

Technical Parameters and Specifications

• System Compatibility: ABB Advant Controller AC 400 Series, S100 I/O System.
• Module Type: PROFIBUS DP Slave Communication Interface.
• Protocol: PROFIBUS DP (Decentralized Periphery) in accordance with EN 50170, acting as a DP-Slave.
• PROFIBUS Interface: Standard 9-pin D-sub connector (following PROFIBUS guidelines).
• Data Exchange: Manages cyclic exchange of I/O data between the master and the S100 I/O base. The data size is configurable (e.g., up to 244 bytes input and 244 bytes output).
• PROFIBUS Address: Set via rotary switches or DIP switches on the module (typically address range 1-126).
• Baud Rate: Auto-baud detection or configurable, supporting standard rates from 9.6 kbit/s up to 12 Mbit/s.
• Connection to S100 I/O: Plugs into the S100 base unit and communicates with other I/O modules (digital, analog) via the internal base backplane.
• Diagnostics: Features status LEDs for power, module fault, and PROFIBUS network activity (Rx/Tx). Diagnostic information is accessible via the PROFIBUS master.
• Configuration: Requires a GSD (Gerätestammdatei) file for configuration in the master’s engineering software (e.g., Siemens STEP 7, ABB Control Builder). The GSD file defines the module’s I/O data structure.
• Power Supply: Powered from the S100 I/O base backplane.

Advantages and Key Features

• Cost-Effective Remote I/O Solution: The ABB SB510 enables the creation of distributed I/O stations at a lower cost compared to extending the main controller’s I/O bus over long distances, making it ideal for spreading I/O points across a large plant.
• Vendor-Independent Connectivity: As a standard PROFIBUS DP slave, it can communicate with any PROFIBUS DP master from any manufacturer (Siemens, ABB, etc.), providing excellent flexibility for multi-vendor environments and system integration.
• High-Speed and Deterministic Performance: PROFIBUS DP provides fast, predictable data exchange, suitable for real-time control applications where timing is critical.
• Simplified Wiring and Reduced Costs: By replacing hundreds of individual wires with a single PROFIBUS DP cable, the SB510 drastically reduces installation material, labor, and cabinet space requirements.
• Reliable and Robust Design: Built to ABB’s industrial standards, it offers reliable operation in harsh environments, and its integrated diagnostics aid in quick troubleshooting of network or station issues.

Application Cases in Various Fields

• Manufacturing Plant (Conveyor Systems): Multiple S100 stations with SB510 modules are placed along a long assembly line. A central PLC (e.g., Siemens S7-300) acts as the PROFIBUS master, controlling motors and reading sensors at each station via the SB510 interface.
• Water Treatment Plant: Remote S100 I/O panels with ABB SB510 modules are installed near filter beds and pump houses. They collect local sensor data (level, flow, pressure) and control valves, communicating back to the main control room DCS over PROFIBUS DP.
• Packaging Machinery: An S100 station with a SB510 serves as a local I/O hub for a packaging machine, interfacing with photoelectric sensors, solenoid valves, and encoders, and exchanging data with the machine’s main controller on the PROFIBUS network.
• Material Handling (Warehouse Automation): Used in distributed I/O boxes controlling sorters and diverters, where the SB510 provides a reliable network connection for fast control signals.

Comparison with Competing Products

Compared to other remote I/O PROFIBUS DP slave interfaces, such as those from Siemens (ET 200S/200M IM151/153 interfaces) or WAGO (750-3xx series), the ABB SB510 has specific characteristics:

• Ecosystem Specificity: Its primary advantage is seamless integration with the ABB S100 I/O system and AC 400 controllers. For an existing AC 400/S100 plant, the SB510 is the natural and optimized choice for adding PROFIBUS connectivity.
• Form Factor and Mounting: It is designed specifically for the S100 base unit form factor, which differs from the DIN-rail modular designs of Siemens ET200 or WAGO. This can be an advantage in cabinets standardized on ABB hardware.
• Configuration: Like competitors, it requires a GSD file. However, its predefined data mapping to S100 I/O modules might be more straightforward for engineers familiar with the ABB system compared to configuring a generic modular station.
• Performance: At comparable baud rates, the performance is similar to other quality PROFIBUS DP slave interfaces. The choice often comes down to the existing installed base and preference for the physical I/O modules (S100 vs. others).

Selection Suggestions and Precautions

1. Verify S100 Base Compatibility: Ensure the ABB SB510 module is compatible with your specific S100 I/O base unit model. Not all S100 bases support all communication modules.
2. Proper PROFIBUS Network Design: Design the PROFIBUS DP network correctly. Set a unique station address on the SB510 rotary switches. Ensure proper termination (active/passive) at both ends of the bus segment using terminating resistors. Use shielded, twisted-pair PROFIBUS cable.
3. GSD File Management: Obtain the correct GSD file for the SB510 (3BSE000861R1) from ABB’s website. Import this file into your master station’s configuration tool (e.g., Siemens STEP 7, TIA Portal) to properly configure the slave’s I/O data area.
4. I/O Data Area Configuration: In the master configuration, correctly define the input and output data lengths assigned to the SB510 station. This must match the total I/O point count and data types of the modules in the S100 base.
5. Address Mapping: Understand how the data from the S100 I/O modules maps into the PROFIBUS data words. Consult the SB510 manual for the mapping structure to ensure your master’s logic correctly interprets the incoming data and formats the outgoing commands.
6. Spare Parts and Obsolescence Note: The AC 400/S100 system is a mature platform. When procuring the ABB SB510, verify its availability and consider the long-term support strategy for your system. For new projects, ABB’s current generation (e.g., AC 800M with S800 I/O and CI871 PROFIBUS module) should be evaluated. Always source from authorized ABB distributors to ensure product authenticity.
